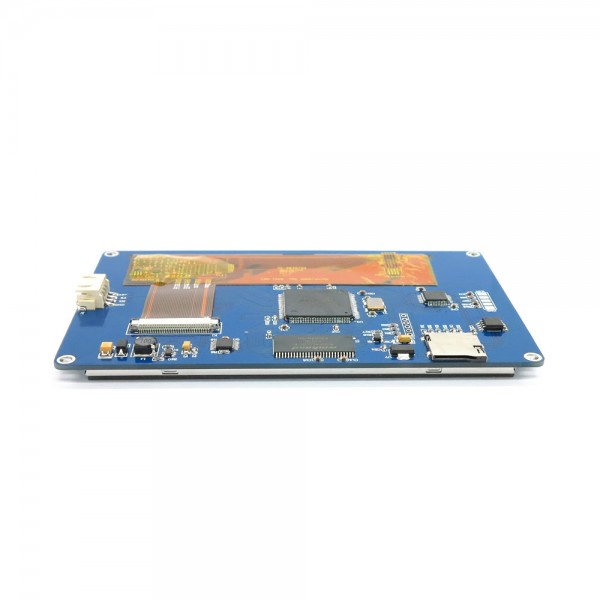

Nextion NX8048T050 HMI Display 5 Inch 800x480 with Touchscreen

Availability: Directly available from warehouse in Eindhoven
SKU: 001661

Based on 0 review(s) - Write a review

€78.00

Ex Tax: €64.46

10 or more €77.50

20 or more €77.00

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews

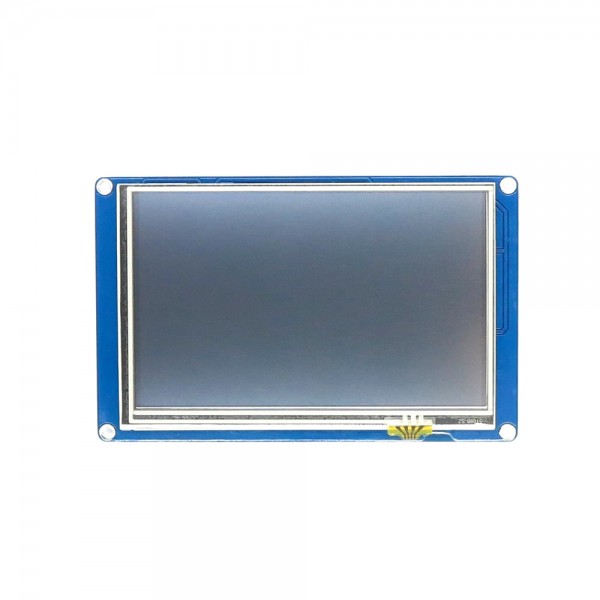

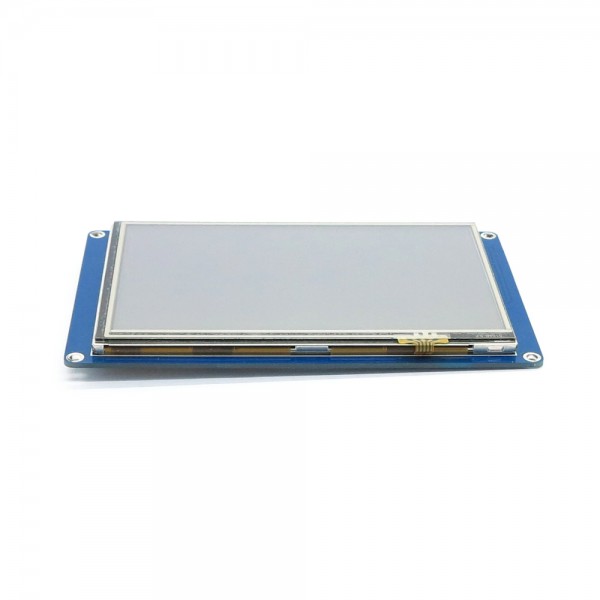

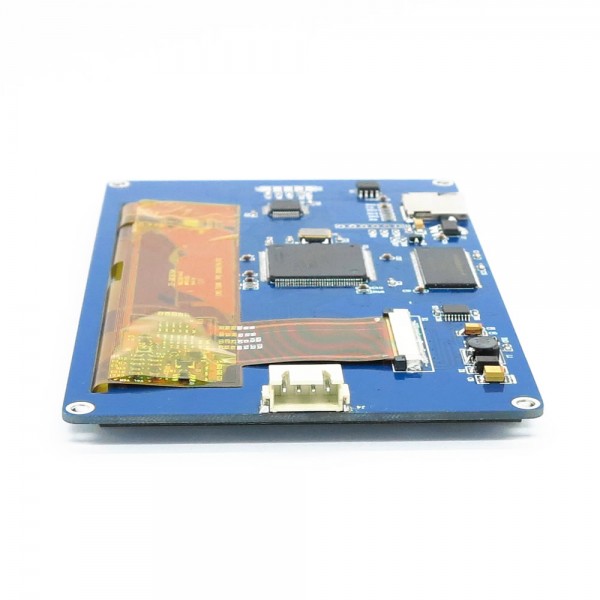

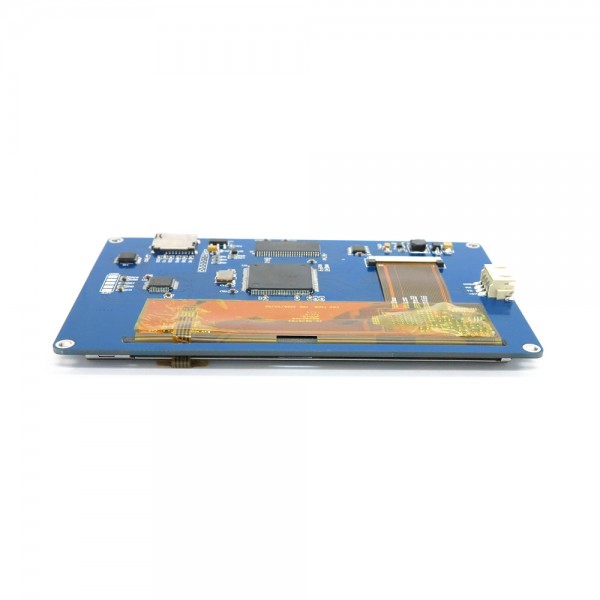

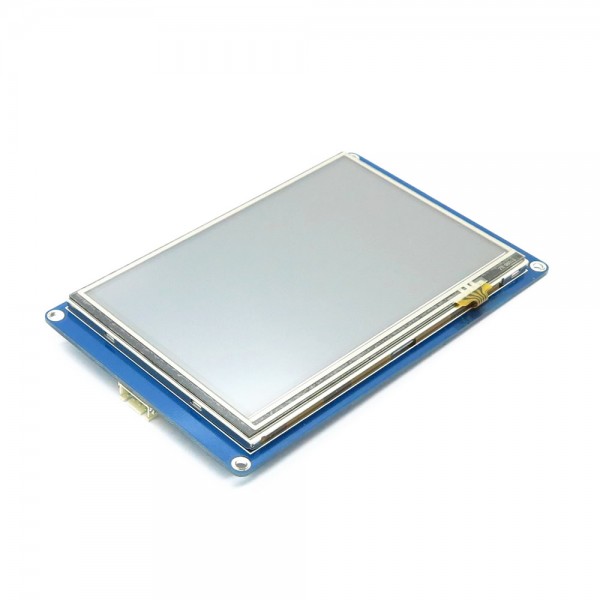

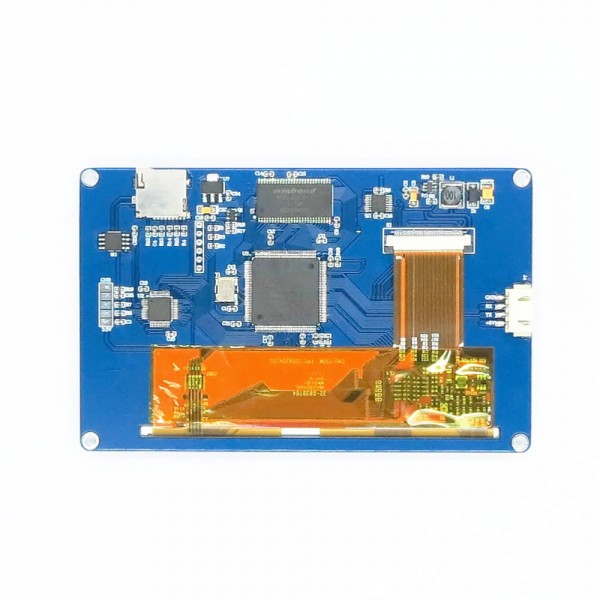

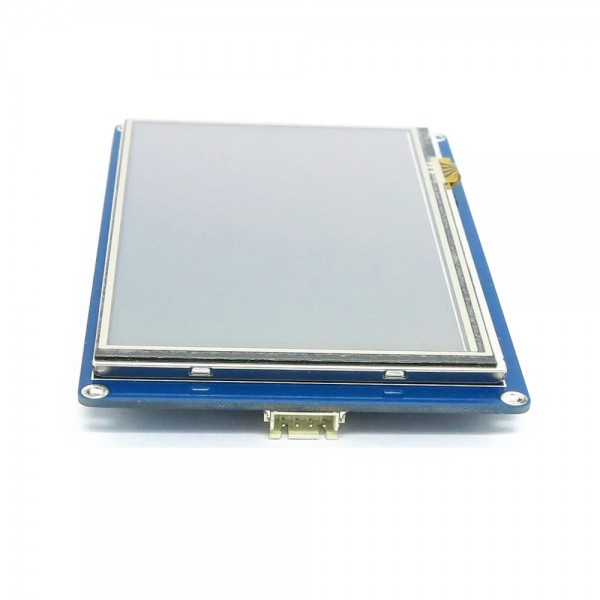

Complete HMI display with touchscreen. This screen can be controlled serially via a UART input. The graphical interface of this module can also be programmed via an SD card.

Determine how the screen looks and program the interface with the touchscreen yourself. For examples and library's, see this Github page.

Specifications:

Input voltage: 4.75 to 7V DC (5V DC recommended)
Input current: 410mA (max brightness), 15 mA (sleep mode). Recommended power: 5V 1000mA
Screen size: 5 inch
Screen resolution: 800x480 pixels
Screen brightness: 230 cd/m^2
Flash memory: 16MB
RAM memory: 3584 Byte
SD card slot, FAT32. Suitable for up to 32 GB SD card

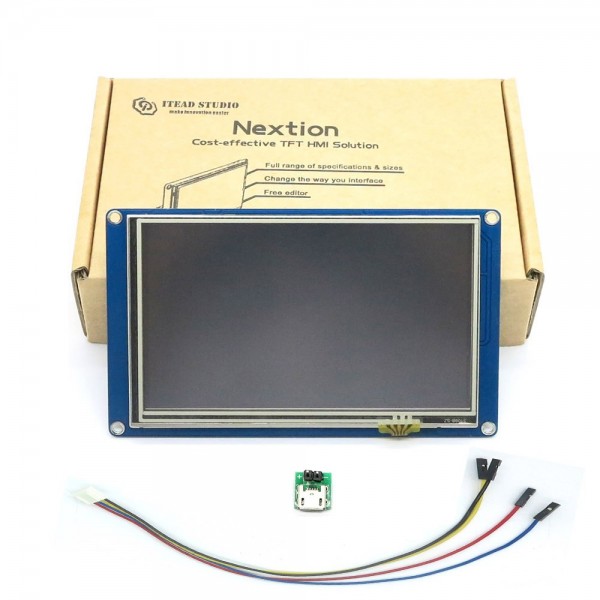

Micro USB power plug (adapter included)

For more information see the following page's: Datasheet, Nextion HMI Solution wiki and Itead Nextion.

Please login or register to review

Reviews Over Nextion NX8048T050 HMI Display 5 Inch 800x480 with Touchscreen

Average Rating:

This product has 0 review(s) in total.

Tags: Nextion NX8048T050 HMI Display 5 Inch 800x480 with Touchscreen , NX8048T050_011R , Nextion

Product FAQ

Can I power the device with an Arduino or other development board?

This is not possible in most cases. Most development boards (including Uno, Mega, NodeMCU, D1 Mini V3, etc.) have a diode between the 5V pin and the USB input that lowers the voltage. If the voltage from the 5V pin is lower than the required minimum of the device (see specifications) then it cannot function properly. In addition, many development boards can only provide little power. This can also cause it to malfunction. Using an insufficient power supply can even damage the device. Therefore, make sure that you use a suitable power supply and that it is connected correctly. It is advised to verify the supply voltage by measuring it.

The HMI is not functioning properly. What causes this?

In most cases, this is caused by insufficient power supply condition. Nextion HMIs require a good quality power supply. When the power supply provides too little current, has too low a voltage and/or generates too much ripple, several problems can arise, such as:

Flashing
Blurred screen
Freeze
Damage to the HMI

A good quality CE-approved power supply is required that can supply enough current and has the correct voltage. If necessary, measure the voltage directly on the Vcc and GND pins of the HMI.
