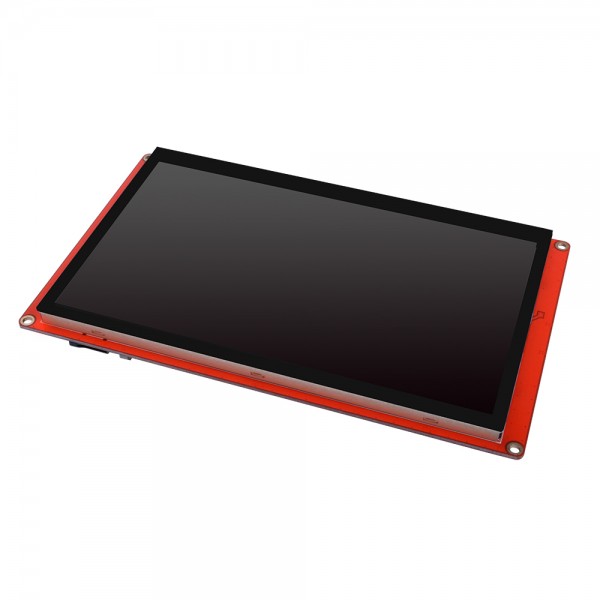

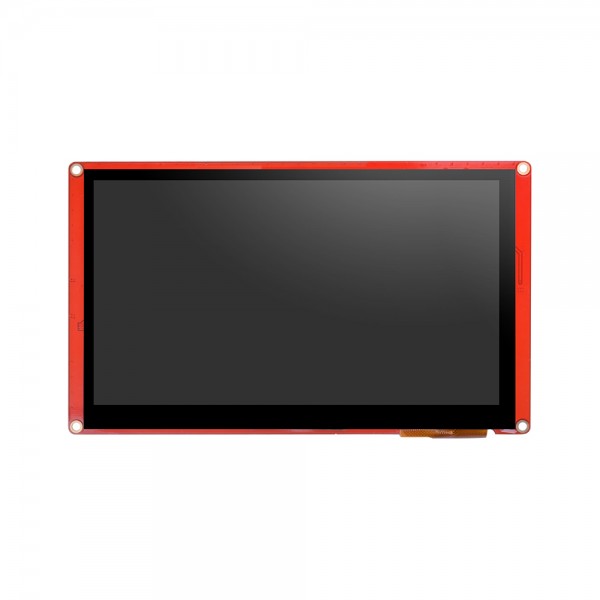

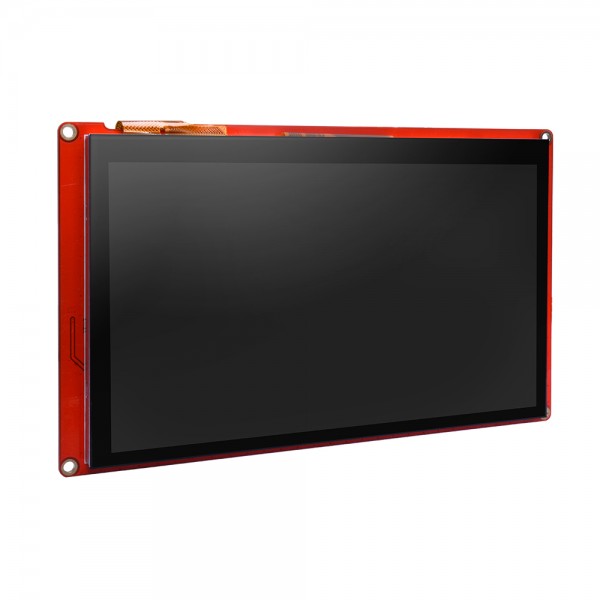

Nextion Intelligent NX8048P070 HMI Display 7 Inch 800x480 with Capacitive Touchscreen

Availability: Directly available from warehouse in Eindhoven
SKU: 002347

Based on 0 review(s) - Write a review

€102.00

Ex Tax: €84.30

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

Complete HMI display with touchscreen. This screen can be serially controlled via an UART port. It also has GPIO outputs that can be controlled via the Nextion software. The graphical interface of this module can also be programmed via an SD card or via the UART connection.
Design your own screen interface with touchscreen in the Nextion software. For examples and library's see this Github.

The Nextion Intelligent screens have a number of advantages over the enhanced Nextion screens:

More powerful hardware in terms of MCU, flash storage and SRAM
Ability to play audio, video and animation options
Supports more advanced software features and functions such as transparent components, loading effects, drag and drop functionalities etc.

Specifications:

Input voltage: 4.75 - 6.5V (5V standard)
Input current: 430mA (max brightness), 170 mA (sleep mode). Recommended power supply: 5V, minimum 1A
Screen format: 7 inches
Screen resolution: 800x480 pixels
Screen brightness: 0 ~ 300 nits (adjustable with 1%)
Touchscreen type: Capacitive
Flash storage: 128MB
EEPROM: 1024 bytes
RAM: 512 KB
Instruction buffer: 1024 bytes
Colors: 64K (65536)
Speaker:
- 0.5 watt rated capacity
- Impedance of 16Ω
Available GPIO pins: 8x (including 4 PWM pieces)
SD card slot, FAT32. Suitable for a maximum of 32 GB SD card
Cable (4 pin) included with micro USB power adapter
Dimensions: 181 x 108 x 9.3mm
Has four M3 mounting holes

For more information, see the following pages's: Datasheet and Nextion HMI Solution wiki.

Note: It is important that you use a good quality power supply, the display will get damaged quickly if the power supply provides a too low voltage.

Note: The length of the pixels on the long side (800 pixels) are 1.076x longer compared to the short side (480 pixels). This can cause images to look stretched or pressed. There is currently no compensation for this problem in the software and so the image must be compensated with a 1:1.076 ratio for the best view.

Please login or register to review

Reviews Over Nextion Intelligent NX8048P070 HMI Display 7 Inch 800x480 with Capacitive Touchscreen

Average Rating:

This product has 0 review(s) in total.

Tags: Nextion Intelligent NX8048P070 HMI Display 7 Inch 800x480 with Capacitive Touchscreen , NX8048P070_011C , Nextion

Product FAQ

Can I power the device with an Arduino or other development board?

This is not possible in most cases. Most development boards (including Uno, Mega, NodeMCU, D1 Mini V3, etc.) have a diode between the 5V pin and the USB input that lowers the voltage. If the voltage from the 5V pin is lower than the required minimum of the device (see specifications) then it cannot function properly. In addition, many development boards can only provide little power. This can also cause it to malfunction. Using an insufficient power supply can even damage the device. Therefore, make sure that you use a suitable power supply and that it is connected correctly. It is advised to verify the supply voltage by measuring it.

The HMI is not functioning properly. What causes this?

In most cases, this is caused by insufficient power supply condition. Nextion HMIs require a good quality power supply. When the power supply provides too little current, has too low a voltage and/or generates too much ripple, several problems can arise, such as:

Flashing
Blurred screen
Freeze
Damage to the HMI

A good quality CE-approved power supply is required that can supply enough current and has the correct voltage. If necessary, measure the voltage directly on the Vcc and GND pins of the HMI.
