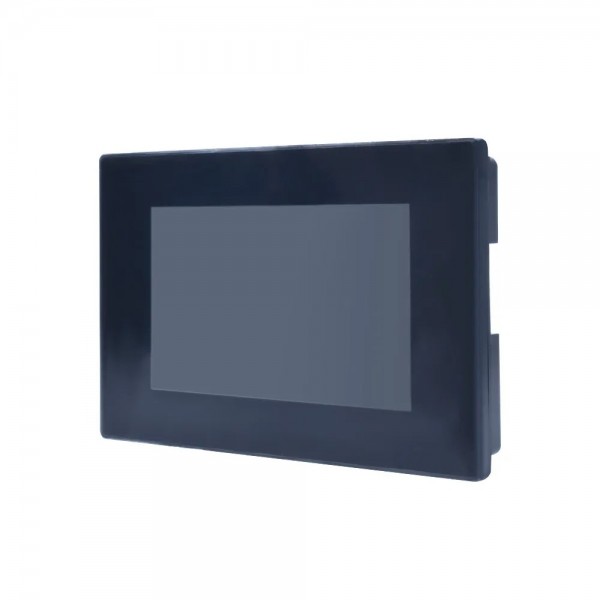

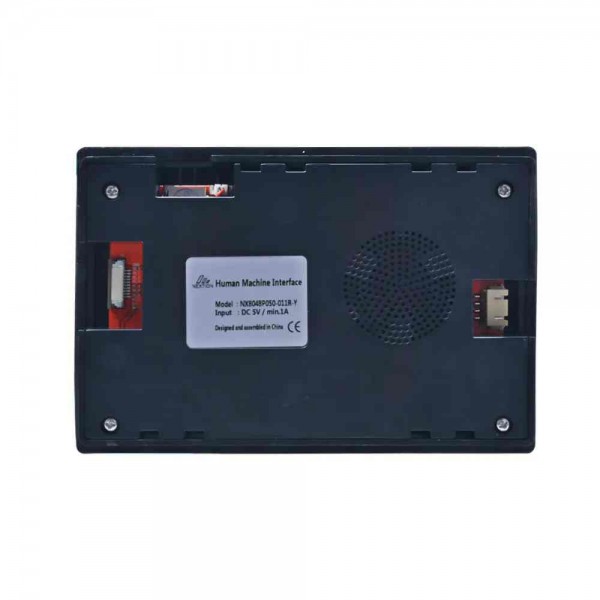

Nextion Intelligent NX8048P050 HMI Display 5 Inch 800x480 with Capacitive Touchscreen and Enclosure

Nextion Intelligent NX8048P050 HMI Display 5 Inch 800x480 with Capacitive Touchscreen and Enclosure
Nextion Intelligent NX8048P050 HMI Display 5 Inch 800x480 with Capacitive Touchscreen and Enclosure
Nextion Intelligent NX8048P050 HMI Display 5 Inch 800x480 with Capacitive Touchscreen and Enclosure
Nextion Intelligent NX8048P050 HMI Display 5 Inch 800x480 with Capacitive Touchscreen and Enclosure
Nextion Intelligent NX8048P050 HMI Display 5 Inch 800x480 with Capacitive Touchscreen and Enclosure
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006600
Based on 0 review(s) - Write a review
€82.00
Ex Tax: €67.77
10 or more €81.50
20 or more €81.00
50 or more €80.50
100 or more €80.00
Add to Cart
Add to wishlist

Complete HMI display with touchscreen. This display can be controlled serially via a UART port and also has GPIO outputs that can be controlled via the Nextion software. The graphical interface of this module can be programmed via an SD card or via the UART connection. Determine yourself how the display looks and program the interface with the touchscreen yourself.

The Nextion Intelligent displays have a number of advantages over the enhanced Nextion screens:

  • More powerful hardware in terms of MCU, flash storage and SRAM
  • Options to play audio, video and animation
  • Supports more advanced software features and functions such as transparent components, loading effects, drag and drop functionalities etc.

See the following page for more information: GitHub

Note: It is important that you use a good quality power supply, the display will get damaged quickly if the power supply provides a too low voltage.

See the following page for more information: Manufacturer page

Please login or register to review
Tags: Embedded , Nextion , Nextion Intelligent NX8048P050 HMI Display 5 Inch 800x480 with Capacitive Touchscreen and Enclosure , 006600 , Nextion , NX8048P050-011C-Y , Microcontroller (MCU) , SD-card adapter , Audio amplifier , Speaker/buzzer , Battery holder , Display , Enclosure , Touchscreen , RTC , UART , GPIO , PWM

Specifications

General
Brand Nextion
Manufacturer model/SKU NX8048P050-011C-Y
Norm conformity CE
RoHS
Minimum operating humidity [%R.H.] 10
Maximum operating humidity [%R.H.] 90
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
Features RTC
Display
Enclosure
Touchscreen
Battery holder
Speaker/buzzer
Audio amplifier
SD-card adapter
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 254
Dimension X [mm] 160
Dimension Y [mm] 107
Dimension Z [mm] 21
Mounting options Clamp
Maximum mounting thickness [mm] 7.0
Recommended mounting dimensions [mm] 152 x 97
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 4.7
Maximum supply voltage [V DC] 6.5
Minimum recommended supply current [A] 1
Indication average current consumption [mA] 220
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 5
(UART)
3.3
(GPIO)
IO-pin output voltage [V] 5
(UART)
3.3
(GPIO)
Maximum IO-pin source current [mA] 1
Maximum IO-pin sink current [mA] 1
MCU
Maximum clock frequency [MHz] 200
Internal memory
SRAM [KB] 512
Flash memory [MB] 120
EEPROM [B] 1024
EEPROM type Built-in
Communication
Hardware interface(s) PWM
GPIO
UART
Number of IO-pins 8
Maximum available hardware PWM channels 2
Default baudrate 9600
Supported SD card size Micro SD
Supported SD File Format FAT32
Maximum supported SD capacity [GB] 32
Display
Type TFT
Screen diagonal [inch] 5
Number of pixels long side 800
Number of pixels short side 480
Display shape Rectangular
Pixel colors RGB
Maximum brightness [cd/m²] 300
Touchscreen
Touch type Capacitive
Multi-touch support Yes
RTC
Back-up battery/capacitor Optional
Audio amplifier
Number of (normal) channels 1
Speaker
Speaker type Standard
Impedance [Ω] 16
Maximum nominal (RMS) power [W] 0.5
Battery holder
Suitable battery form factor Button cell 1220
Suitable number of batteries 1
Connectors
Power supply connector(s) JST-XH (compatible) male
IO-connector(s) FFC female 10p 1.00mm
JST-XH (compatible) male
Package contents
Package contents 1x Display module
1x JST-XH 4p to DuPont cable
1x Micro USB to pin header adapter
4x Mounting bolt
4x Mounting clamp
