- Availability: Directly available from warehouse in Eindhoven
- SKU: 004187

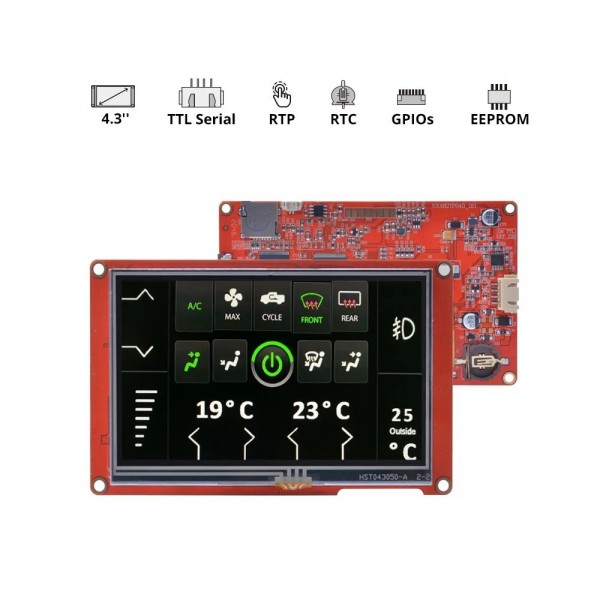

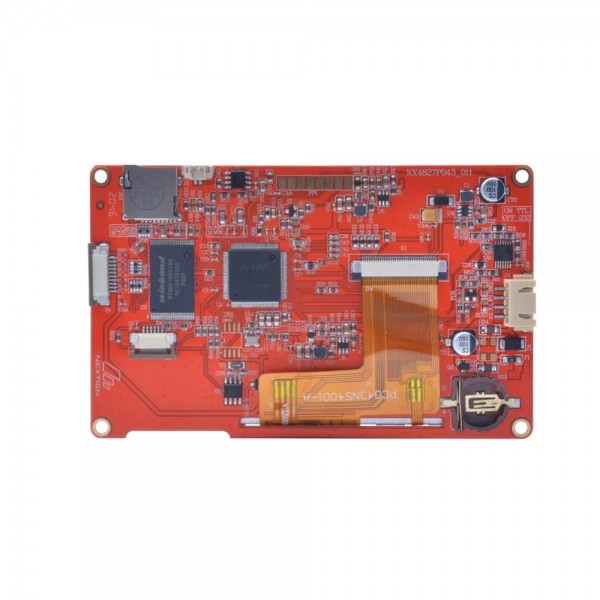

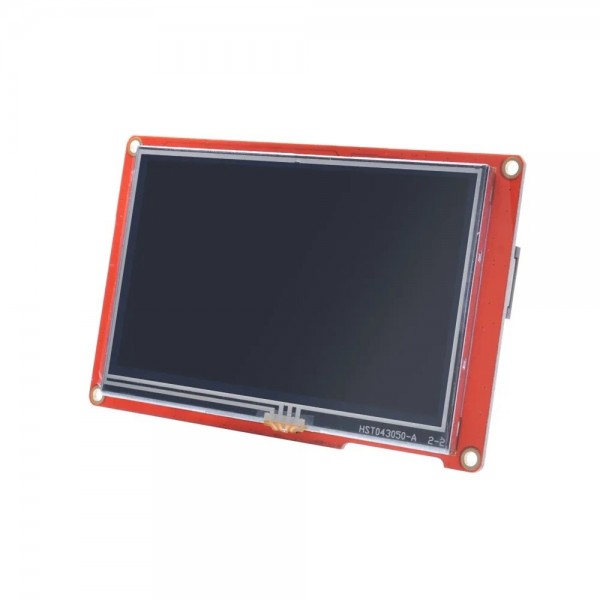

Complete HMI display with touchscreen. This display can be controlled serially via a UART port and also has GPIO outputs that can be controlled via the Nextion software. The graphical interface of this module can be programmed via an SD card or via the UART connection. Determine yourself how the display looks and program the interface with the touchscreen yourself.
The Nextion Intelligent displays have a number of advantages over the enhanced Nextion screens:
- More powerful hardware in terms of MCU, flash storage and SRAM
- Options to play audio, video and animation
- Supports more advanced software features and functions such as transparent components, loading effects, drag and drop functionalities etc.
See the following page for more information: GitHub
Note: It is important that you use a good quality power supply, the display will get damaged quickly if the power supply provides a too low voltage.
See the following page for more information: Manufacturer page
Reviews Over Nextion Intelligent NX4827P043 HMI IPS Display 4.3 Inch 480x272 with Resistive Touchscreen
This product has 0 review(s) in total.
Report this review.
Specifications
| General | |
| Brand | Nextion |
| Manufacturer model/SKU | NX4827P043-011R |
| Norm conformity | CE RoHS |
| Minimum operating humidity [%R.H.] | 10 |
| Maximum operating humidity [%R.H.] | 90 |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 70 |
| Features | RTC Display Touchscreen Battery holder Audio amplifier SD-card adapter Microcontroller (MCU) |
| General physical appearance | |
| Main color | Red |
| Weight [g] | 95 |
| Dimension X [mm] | 120 |
| Dimension Y [mm] | 74 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.2 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 4.7 |
| Maximum supply voltage [V DC] | 6.5 |
| Minimum recommended supply current [A] | 1 |
| Indication average current consumption [mA] | 220 |
| Minimum IO-pin input voltage [V] | 3 |
| Maximum IO-pin input voltage [V] | 5 (UART) 3.3 (GPIO) |
| IO-pin output voltage [V] | 5 (UART) 3.3 (GPIO) |
| Maximum IO-pin source current [mA] | 1 |
| Maximum IO-pin sink current [mA] | 1 |
| MCU | |
| Maximum clock frequency [MHz] | 200 |
| Internal memory | |
| SRAM [KB] | 512 |
| Flash memory [MB] | 120 |
| EEPROM [B] | 1024 |
| EEPROM type | Built-in |
| Communication | |
| Hardware interface(s) | PWM GPIO UART |
| Number of IO-pins | 8 |
| Maximum available hardware PWM channels | 2 |
| Default baudrate | 9600 |
| Supported SD card size | Micro SD |
| Supported SD File Format | FAT32 |
| Maximum supported SD capacity [GB] | 32 |
| Display | |
| Type | IPS |
| Screen diagonal [inch] | 4.3 |
| Number of pixels long side | 480 |
| Number of pixels short side | 272 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Maximum brightness [cd/m²] | 300 |
| Touchscreen | |
| Touch type | Resistive |
| Multi-touch support | No |
| RTC | |
| Back-up battery/capacitor | Optional |
| Audio amplifier | |
| Number of (normal) channels | 1 |
| Maximum power per (normal) channel [W] | 1.5 |
| Battery holder | |
| Suitable battery form factor | Button cell 1220 |
| Suitable number of batteries | 1 |
| Connectors | |
| Power supply connector(s) | JST-XH (compatible) male |
| IO-connector(s) | FFC female 10p 1.00mm JST-XH (compatible) male |
| Speaker connector(s) | Molex Picoblade (compatible) male |
| Package contents | |
| Package contents | 1x Display module 1x JST-XH 4p to DuPont cable 1x Micro USB to pin header adapter |
Product FAQ
This is not possible in most cases. Most development boards (including Uno, Mega, NodeMCU, D1 Mini V3, etc.) have a diode between the 5V pin and the USB input that lowers the voltage. If the voltage from the 5V pin is lower than the required minimum of the device (see specifications) then it cannot function properly. In addition, many development boards can only provide little power. This can also cause it to malfunction. Using an insufficient power supply can even damage the device. Therefore, make sure that you use a suitable power supply and that it is connected correctly. It is advised to verify the supply voltage by measuring it.
In most cases, this is caused by insufficient power supply condition. Nextion HMIs require a good quality power supply. When the power supply provides too little current, has too low a voltage and/or generates too much ripple, several problems can arise, such as:
- Flashing
- Blurred screen
- Freeze
- Damage to the HMI
A good quality CE-approved power supply is required that can supply enough current and has the correct voltage. If necessary, measure the voltage directly on the Vcc and GND pins of the HMI.
