Nextion Enhanced NX8048K070 HMI Display 7 Inch 800x480 with Capacitive Touchscreen and Enclosure

Availability: Directly available from warehouse in Eindhoven
SKU: 001703

Based on 0 review(s) - Write a review

€120.00

Ex Tax: €99.17

Qty

Add to Cart

Add to wishlist

Only 1 piece in stock

Description
Reviews

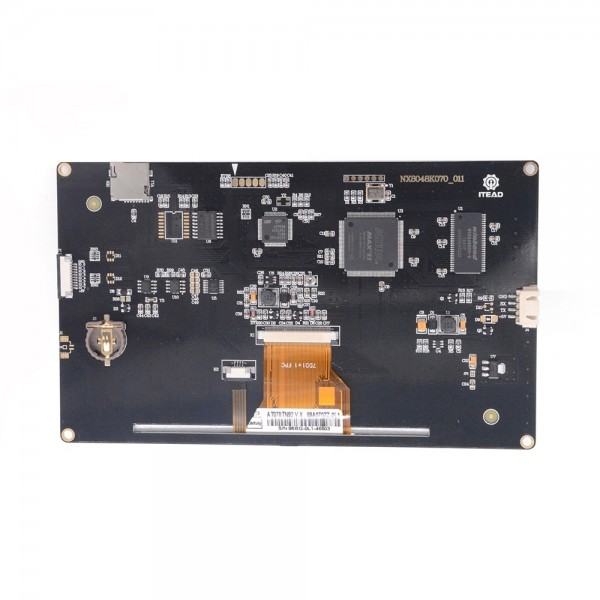

Complete HMI display with touchscreen. This screen can be controlled serially via a UART port and also has GPIO outputs that can be controlled via the Nextion software. The graphical interface of this module can also be programmed via an SD card or via the UART connection.
Decide for yourself what the screen looks like and program the interface with the touchscreen yourself. For examples and library's: see this Github.

The enhanced Nextion screens have a number of advantages over the normal Nextion screens:

Built-in RTC
Data can be saved on flash memory
GPIO pins
Larger flash memory
Faster CPU

Specifications:

Input voltage: 4.75 - 7V (5V standard)
Input current: 510 mA (max brightness), 15 mA (sleep mode). Recommended power: 5V, minimum 2A
Screen size: 7 inch
Screen resolution: 800x480 pixels
Screen brightness: 0 ~ 230 nits (adjustable by 1%)
Touchscreen type: Capacitief
Flash storage: 32MB
EEPROM: 1024 bytes
RAM: 8192 bytes
Instruction buffer: 1024 bytes
Colors: 64K (65536)
Available GPIO pins: 8x (of which 4 are PWM)
SD card slot, FAT32. Suitable for up to 32 GB SD card

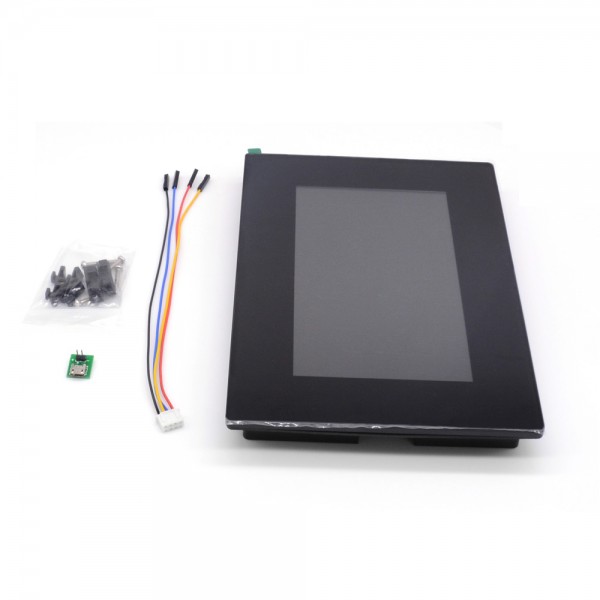

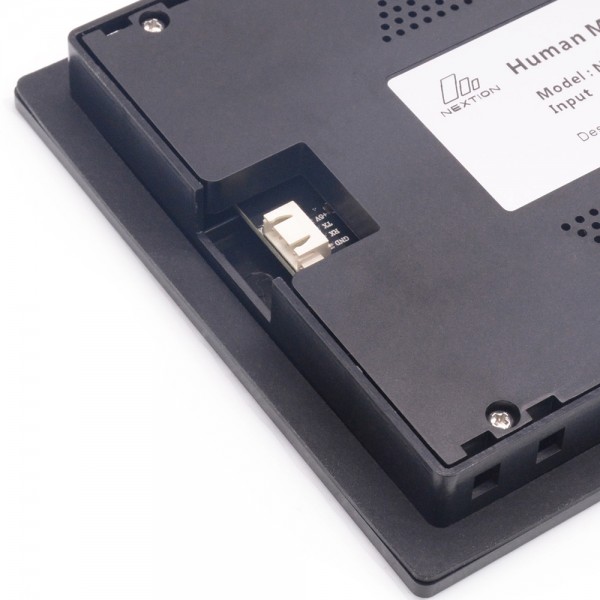

Cable (4 pins) included with micro USB power adapter

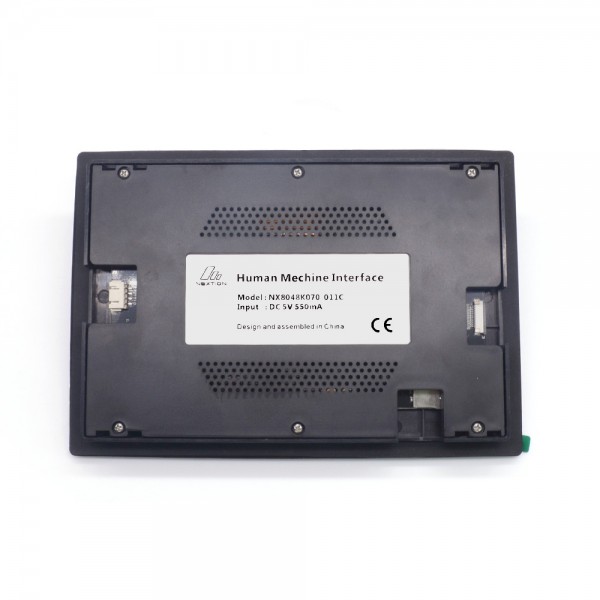

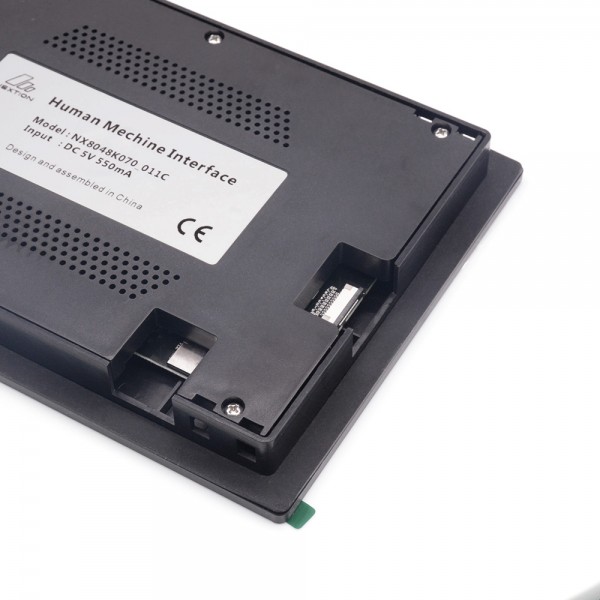

Enclosure around display for easy mounting

For more information see the following pages: Datasheet and Nextion HMI Solution wiki.

Note: It is important that you use a good quality power supply, the display will get damaged quickly if the power supply provides a too low voltage.

Note: The length of the pixels on the long side (800 pixels) are 1.076x longer compared to the short side (480 pixels). This can cause images to look stretched or pressed. There is currently no compensation for this problem in the software and so the image must be compensated with a 1:1.076 ratio for the best view.

Please login or register to review

Reviews Over Nextion Enhanced NX8048K070 HMI Display 7 Inch 800x480 with Capacitive Touchscreen and Enclosure

Average Rating:

This product has 0 review(s) in total.

Tags: Nextion Enhanced NX8048K070 HMI Display 7 Inch 800x480 with Capacitive Touchscreen and Enclosure , NX8048K070_011C_CASE , Nextion

Product FAQ

Can I power the device with an Arduino or other development board?

This is not possible in most cases. Most development boards (including Uno, Mega, NodeMCU, D1 Mini V3, etc.) have a diode between the 5V pin and the USB input that lowers the voltage. If the voltage from the 5V pin is lower than the required minimum of the device (see specifications) then it cannot function properly. In addition, many development boards can only provide little power. This can also cause it to malfunction. Using an insufficient power supply can even damage the device. Therefore, make sure that you use a suitable power supply and that it is connected correctly. It is advised to verify the supply voltage by measuring it.

The HMI is not functioning properly. What causes this?

In most cases, this is caused by insufficient power supply condition. Nextion HMIs require a good quality power supply. When the power supply provides too little current, has too low a voltage and/or generates too much ripple, several problems can arise, such as:

Flashing
Blurred screen
Freeze
Damage to the HMI

A good quality CE-approved power supply is required that can supply enough current and has the correct voltage. If necessary, measure the voltage directly on the Vcc and GND pins of the HMI.
