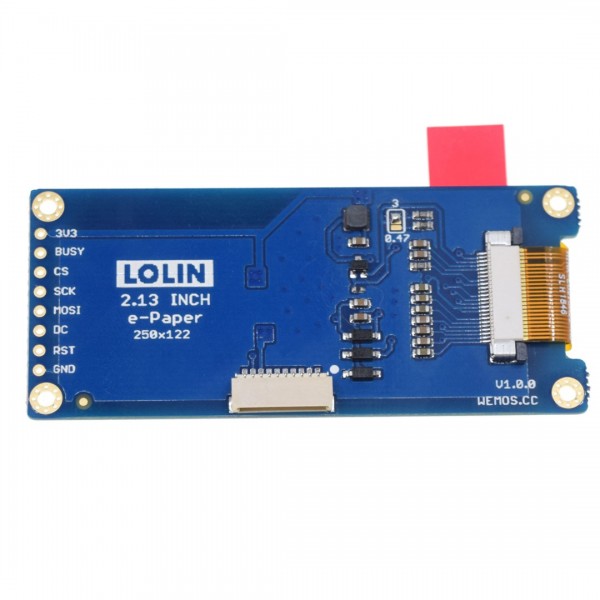

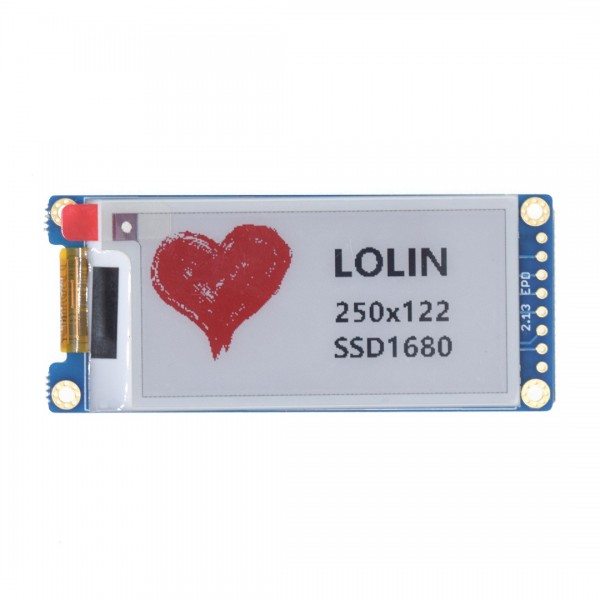

Wemos 2.13 inch Tri-Color E-Ink E-Paper Display - SSD1680

Availability: Directly available from warehouse in Eindhoven
SKU: 005355

Based on 0 review(s) - Write a review

€13.75

Ex Tax: €11.36

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

An E-ink/E-paper display module from Wemos. It can easily be used with other Wemos products via the standard Wemos TFT connection. In addition, the module can also be used with the development boards via the separate pins.

Note: The display does not include pin headers and TFT cable.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Wemos 2.13 inch Tri-Color E-Ink E-Paper Display - SSD1680

Average Rating:

This product has 0 review(s) in total.

Tags: Wemos 2.13 inch Tri-Color E-Ink E-Paper Display - SSD1680 , WM-E-INK2.13-3C-SSD1680 , E-Ink

Specifications

General
Brand	LOLIN Wemos
Model revision	V1.0.0
Features	Display
General physical appearance
Main color	Blue
Weight [g]	9
Dimension X [mm]	70
Dimension Y [mm]	30
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Driver	SSD1680
Screen diagonal [inch]	2.13
Number of pixels long side	250
Number of pixels short side	122
Display shape	Rectangular
Pixel colors	Red Black White
Connectors
Power supply connector(s)	JST-SH (compatible) male Through hole solder pin(s) (2.54mm)
IO-connector(s)	JST-SH (compatible) male Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x Display module
