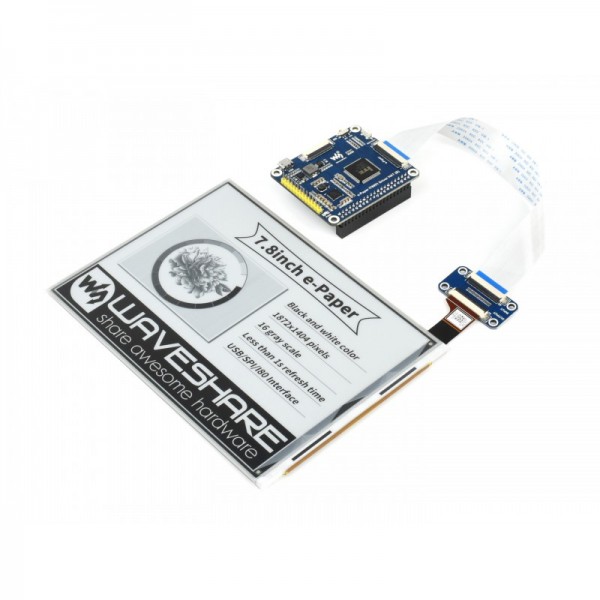

An E-Ink/E-Paper display from Waveshare. The screen is easy to control with a Raspberry Pi or other microcontroller (which has sufficient working memory).

See the following page for more information: 7.8 inch E-paper HAT

Please login or register to review

Reviews Over Waveshare 7.8 inch E-Ink E-Paper Display HAT

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 7.8 inch E-Ink E-Paper Display HAT , WS-16766 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	16766
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	50
Features	Display
General physical appearance
Main color	Blue

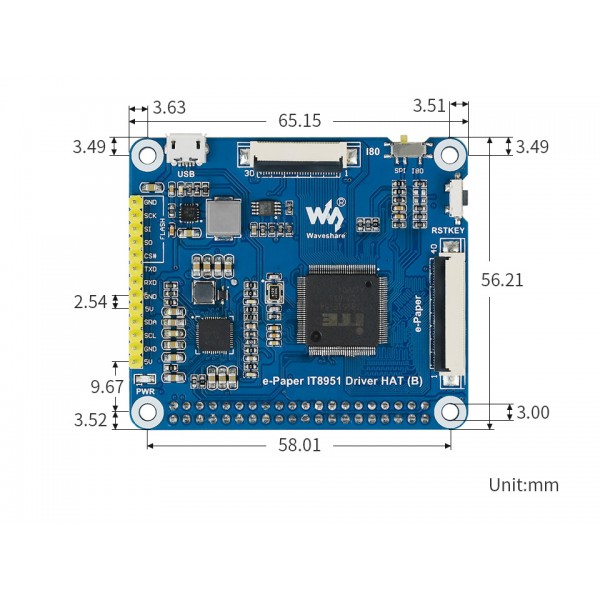

Dimension X [mm]	174 (display) 58 (driver module)
Dimension Y [mm]	128 (display) 56 (driver module)
Mounting options	Pin headers Mounting hole(s) (driver module)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C SPI USB I80
Display
Type	E-paper
Driver	IT8951
Screen diagonal [inch]	7.8
Number of pixels long side	1872
Number of pixels short side	1404
Display shape	Rectangular
Pixel colors	Black White Gray (16 gray levels)
Maximum viewing angle [°]	170
Maximum refresh rate [Hz]	2.22
Partial display refresh	Yes
Connectors
Power supply connector(s)	JST-PH (compatible) male Pin header male (2.54mm) Pin header female (2.54mm) Micro USB female
IO-connector(s)	JST-PH (compatible) male Pin header male (2.54mm) Pin header female (2.54mm) Micro USB female
Package contents

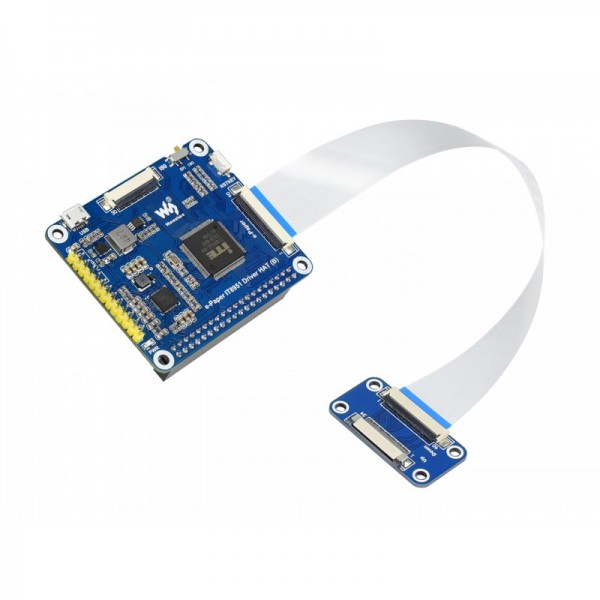

Package contents	1x E-paper Driver HAT 1x E-paper display 1x FFC adapter board 1x FFC cable 1x USB A to Micro B cable 1x 8-pin JST-PH to DuPont Female cable 1x Mounting material
