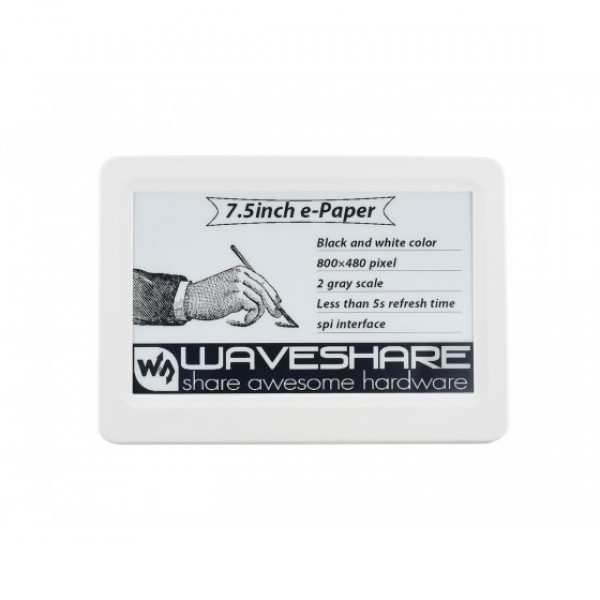

Waveshare 7.5 inch NFC-Powered E-Ink E-Paper Display
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004924
€78.00
Ex Tax: €64.46
Your shopping cart is empty!
You can update this E-paper screen via NFC. You can do this with an Android/IOS smartphone, provided it has NFC.
Note: Because this screen is large it needs more power to update, some phones do not supply enough via NFC. In that case, you can power the screen through the Micro USB port while updating it. The display's NFC tag sits around the center of the top.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 17675 |
| Features | Display Enclosure |
| General physical appearance | |
| Main color | White |
| Weight [g] | 198 |

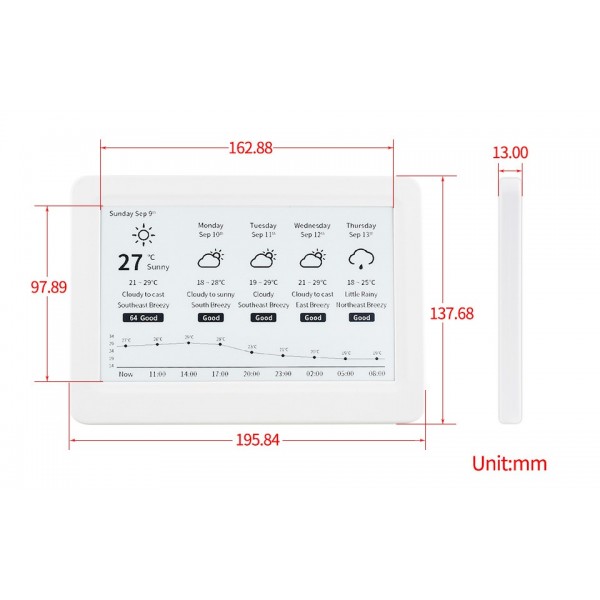

| Dimension X [mm] | 196 |
| Dimension Y [mm] | 138 |
| Dimension Z [mm] | 13 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (only necessary for updates where NFC does not provide enough power) |
| Maximum supply voltage [V DC] | 5 |
| Wireless communication | |
| Interface(s) | RFID |
| Display | |
| Type | E-paper |
| Screen diagonal [inch] | 7.5 |
| Number of pixels long side | 800 |
| Number of pixels short side | 480 |
| Display shape | Rectangular |
| Pixel colors | Black White |
| Maximum refresh rate [Hz] | 0.2 |
| Partial display refresh | No |
| Connectors | |
| Power supply connector(s) | Micro USB female |
| Enclosure | |
| Material | ABS |
| Package contents | |
| Package contents | 1x Display module |
