Name: Waveshare 7.5 inch E-Ink E-Paper Display HAT (B) - 3 Colors - Black-White-Red - WS-13505
Brand: Waveshare
SKU: 002045
Price: 58 EUR
Availability: InStock

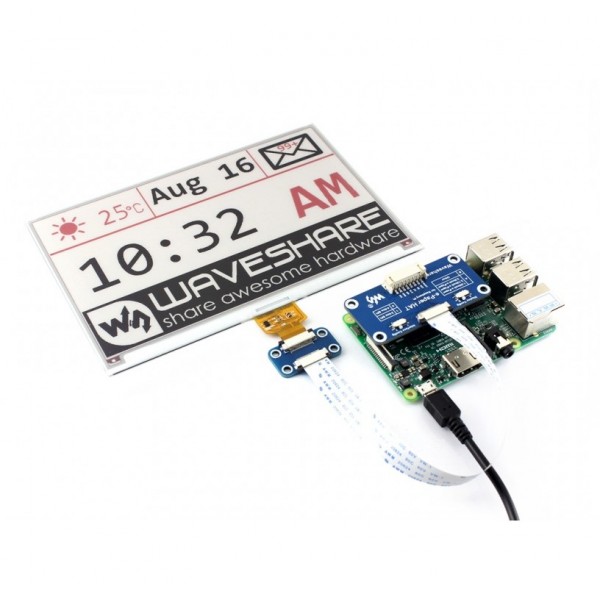

Waveshare 7.5 inch E-Ink E-Paper Display HAT (B) - 3 Colors - Black-White-Red

Availability: Directly available from warehouse in Eindhoven
SKU: 002045

Based on 0 review(s) - Write a review

€58.00

Ex Tax: €47.93

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

A Waveshare 7.5 inch E-Ink/E-Paper display module with three color pixels (black, white and red). The screen is easy to control, for example with Arduino or Raspberry Pi* via a SPI interface.

*Note: Raspberry Pi (or Arduino) is not included

See the following page to get started with the display: 7.5inch e-Paper HAT (B)

Please login or register to review

Reviews Over Waveshare 7.5 inch E-Ink E-Paper Display HAT (B) - 3 Colors - Black-White-Red

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 7.5 inch E-Ink E-Paper Display HAT (B) - 3 Colors - Black-White-Red , WS-13505 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	13505
Features	Display
General physical appearance
Main color	Blue
Dimension X [mm]	171 (screen)
Dimension Y [mm]	112 (screen)
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	15
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	7.5
Number of pixels long side	800
Number of pixels short side	480
Pixel colors	Red Black White
Maximum refresh rate [Hz]	0.067
Partial display refresh	Yes (only black and white)
Connectors
Power supply connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
IO-connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
Package contents
Package contents	1x Display module 1x Mounting material 1x E-paper HAT 1x 9-pin JST-PH to DuPont Female cable
