Name: Waveshare 7.5 inch E-Ink E-Paper Display - WS-13504
Brand: Waveshare
SKU: 002722
Price: 55 EUR
Availability: InStock

Waveshare 7.5 inch E-Ink E-Paper Display

Availability: Directly available from warehouse in Eindhoven
SKU: 002722

Based on 0 review(s) - Write a review

€55.00

Ex Tax: €45.45

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

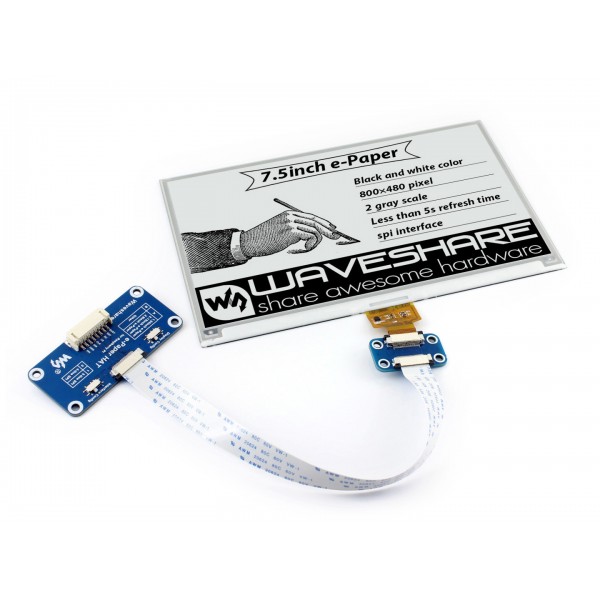

A Waveshare 7.5 inch E-Ink/E-Paper display module with two color pixels (black and white). The screen is easy to control, for example with Arduino or Raspberry Pi* via a SPI interface.

*Note: Raspberry Pi (or Arduino) is not included

See the following page to get started with the display: 7.5inch e-Paper HAT

Please login or register to review

Reviews Over Waveshare 7.5 inch E-Ink E-Paper Display

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 7.5 inch E-Ink E-Paper Display , WS-13504 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	13504
Features	Display
General physical appearance
Main color	Blue
Dimension X [mm]	178 (screen)
Dimension Y [mm]	119 (screen)
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	8
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	7.5
Number of pixels long side	800
Number of pixels short side	480
Pixel colors	Black White
Maximum refresh rate [Hz]	0.2
Partial display refresh	Yes
Connectors
Power supply connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
IO-connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
Package contents
Package contents	1x Display module 1x Mounting material 1x E-paper HAT 1x 8-pin JST-PH to DuPont Female cable
