  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002616
€55.00
Ex Tax: €45.45

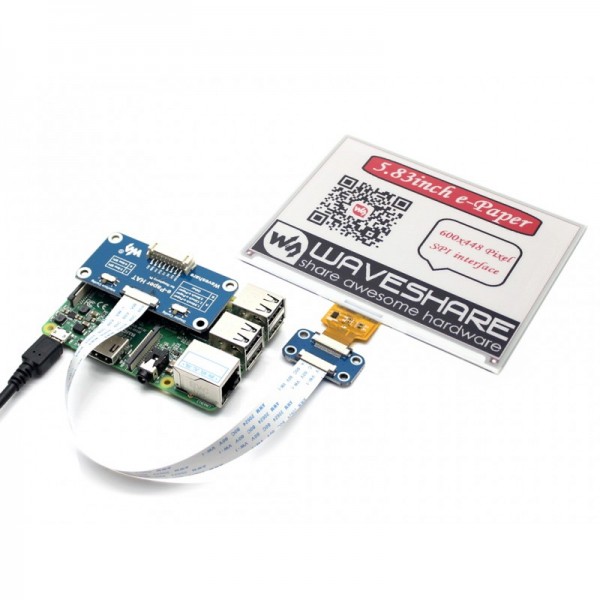

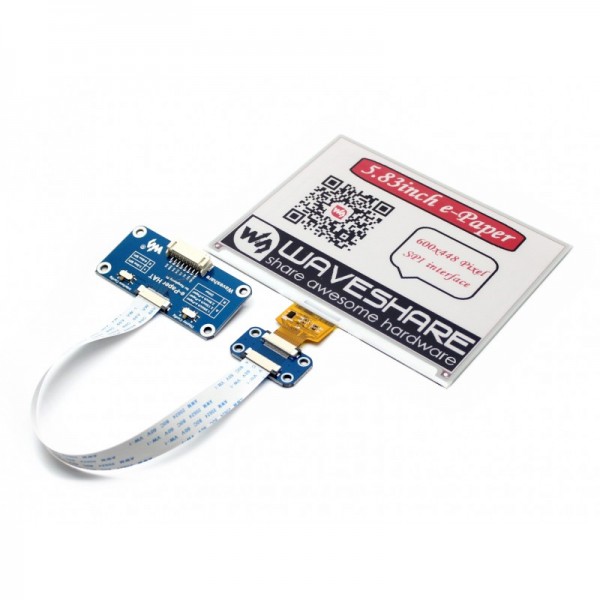

A Waveshare 5.83 inch E-Ink/E-Paper display module with three color pixels (black, white and red). The screen is easy to control, for example with Arduino or Raspberry Pi* via an SPI interface.

*Note: Raspberry Pi (or Arduino) is not included

For more information, see the following page: 5.83 inch e-Paper Module (B)

Please login or register to review

Reviews Over Waveshare 5.83 inch SPI E-Ink E-Paper (B) Display - 3 Colors

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 14600
Features Display
General physical appearance
Main color Blue
Dimension X [mm] 126
(screen)
Dimension Y [mm] 100
(screen)
Form factor Module (general)
Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Indication average current consumption [mA] 8
Indication (deep-)sleep current [μA] 0.01
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Display
Type E-paper
Screen diagonal [inch] 5.83
Number of pixels long side 648
Number of pixels short side 480
Pixel colors Red
Black
White
Maximum refresh rate [Hz] 0.05
Partial display refresh No
Connectors
Power supply connector(s) Pin header female (2.54mm)
Molex Picoblade (compatible) male
IO-connector(s) Pin header female (2.54mm)
Molex Picoblade (compatible) male
Package contents
Package contents 1x E-paper HAT
1x Display module
1x FFC flex cable 24p
1x FFC extender module
1x Molex Picoblade to DuPont compatible female cable
2x Nut
2x Spacer
2x Mounting bolt
