Name: Waveshare 5.65 inch SPI E-Ink E-Paper Display - ACeP 7 Colors - for Raspberry Pi Pico - WS-20299
Brand: Waveshare
SKU: 004735
Price: 51 EUR
Availability: InStock

Waveshare 5.65 inch SPI E-Ink E-Paper Display - ACeP 7 Colors - for Raspberry Pi Pico

Availability: Directly available from warehouse in Eindhoven
SKU: 004735

Based on 0 review(s) - Write a review

€51.00

Ex Tax: €42.15

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

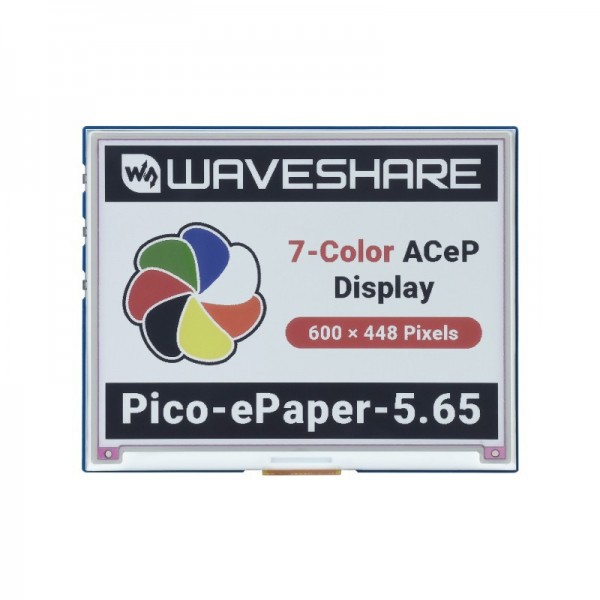

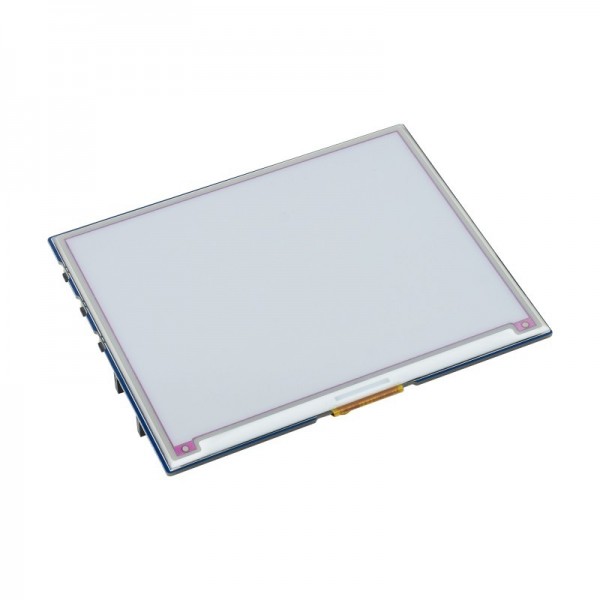

A Waveshare 5.65-inch E-Ink/E-Paper display module with 7 color pixels. The screen is easy to control, for example with Arduino or Raspberry Pi (Pico) via an SPI interface.

See the following page for examples for Arduino (amongst others): 5.65 inch e-Paper Module (F)

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 5.65 inch SPI E-Ink E-Paper Display - ACeP 7 Colors - for Raspberry Pi Pico

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 5.65 inch SPI E-Ink E-Paper Display - ACeP 7 Colors - for Raspberry Pi Pico , WS-20299 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20299
Features	Display Programmable button(s)
General physical appearance
Main color	Blue
Weight [g]	83

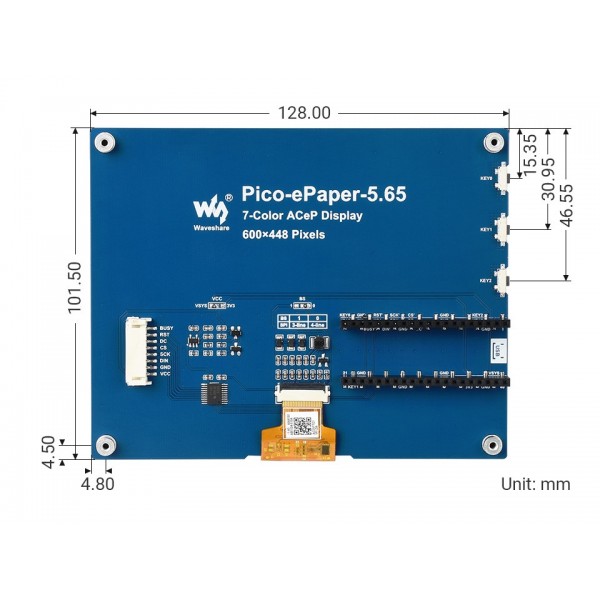

Dimension X [mm]	128
Dimension Y [mm]	102
Mounting options	Screw thread

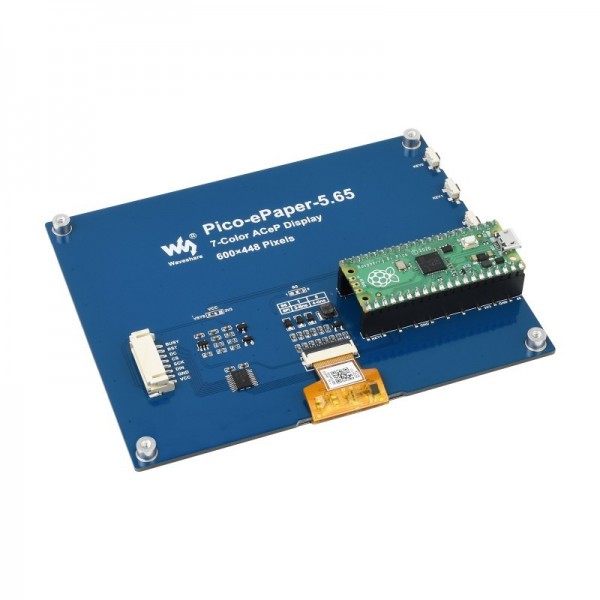

Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	8
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage (if powered via JST-PH connector) 3.3V (if powered via Raspberry Pi Pico)
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	5.65
Number of pixels long side	600
Number of pixels short side	448
Pixel colors	Red Black Green Yellow Blue White Orange
Maximum refresh rate [Hz]	0.03
Switch
Switching method	Physical (sensor switch)
Switch type	Push
Number of channels/gangs	3
Connectors
Power supply connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
IO-connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
Package contents
Package contents	1x Display module 1x JST-PH to DuPont female cable 4x Spacer
