Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors

Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors
Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors
Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors
Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors
Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors
Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors
Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002965
€57.00
Ex Tax: €47.11

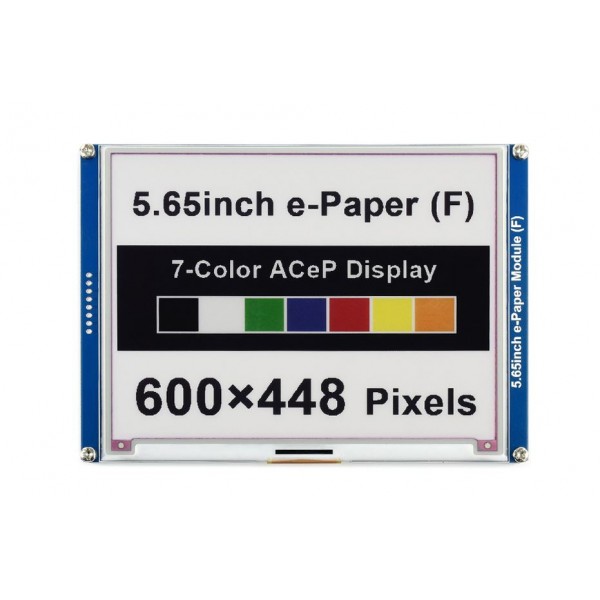

A Waveshare 5.65 inch E-Ink/E-Paper display module with seven color pixels (black, white, green, blue, red, yellow and orange). The screen is easy to control, for example with Arduino or Raspberry Pi* via an SPI interface.

*Note: Raspberry Pi (or Arduino) is not included.

See the following page for more information: 5.65 inch e-Paper Module (F).

Please login or register to review

Reviews Over Waveshare 5.65 inch SPI E-Ink E-Paper Display (F) - ACeP 7 Colors

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 18295
Features Display
General physical appearance
Main color Blue
Weight [g] 76

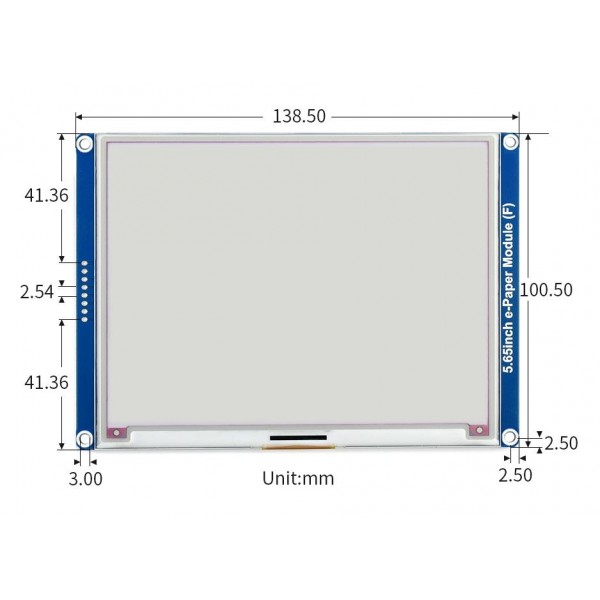

Dimension X [mm] 139
Dimension Y [mm] 101
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.0
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Indication average current consumption [mA] 15.2
Indication (deep-)sleep current [μA] 0.01
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Display
Type E-paper
Screen diagonal [inch] 5.65
Number of pixels long side 600
Number of pixels short side 448
Pixel colors Red
Black
Green
Yellow
Blue
White
Orange
Maximum refresh rate [Hz] 0.029
Partial display refresh No
Connectors
Power supply connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Display module
1x Mounting material
1x 8-pin JST-PH to DuPont Female cable
