Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors

Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004780
€31.00
Ex Tax: €25.62

There is no product description available yet.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 4.37 inch SPI E-Ink E-Paper Display (G) - 4 Colors

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 23153
Features Display
General physical appearance
Main color Blue
Weight [g] 50

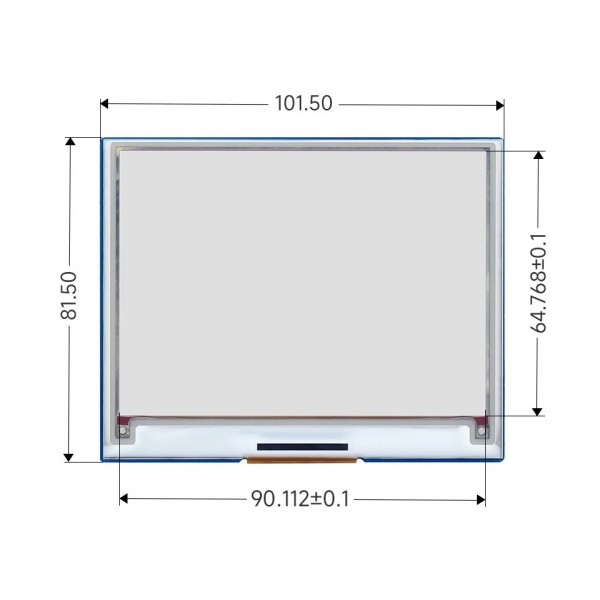

Dimension X [mm] 102
Dimension Y [mm] 82

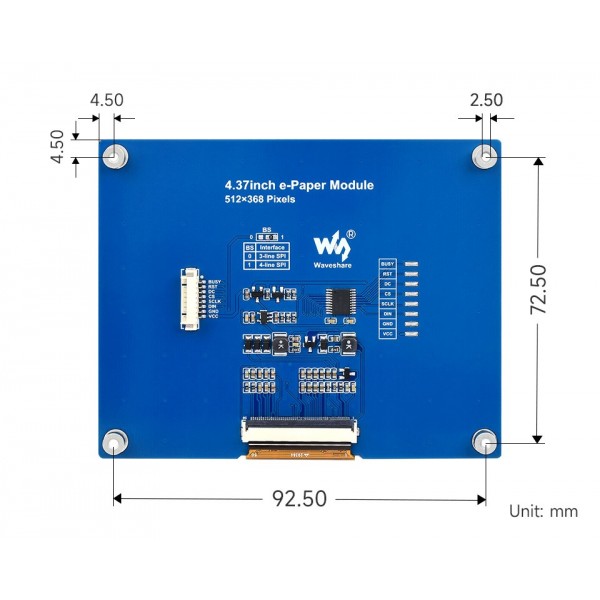

Mounting options Screw thread
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Indication average current consumption [mA] 10
Indication (deep-)sleep current [μA] 0.01
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Display
Type E-paper
Screen diagonal [inch] 4.37
Number of pixels long side 512
Number of pixels short side 368
Pixel colors Red
Black
Yellow
White
Maximum refresh rate [Hz] 0.071
Partial display refresh No
Connectors
Power supply connector(s) Molex Picoblade (compatible) male
Solder pad(s)
IO-connector(s) Molex Picoblade (compatible) male
Solder pad(s)
Package contents
Package contents 1x Display module
1x PicoBlade to DuPont Female cable
