  • Availability: 2-4 Weeks
  • SKU: 004777
Based on 0 review(s) - Write a review
€26.50
Ex Tax: €21.90
Add to Cart
Add to wishlist

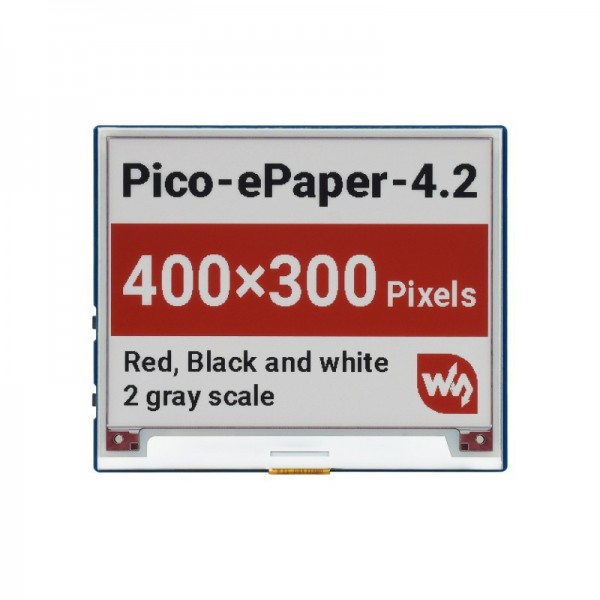

A Waveshare 4.2-inch E-Ink/E-Paper screen module with 3 color pixels (black, white, red). This screen is ideal for use with a Raspberry Pi Pico.

See the following page for more information: Wiki

Please login or register to review
Tags: Displays , E-Ink , Waveshare 4.2 inch SPI E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico , 004777 , Waveshare , 20345 , Display , Programmable button(s) , SPI

Specifications

General
Brand Waveshare
Manufacturer model/SKU
Features Display
Programmable button(s)
General physical appearance
Main color Blue
Weight [g] 50

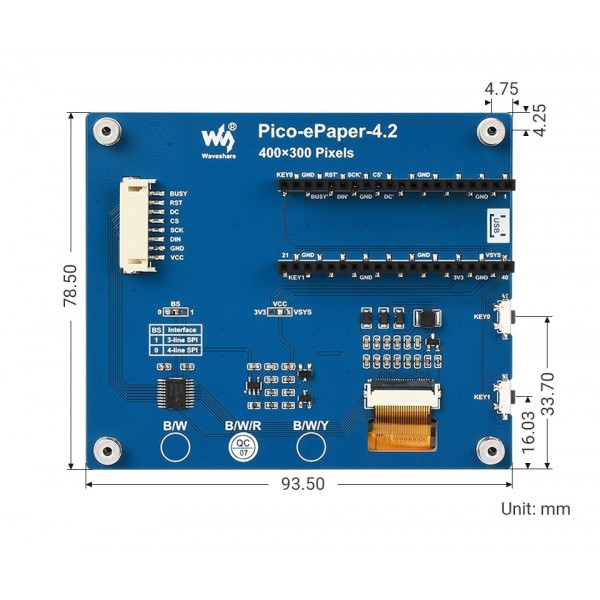

Dimension X [mm] 94
Dimension Y [mm] 79
Mounting options Screw thread
Thread size M2.5
Form factor Module (general)

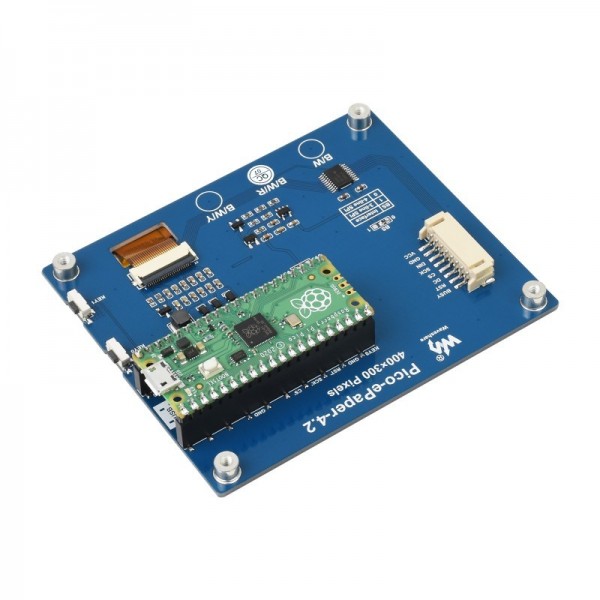

Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Indication average current consumption [mA] 8
Indication (deep-)sleep current [μA] 0.01
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Display
Type E-paper
Screen diagonal [inch] 4.2
Number of pixels long side 400
Number of pixels short side 300
Pixel colors Red
Black
White
Maximum refresh rate [Hz] 0.067
Partial display refresh No
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 2
Connectors
Power supply connector(s) JST-PH (compatible) male
Pin header female (2.54mm)
IO-connector(s) JST-PH (compatible) male
Pin header female (2.54mm)
Package contents
Package contents 1x Display module
