Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors

Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors
Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors
Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors
Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors
Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors
Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors
Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002043
€35.00
Ex Tax: €28.93

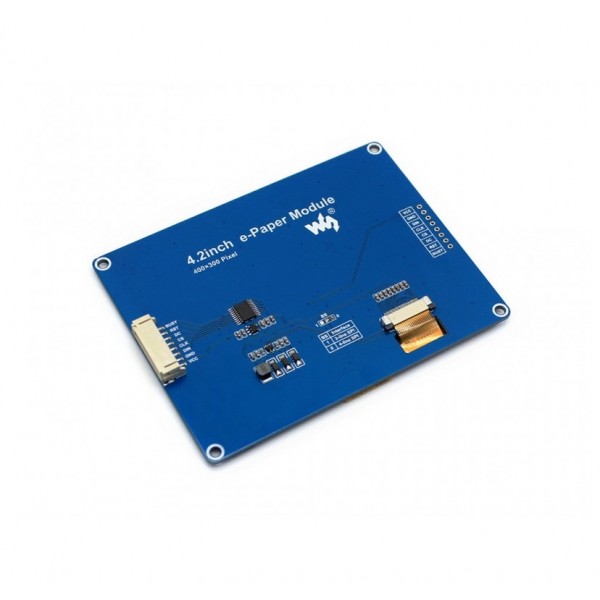

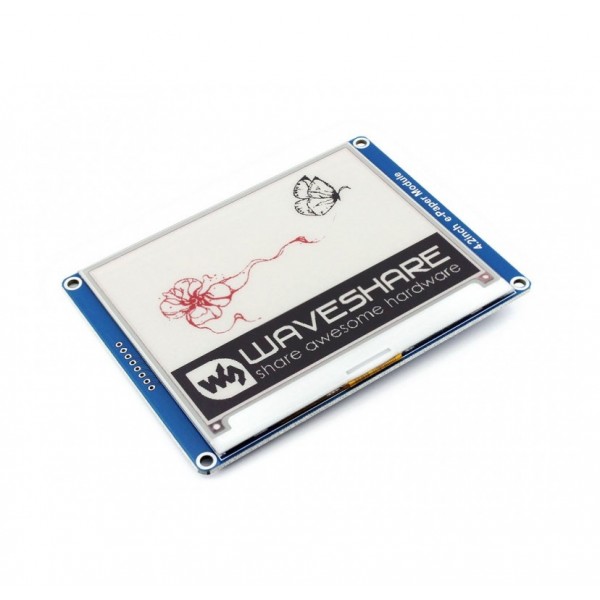

A Waveshare 4.2 inch E-Ink/E-Paper display module with three color pixels (black, white and red). The screen is easy to control, for example with Arduino or Raspberry Pi via a SPI interface.

See the following page to get started with the display: 4.2inch e-Paper Module (B)

Please login or register to review

Reviews Over Waveshare 4.2 inch E-Ink E-Paper Display - 3 Colors

This product has 1 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 13454
Features Display
General physical appearance
Main color Blue
Weight [g] 46

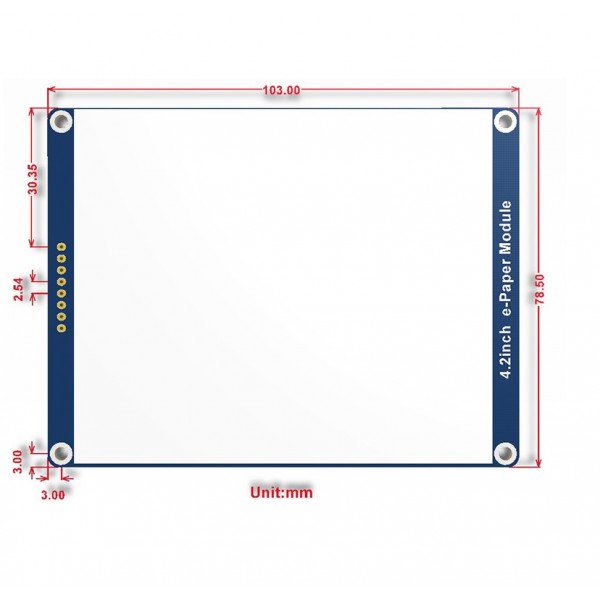

Dimension X [mm] 103
Dimension Y [mm] 79
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.0
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Indication average current consumption [mA] 11.6
(during refresh)
Indication (deep-)sleep current [μA] 0.01
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Display
Type E-paper
Screen diagonal [inch] 4.2
Number of pixels long side 400
Number of pixels short side 300
Pixel colors Red
Black
White
Maximum refresh rate [Hz] 0.067
Partial display refresh No
Connectors
Power supply connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Display module
1x Mounting material
1x 8-pin JST-PH to DuPont Female cable
