Name: Waveshare 4.2 inch E-Ink E-Paper Display - WS-13353
Brand: Waveshare
SKU: 004988
Price: 31.5 EUR
Availability: InStock

Waveshare 4.2 inch E-Ink E-Paper Display

Availability: Directly available from warehouse in Eindhoven
SKU: 004988

Based on 0 review(s) - Write a review

€31.50

Ex Tax: €26.03

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

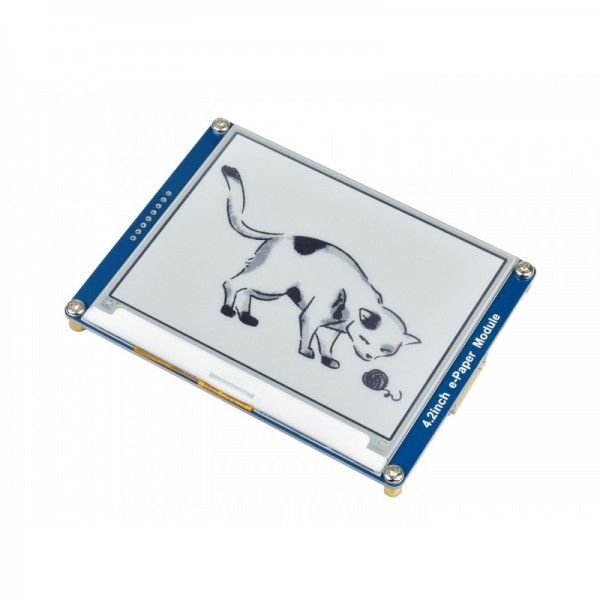

A Waveshare 4.2 inch E-Ink/E-Paper display module with two colors pixels (black and white). The display is easy to control, for example with Arduino or Raspberry Pi via the SPI interface.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 4.2 inch E-Ink E-Paper Display

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 4.2 inch E-Ink E-Paper Display , WS-13353 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	13353
Features	Display
General physical appearance
Main color	Blue
Weight [g]	50

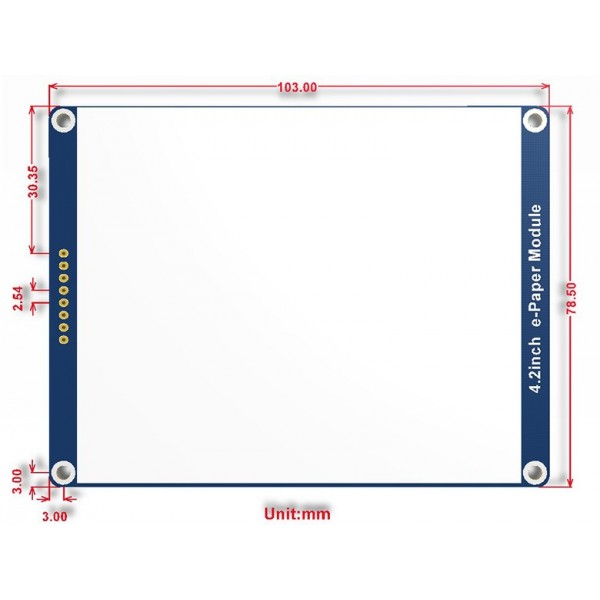

Dimension X [mm]	103
Dimension Y [mm]	79
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	8 (during refresh)
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication

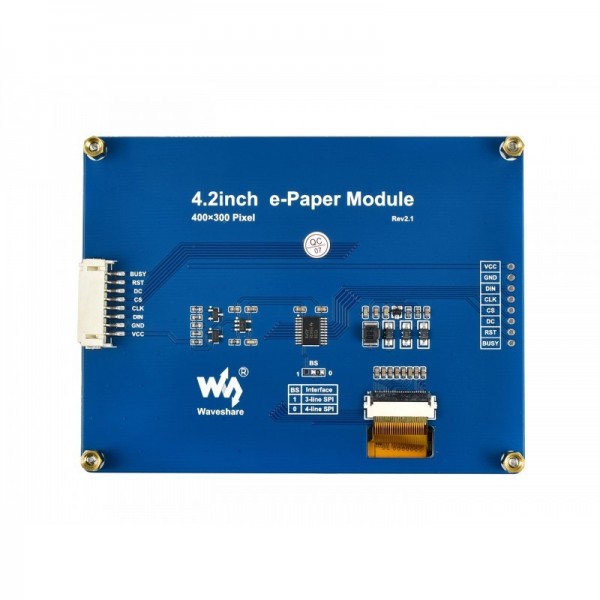

Hardware interface(s)	SPI
Display
Type	E-paper

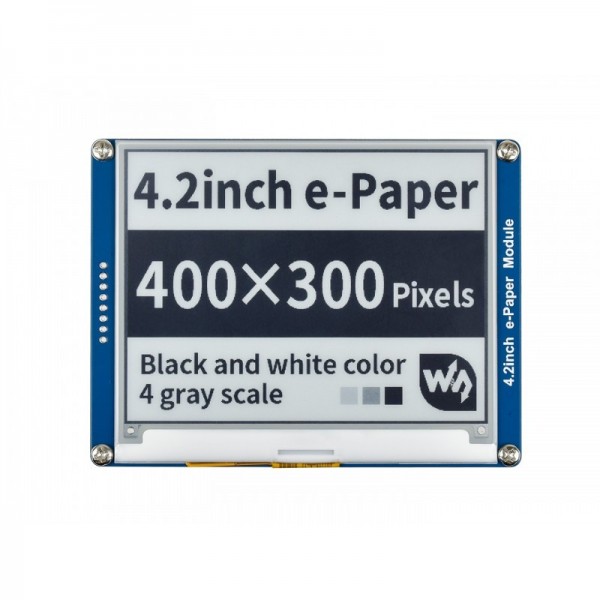

Screen diagonal [inch]	4.2
Number of pixels long side	400
Number of pixels short side	300
Pixel colors	Black White Gray
Maximum refresh rate [Hz]	0.25
Partial display refresh	Yes
Connectors
Power supply connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
IO-connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x Display module 1x JST-PH to DuPont Female cable 4x Spacer 4x Bolt
