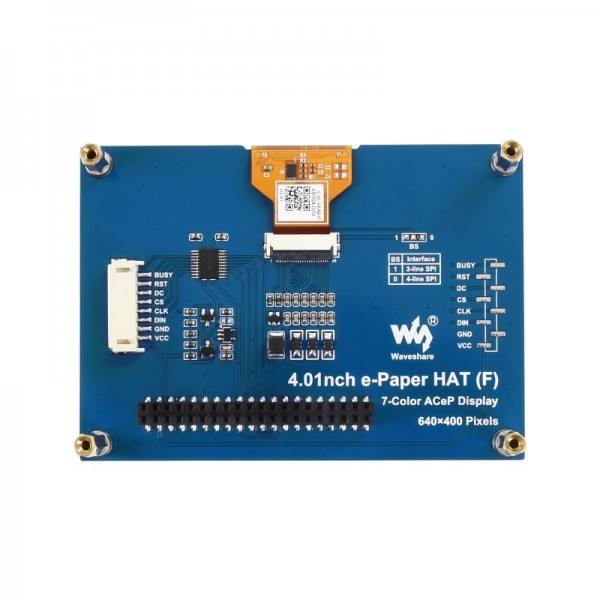

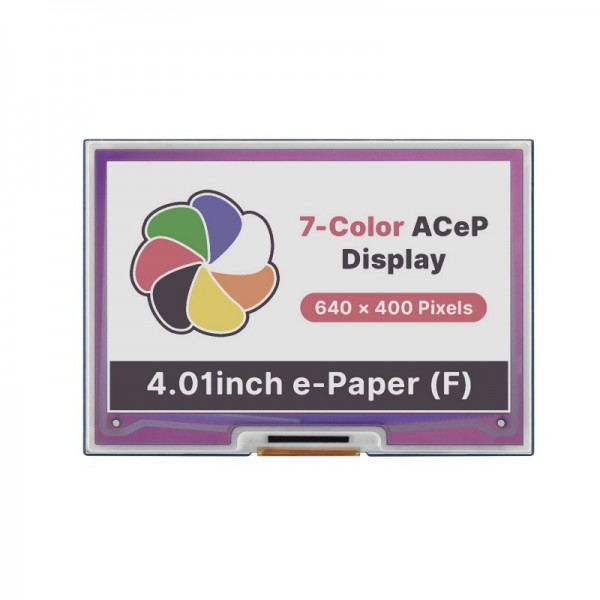

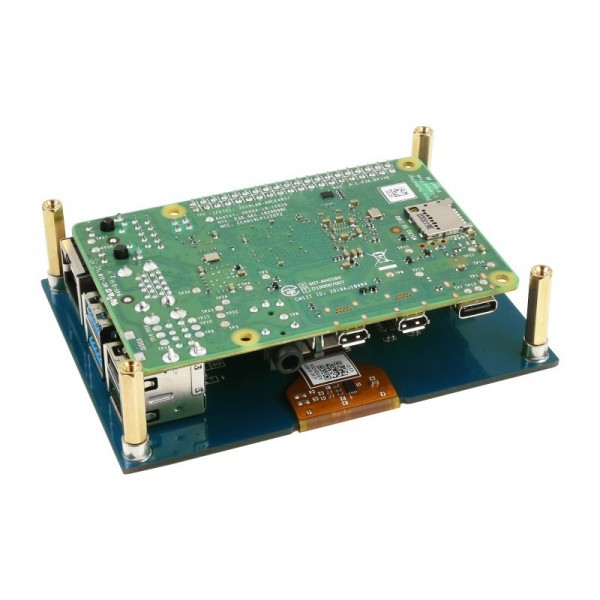

A Waveshare 4.01 inch E-Ink/E-Paper display module with 7 color APeC pixels. The screen is easy to control, for example with Arduino or Raspberry Pi via an SPI interface. The module can be connected directly to a Raspberry Pi as a HAT, or it can be connected to another microcontroller with the included JST-PH cable.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 4.01 inch E-Ink E-Paper Display HAT - ACeP 7 Colors - for Raspberry Pi

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 4.01 inch E-Ink E-Paper Display HAT - ACeP 7 Colors - for Raspberry Pi , WS-19283 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	19283
Features	Display
General physical appearance
Main color	Blue
Weight [g]	50

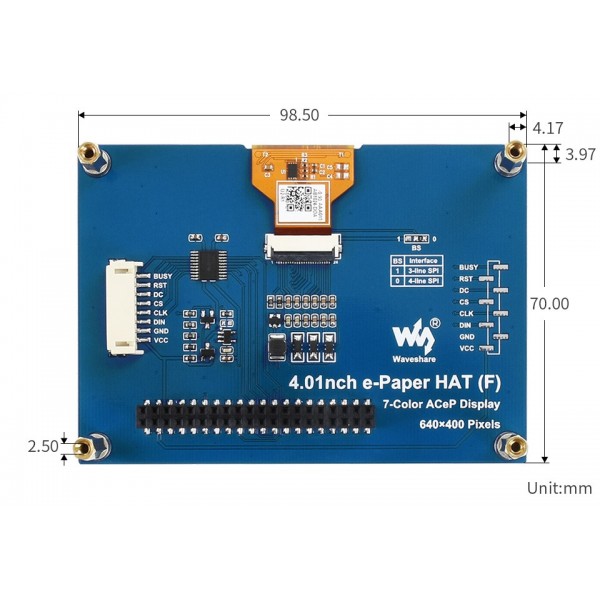

Dimension X [mm]	99
Dimension Y [mm]	70
Mounting options	Pin headers Screw thread
Thread size	M2.5
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	15
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage (if powered via JST-PH connector) 3.3V (if powered via Raspberry Pi)
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	4.01
Number of pixels long side	640
Number of pixels short side	400
Pixel colors	Red Black Green Yellow Blue White Orange
Maximum refresh rate [Hz]	0.067
Partial display refresh	No
Connectors
Power supply connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
IO-connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
Package contents
Package contents	1x Display module 1x JST-PH to DuPont female cable 4x Spacer
