Name: Waveshare 2.9 inch Touch E-Ink E-Paper Display - for Raspberry Pi Pico - WS-20051
Brand: Waveshare
SKU: 004752
Price: 22 EUR
Availability: InStock
Rating: 5 (1 reviews)

Waveshare 2.9 inch Touch E-Ink E-Paper Display - for Raspberry Pi Pico

Availability: Directly available from warehouse in Eindhoven
SKU: 004752

Based on 1 review(s) - Write a review

€22.00

Ex Tax: €18.18

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

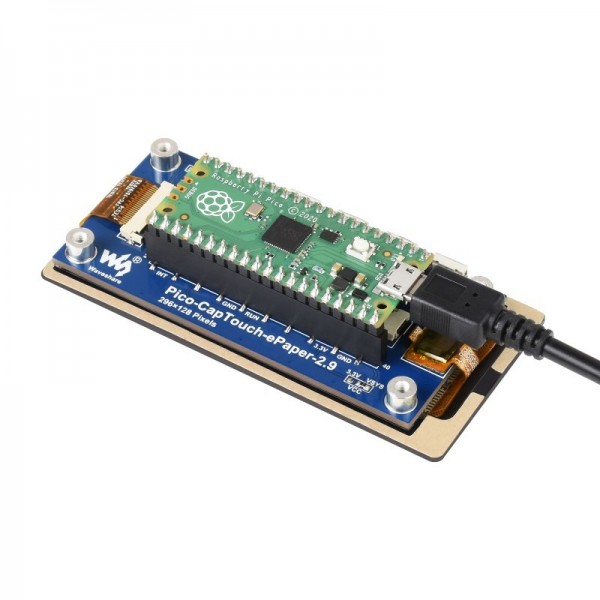

A Waveshare 2.9-inch E-Ink/E-Paper display module with two color pixels (black and white). The display is easy to use as a Hat with a Raspberry Pi Pico. The E-paper display is controlled via SPI, and the touch screen is controlled via I2C.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 2.9 inch Touch E-Ink E-Paper Display - for Raspberry Pi Pico

Average Rating:

This product has 1 review(s) in total.

Tags: Waveshare 2.9 inch Touch E-Ink E-Paper Display - for Raspberry Pi Pico , WS-20051 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20051
Features	Display Touchscreen Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	36
Dimension X [mm]	89
Dimension Y [mm]	43
Mounting options	Pin headers Screw thread Adhesive layer
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C SPI
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	10

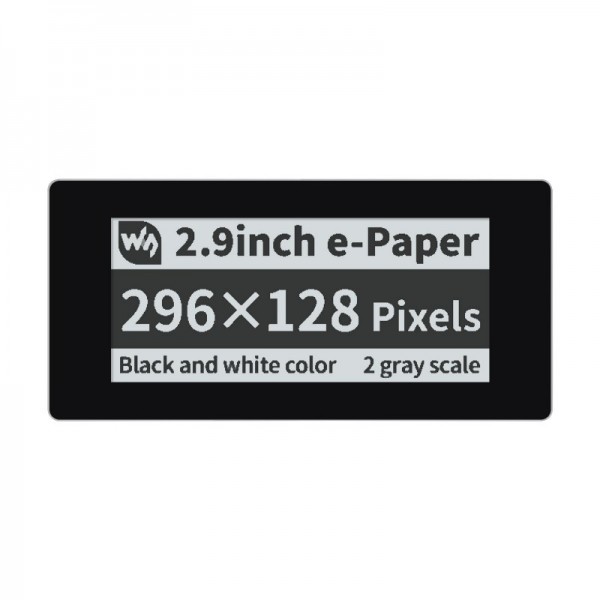

Display
Type	E-paper
Screen diagonal [inch]	2.9
Number of pixels long side	296
Number of pixels short side	128
Pixel colors	Black White
Maximum refresh rate [Hz]	0.5
Partial display refresh	Yes
Touchscreen
Touchscreen controller	ICNT8952AN
Touch type	Capacitive
Multi-touch support	Yes
Switch
Switching method	Physical (sensor switch)
Switch type	Push
Number of channels/gangs	4
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Package contents
Package contents	1x Display module 4x Spacer
