Name: Waveshare 2.9 inch E-Ink E-Paper Display - 3 Colors - WS-13339
Brand: Waveshare
SKU: 002751
Price: 21 EUR
Availability: InStock

Waveshare 2.9 inch E-Ink E-Paper Display - 3 Colors

Availability: Directly available from warehouse in Eindhoven
SKU: 002751

Based on 0 review(s) - Write a review

€21.00

Ex Tax: €17.36

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

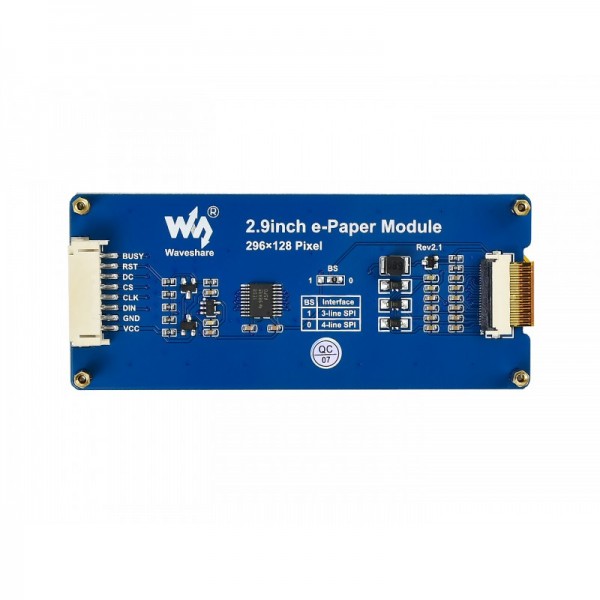

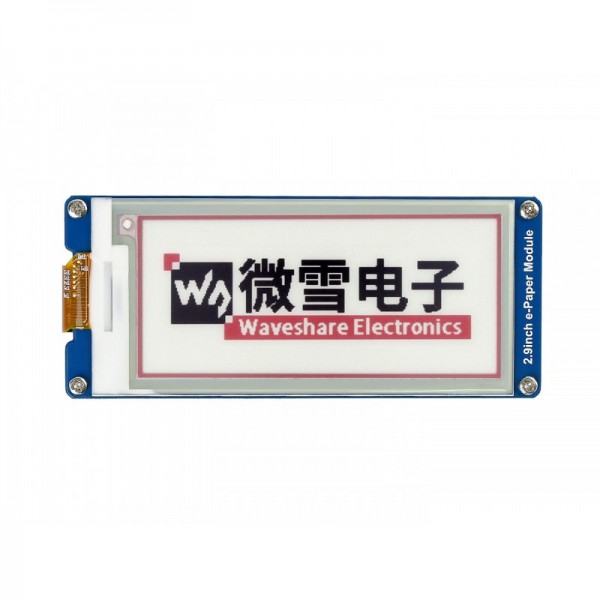

A Waveshare 2.9 inch E-Ink/E-Paper display module with three color pixels (black, white and red). The screen is easy to control, for example with Arduino or Raspberry Pi via a SPI interface.

See the following page to get started with the display: 2.9inch e-Paper Module (B)

Please login or register to review

Reviews Over Waveshare 2.9 inch E-Ink E-Paper Display - 3 Colors

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 2.9 inch E-Ink E-Paper Display - 3 Colors , WS-13339 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	13339
Features	Display
General physical appearance
Main color	Blue
Weight [g]	19
Dimension X [mm]	90
Dimension Y [mm]	38
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.0
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	9 (during refresh)
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	2.9
Number of pixels long side	296
Number of pixels short side	128
Pixel colors	Red Black White
Maximum refresh rate [Hz]	0.067
Partial display refresh	No
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x Display module 1x Mounting material 1x 8-pin JST-PH to DuPont Female cable
