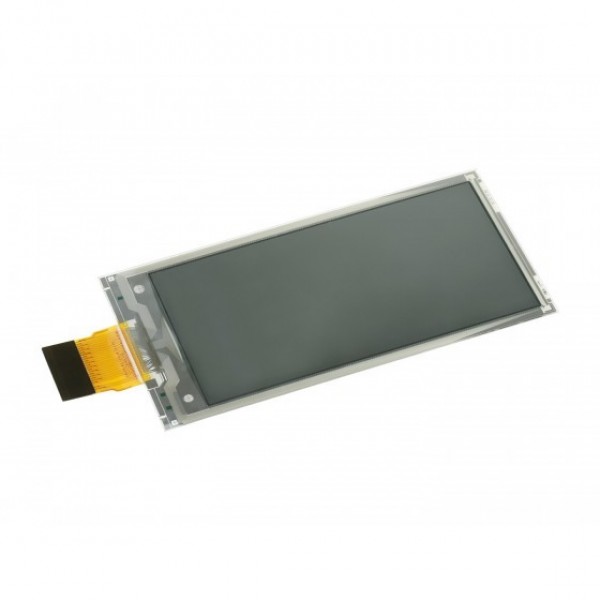

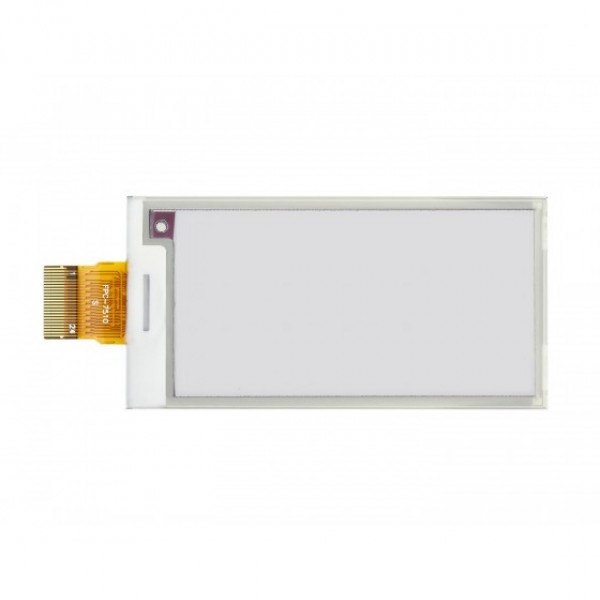

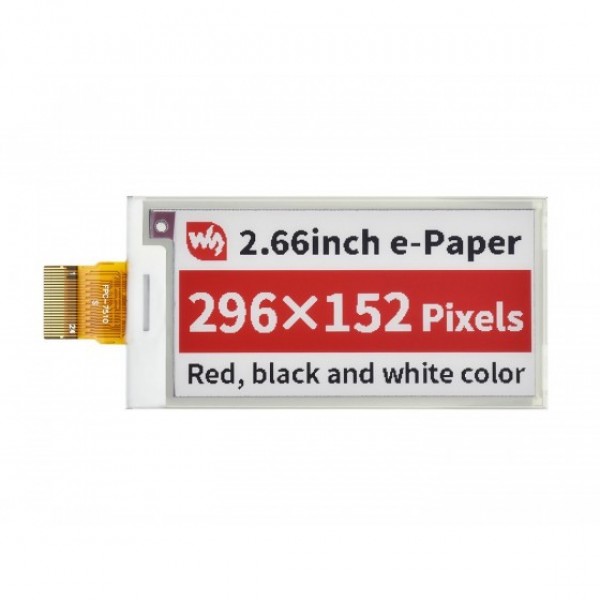

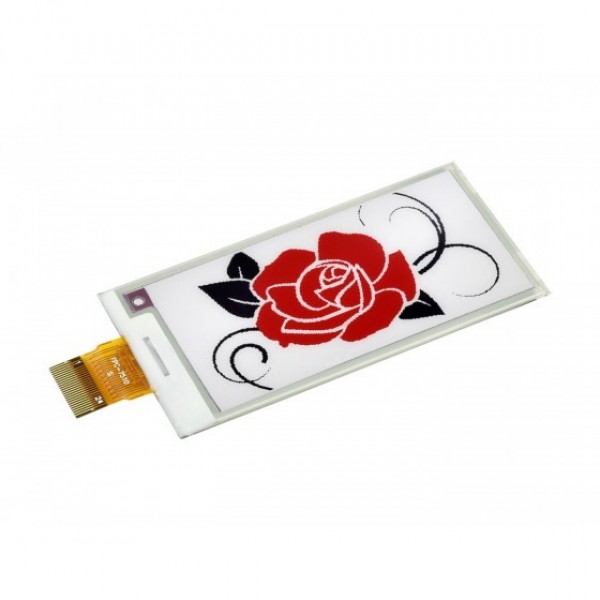

Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors

Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006337
€8.50
Ex Tax: €7.02

This is a raw e-Paper panel without a driver module. This display can be controlled with the following boards (amongst others):

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 2.66 inch E-Ink E-Paper Display (B) Panel - 3 Colors

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 18890
Features Display
General physical appearance
Main color Gray/silver
Weight [g] 5
Dimension X [mm] 72
Dimension Y [mm] 36
Form factor Individual component
Communication
Hardware interface(s) SPI
Display
Type E-paper
Screen diagonal [inch] 2.66
Number of pixels long side 296
Number of pixels short side 152
Display shape Rectangular
Pixel colors Red
Black
White
Maximum refresh rate [Hz] 0.067
Partial display refresh No
Connectors
Power supply connector(s) FFC male 24p 0.50mm
IO-connector(s) FFC male 24p 0.50mm
Package contents
Package contents 1x Display module
