Name: Waveshare 2.66 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico - WS-20053
Brand: Waveshare
SKU: 004803
Price: 15 EUR
Availability: InStock

Waveshare 2.66 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico

Availability: Directly available from warehouse in Eindhoven
SKU: 004803

Based on 0 review(s) - Write a review

€15.00

Ex Tax: €12.40

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

Description
Reviews

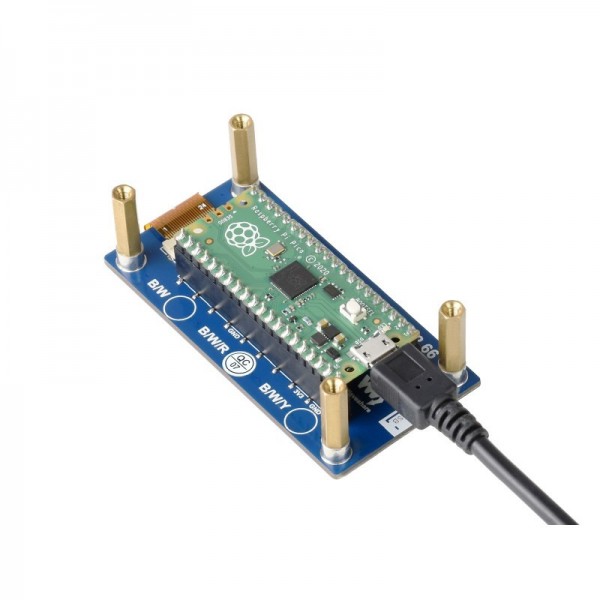

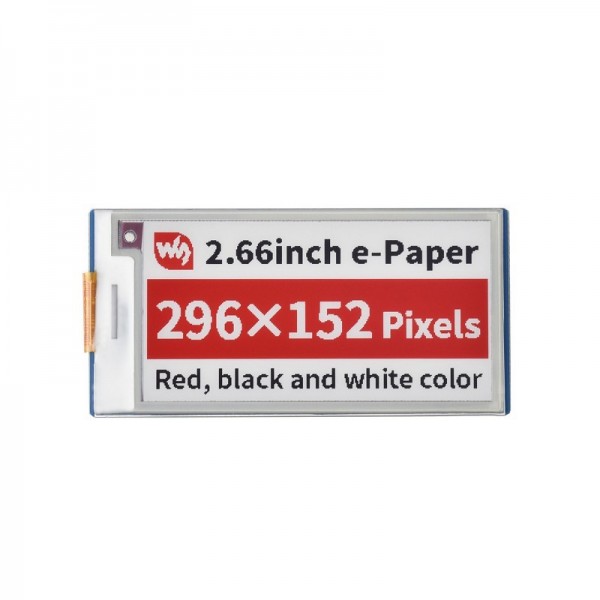

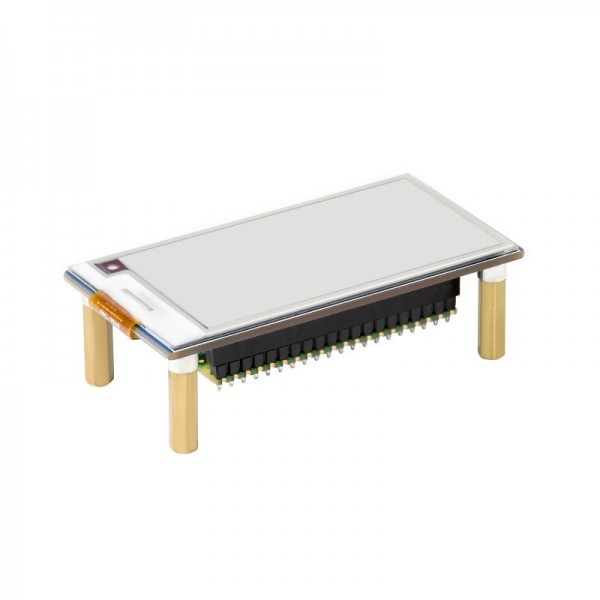

A Waveshare 2.66-inch E-Ink/E-Paper display module with three color pixels (black, white and red). The screen is easily controlled with a Raspberry Pi Pico.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 2.66 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 2.66 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico , WS-20053 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20053
Features	Display
General physical appearance
Main color	Blue
Weight [g]	23

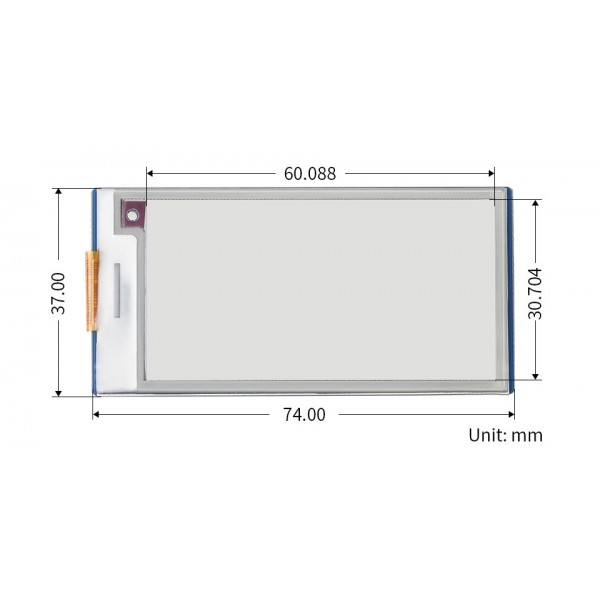

Dimension X [mm]	75
Dimension Y [mm]	37
Mounting options	Pin headers Screw thread
Thread size	M2.5
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	13 (during refresh)
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	2.66
Number of pixels long side	296
Number of pixels short side	152
Pixel colors	Red Black White
Maximum refresh rate [Hz]	0.067
Partial display refresh	No
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Package contents
Package contents	1x Display module 4x Spacer
