Name: Waveshare 2.13 inch SPI E-Ink E-Paper (B) Display - 3 Colors - WS-13448-V3
Brand: Waveshare
SKU: 002619
Price: 19 EUR
Availability: InStock

Waveshare 2.13 inch SPI E-Ink E-Paper (B) Display - 3 Colors

Availability: Directly available from warehouse in Eindhoven
SKU: 002619

Based on 0 review(s) - Write a review

€19.00

Ex Tax: €15.70

10 or more €18.75

20 or more €18.50

50 or more €18.25

100 or more €18.00

Qty

Add to Cart

Add to wishlist

Only 1 piece in stock

Description
Reviews

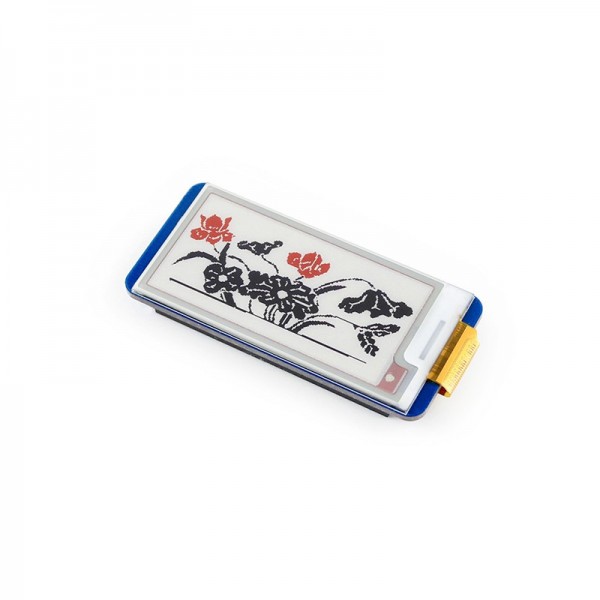

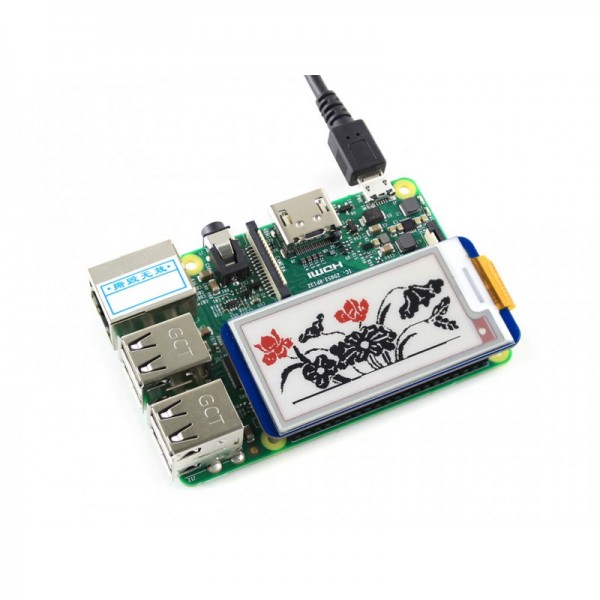

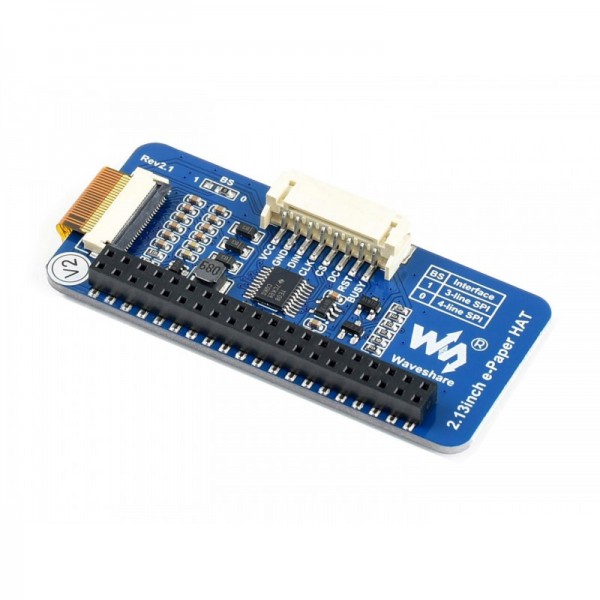

A Waveshare 2.13 inch E-Ink/E-Paper HAT (B) display module with three color pixels (black, white and red). The screen is easy to control, for example with Arduino or Raspberry Pi* via an SPI interface.

*Note: Raspberry Pi (or Arduino) is not included

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 2.13 inch SPI E-Ink E-Paper (B) Display - 3 Colors

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 2.13 inch SPI E-Ink E-Paper (B) Display - 3 Colors , WS-13448-V3 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	13448
Model revision	V3
Features	Display
General physical appearance
Main color	Blue
Weight [g]	14

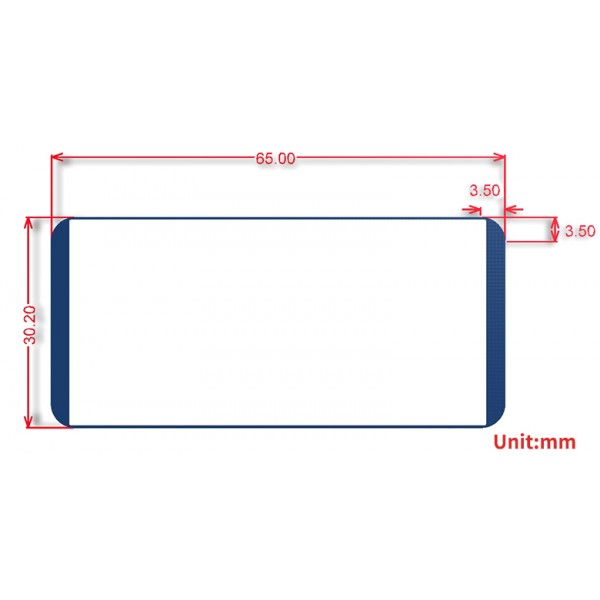

Dimension X [mm]	65
Dimension Y [mm]	31
Mounting options	Pin headers
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	8 (during refresh)
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	2.13
Number of pixels long side	212
Number of pixels short side	104
Pixel colors	Red Black White
Maximum refresh rate [Hz]	0.067
Partial display refresh	No
Connectors
Power supply connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
IO-connector(s)	JST-PH (compatible) male Pin header female (2.54mm)
Package contents
Package contents	1x Display module 1x 8-pin JST-PH to DuPont Female cable
