Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico

Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
2-4 Weeks
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico
  • Availability: 2-4 Weeks
  • SKU: 004820
Based on 1 review(s) - Write a review
€14.50
Ex Tax: €11.98
10 or more €14.25
20 or more €14.00
Add to Cart
Add to wishlist

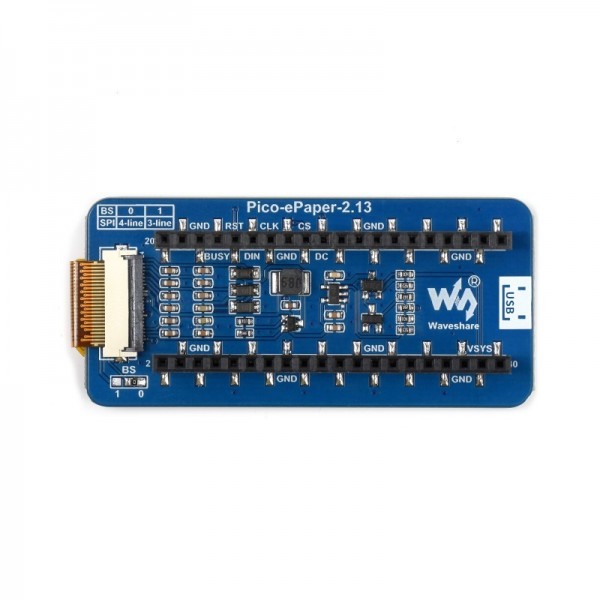

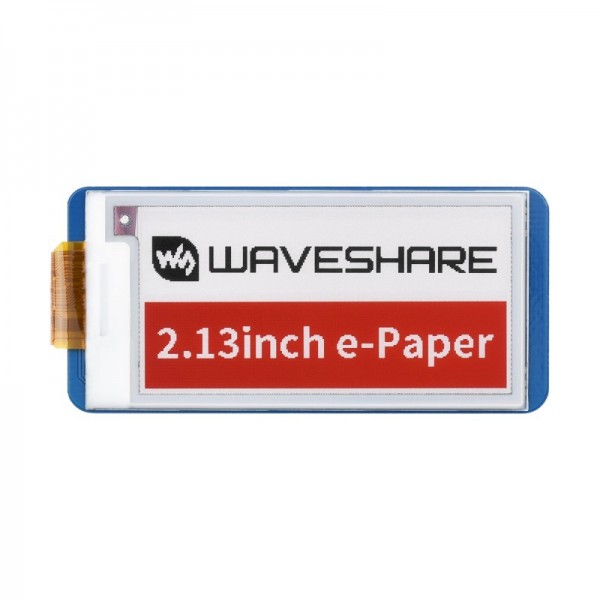

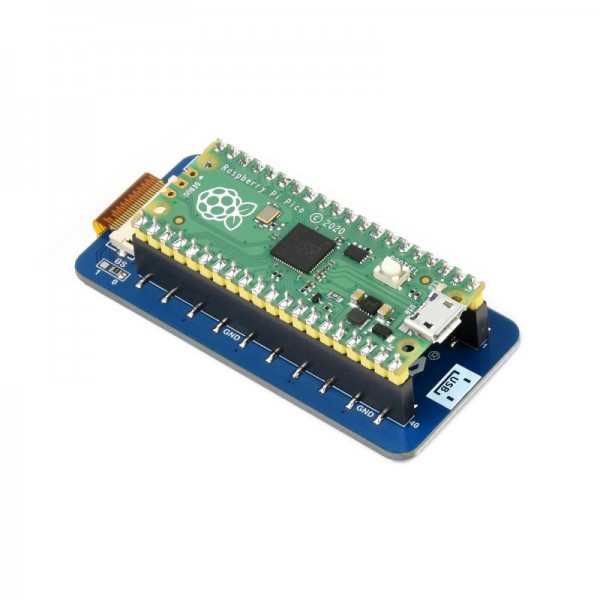

A Waveshare 2.13 inch E-Ink/E-Paper display module with three color pixels (black, white and red). The display is easy to use as a shield for the Raspberry Pi Pico.

See the following page for more information: Wiki

Please login or register to review
Tags: Waveshare 2.13 inch E-Ink E-Paper Display (B) - 3 Colors - for Raspberry Pi Pico , WS-19588 , E-Ink

Specifications

General
Brand Waveshare
Manufacturer model/SKU 19588
Features Display
General physical appearance
Main color Blue
Weight [g] 16
Dimension X [mm] 66
Dimension Y [mm] 31
Mounting options Pin headers
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Indication average current consumption [mA] 8
Indication (deep-)sleep current [μA] 0.01
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Display
Type E-paper
Screen diagonal [inch] 2.13
Number of pixels long side 250
Number of pixels short side 122
Pixel colors Red
Black
White
Maximum refresh rate [Hz] 0.067
Partial display refresh No
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Package contents
Package contents 1x Display module
