Name: Waveshare 12.48 inch E-Ink E-Paper Display (B) - 3 Colors - Black-White-Red - WS-17299
Brand: Waveshare
SKU: 006273
Price: 215 EUR
Availability: InStock

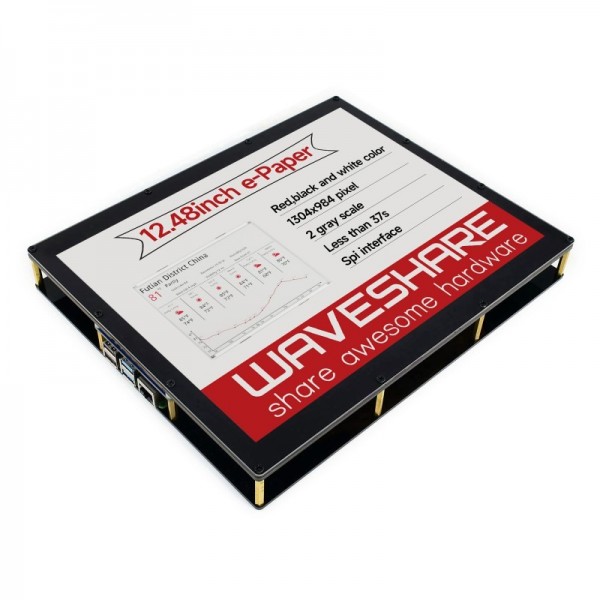

Waveshare 12.48 inch E-Ink E-Paper Display (B) - 3 Colors - Black-White-Red

Availability: Directly available from warehouse in Eindhoven
SKU: 006273

Based on 0 review(s) - Write a review

€215.00

Ex Tax: €177.69

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

An E-Ink/E-Paper display from Waveshare with three color pixels. The display is compatible with Raspberry Pi and various microcontrollers (including ESP32 and Arduino).

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 12.48 inch E-Ink E-Paper Display (B) - 3 Colors - Black-White-Red

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 12.48 inch E-Ink E-Paper Display (B) - 3 Colors - Black-White-Red , WS-17299 , E-Ink

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	17299
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Display Enclosure
General physical appearance
Main color	Black
Weight [g]	682 (including case)
Dimension X [mm]	280
Dimension Y [mm]	230
Dimension Z [mm]	36
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	25 (during refresh)
Indication (deep-)sleep current [μA]	0.01
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Display
Type	E-paper
Screen diagonal [inch]	12.48
Number of pixels long side	1304
Number of pixels short side	984
Display shape	Rectangular
Pixel colors	Red Black White
Maximum viewing angle [°]	178
Maximum refresh rate [Hz]	0.027
Partial display refresh	No
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Enclosure
Material	PMMA
Package contents
Package contents	1x 12.48 inch display 2x Dupont female 8p cable 1x Screw driver
