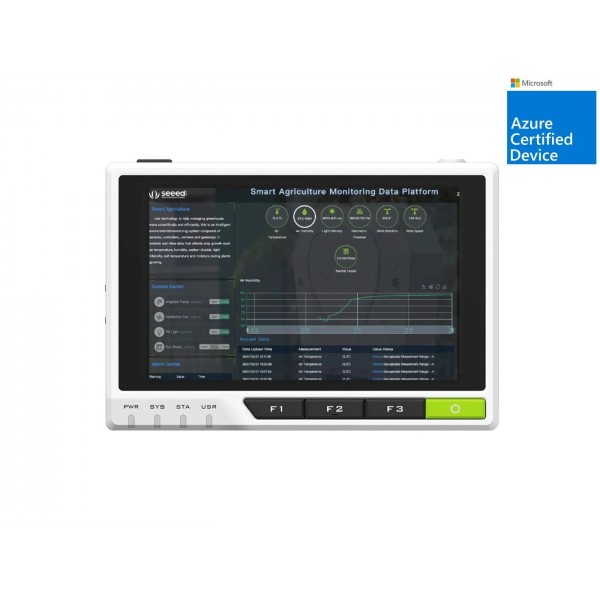

Seeed Studio reTerminal - Raspberry Pi CM4 4GB - 32GB eMMC - 5 inch IPS Display with Capacitive Touch Screen

The reTerminal from Seeed Studio is a high-end single board computer (SBC) with a 5 inch LCD display with touchscreen and a built-in Raspberry Pi CM4, ideal for IoT solutions, for example. This reTerminal also has integrated Wi-Fi, Bluetooth and Ethernet, making it easy to connect to the internet and the cloud.

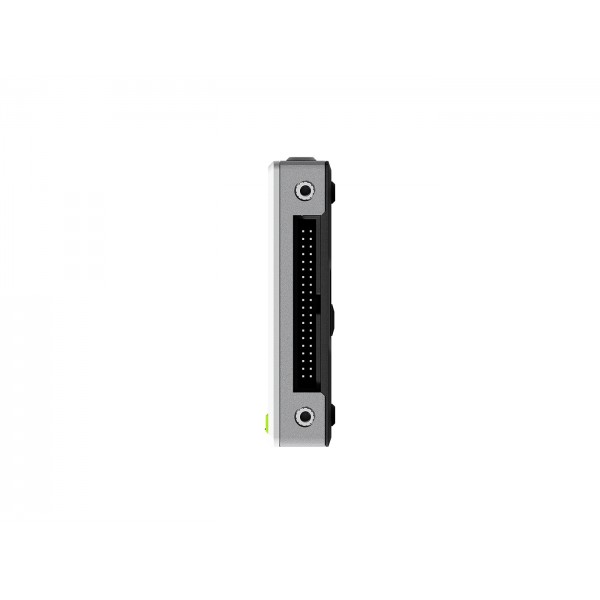

On the side is a Raspberry Pi 40-Pin compatible GPIO connection so that Raspberry Pi accessories can also be used. Finally, there is also an expansion module available specifically for the reTerminal: reTerminal E10-1

Specifications:

• Supply voltage: 5V DC (via USB-C)
• Minimum supply current: 1A (3A recommended)
• GPIO voltage: 3.3V
• Chipset: Broadcom BCM2711 Quad-core Cortex-A72 (Raspberry Pi CM4)
  • Clock Frequency: 1.5GHz
  • Flash memory: 32GB
  • SDRAM: 4GB
• Wireless connection:
  • 2.4 and 5.0GHz Wi-Fi
  • BLE 5.0 Bluetooth

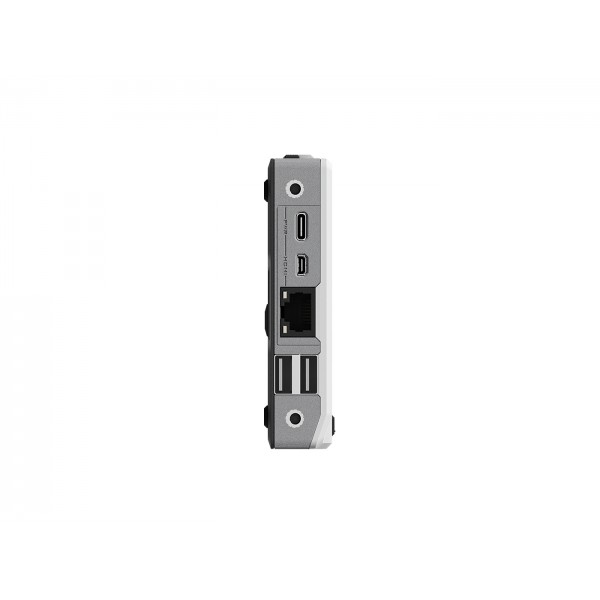

• Interface:
  • 40x Raspberry Pi Compatible pins
  • 1x 15p FFC MIPI CSI (Raspberry Pi compatible camera connection)
  • 1x Micro HDMI (up to 4K 60Hz)
  • 1x USB-C (power supply and flashing software)
  • 2x USB-A 2.0 port
  • 1x Ethernet port
  • 1x PCIe 1-lane host, gen 2
  • 1x MicroSD card adapter
• Display:
  • Screen diagonal: 5 inch
  • Resolution: 720x1280 pixels
  • Type: IPS
  • Touchscreen: Capacitive multi-touch
• User Interface:
  • 4x Programmable buttons
  • On-off switch
• Built-in modules:
  • RTC: NXP PCF8563T
  • Accelerometer: LIS3DHTR
  • Encryption: ATECC608A
  • Light sensor: LTR-303ALS-01
  • Internal IO Expansion: MCP23008-E

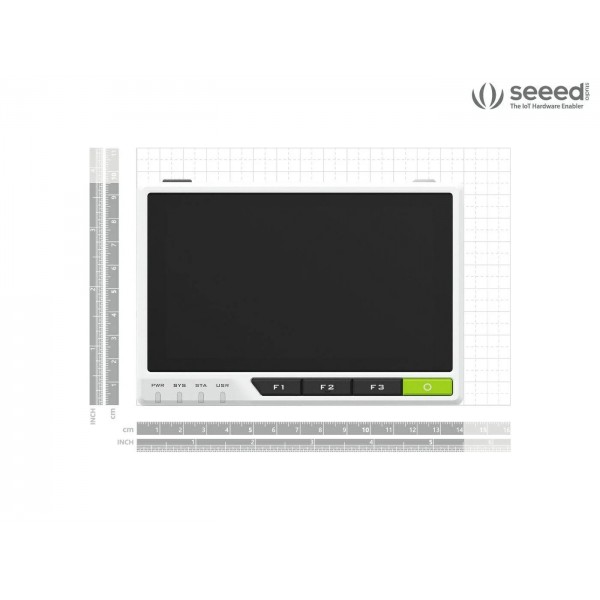

• Dimensions: 140 x 95 x 21mm

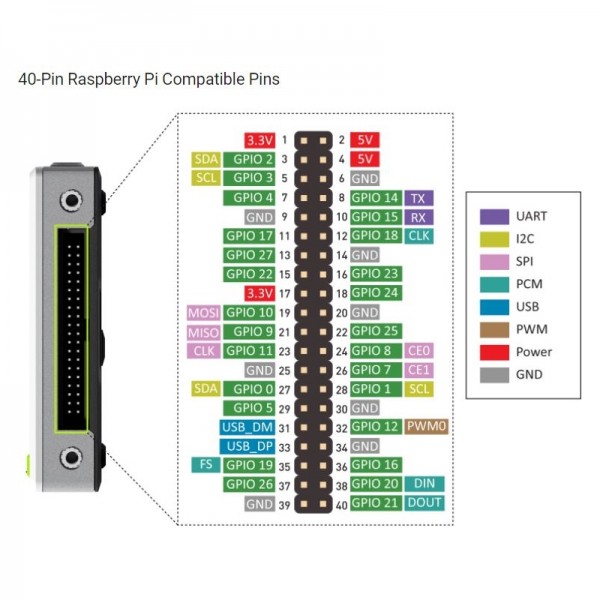

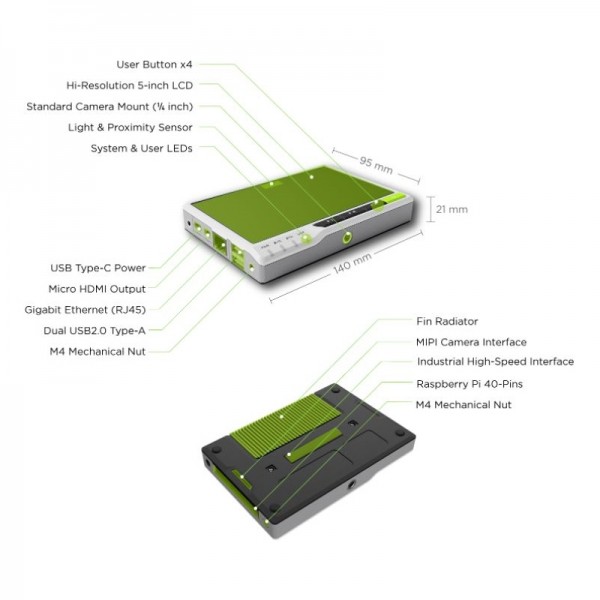

 See the images for the pin-out and an overview of the reTerminal.

Package contents:

• 1x Seeed Studio reTerminal
• 1x Screwdriver
• 1x Mounting material

*Note: No power supply is included.

See the following page for more information: Seeed Studio reTerminal.

See the following video for a review, unboxing, and machine learning demo on this product: reTerminal Review, Unboxing, Machine Learning Demos.
