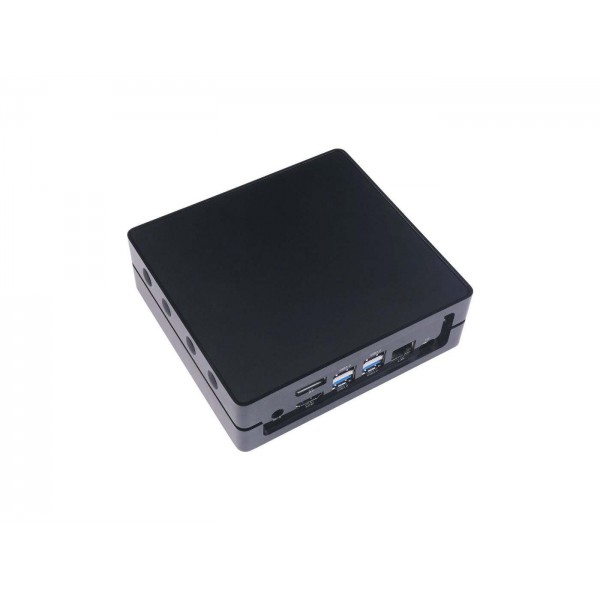

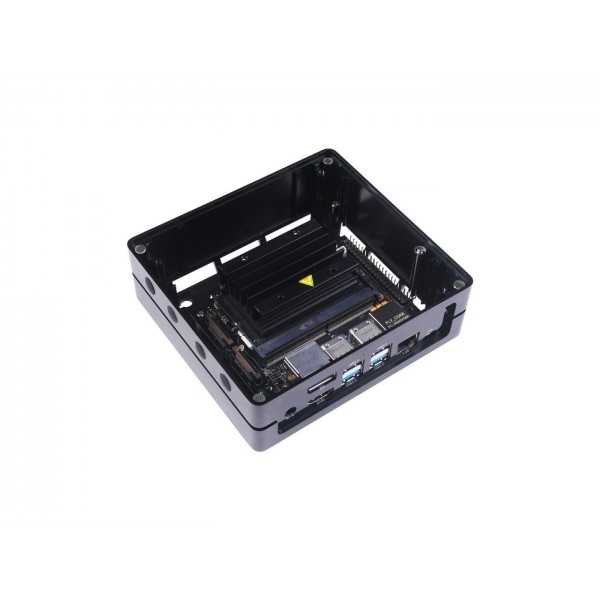

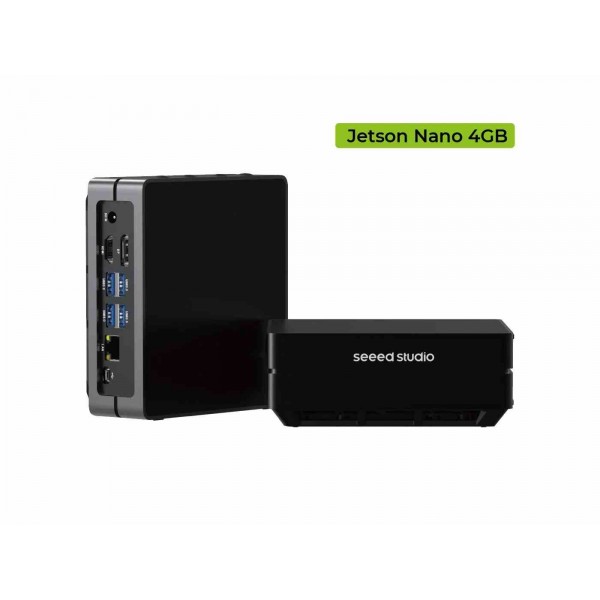

Seeed Studio reComputer J1020 - Edge AI Device with Jetson Nano module

A powerful single board computer (SBC) from Seeed Studio based on the NVIDIA Jetson series. The board comes with official NVIDIA JetPack software preinstalled.

Specifications:

• Supply voltage: 12V DC
• Power connector: DC-Jack 5.5mm
• Minimum recommended supply current: 2A
• CPU:
  • Chip: ARM A57
  • Number of cores: 4
  • Clock Frequency: 1.43GHz
• GPU:
  • Chip: NVIDIA Maxwell™
  • Number of cores: 128
• Memory:
  • RAM: 4GB
  • Flash: 16GB (eMMC)

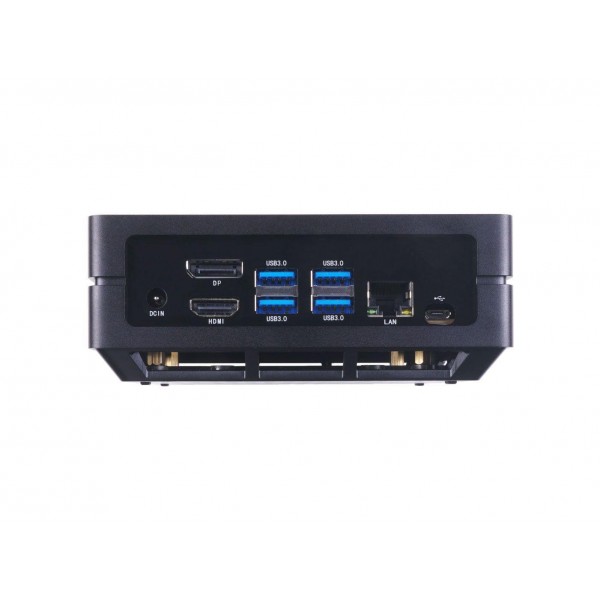

• Interfaces:
  • Camera: CSI
  • Display: HDMI, DisplayPort
  • USB: 4x USB-A 3.0, 1x Micro USB (for Device mode)
  • Expansion connector: M.2 Key M
  • Ethernet: 10/100/1000Mbps
  • Number of GPIO pins: 28
  • GPIO voltage: 3.3V

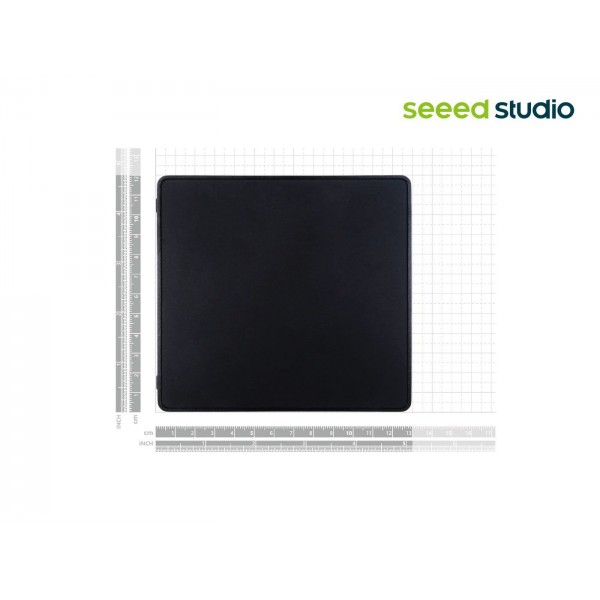

• Dimensions: 130 x 120 x 50mm

Package contents:

• 1x reComputer J1020 - Edge AI Device with Jetson Nano module
• 1x Power adapter - 12V DC

See the following page for more information: reComputer J1020
