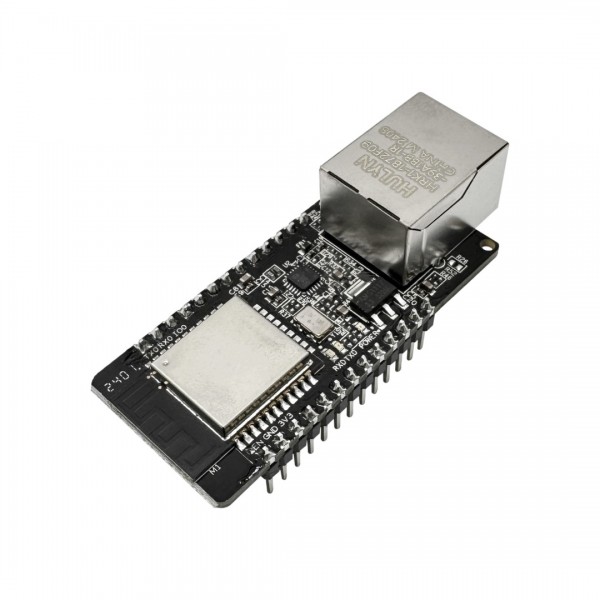

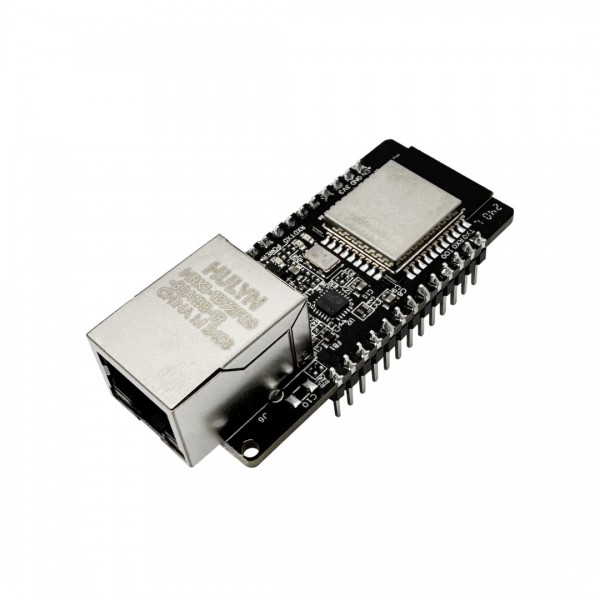

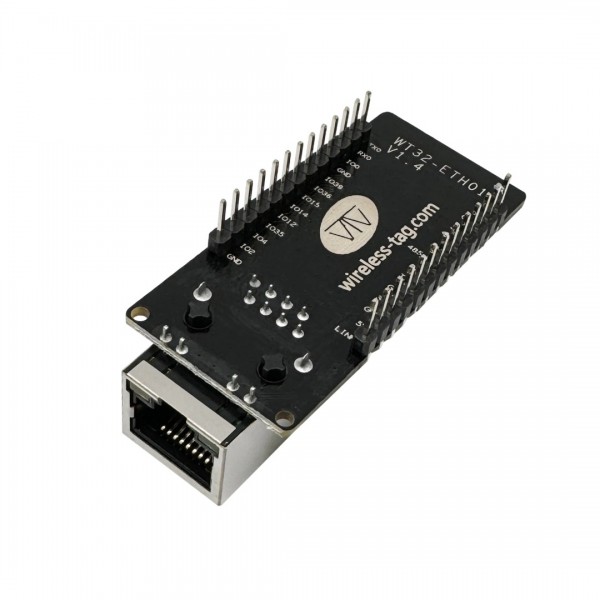

A development board based on an ESP32 with also an Ethernet connection. With this board you can make connections via Wi-Fi, Bluetooth and Ethernet.

See the tabs "Downloads" for the datasheet of the WT32-S1 chip, a manual of the WT32-ETH01 development board and an Arduino IDE sample code to get ethernet up and running.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over WT32-ETH01 ESP32 Ethernet Development Board - with Wi-Fi and Bluetooth - Bottom Headers

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006083_WT32-S1-DataSheet-V1.1.pdf

Manual: 006083_WT32-ETH01_manual.pdf

Arduino IDE example: 006083_WT32-ETH01_test_code.ino

Tags: WT32-ETH01 ESP32 Ethernet Development Board - with Wi-Fi and Bluetooth - Bottom Headers , WT32-ETH01-ESP32ETHMOD-H , With Bluetooth

Specifications

General
Brand	Wireless-tag
Manufacturer model/SKU	WT32-ETH01
Model revision	V1.4
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Microcontroller
General physical appearance
Main color	Black
Weight [g]	15
Dimension X [mm]	55
Dimension Y [mm]	25
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO Ethernet
Number of IO-pins	15
Maximum available hardware PWM channels	12
Maximum available analog input pins (ADC)	11
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	None
Ethernet chip/SoC	LAN8720
Maximum ethernet transfer speed [Mbit/s]	100
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm) RJ45 female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x WT32-ETH01
