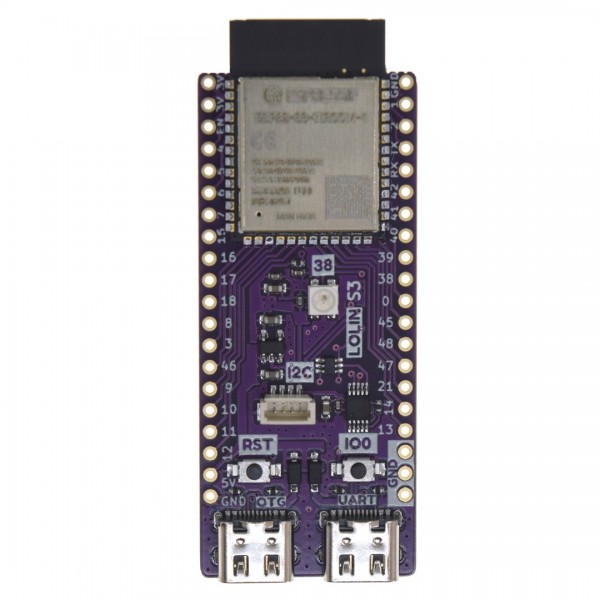

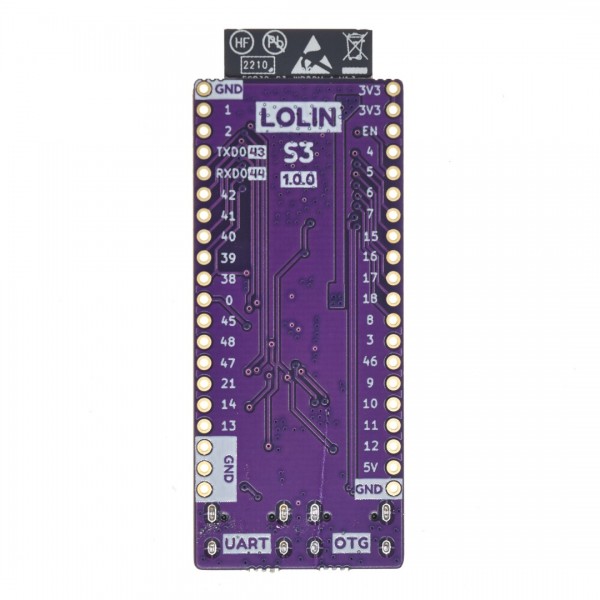

Wemos S3 - ESP32-S3

Wemos S3 - ESP32-S3
Wemos S3 - ESP32-S3
2-4 Weeks
Wemos S3 - ESP32-S3
Wemos S3 - ESP32-S3
Wemos S3 - ESP32-S3
  • Availability: 2-4 Weeks
  • SKU: 004672
Based on 0 review(s) - Write a review
€11.00
Ex Tax: €9.09
10 or more €10.75
20 or more €10.50
50 or more €10.25
100 or more €10.00
Add to Cart
Add to wishlist

See the following page for more information: Wiki

Please login or register to review

Reviews Over Wemos S3 - ESP32-S3

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , Wemos S3 - ESP32-S3 , 004672 , LOLIN Wemos , WMS3 , Microcontroller (MCU) , I2C , I2S , SPI , Native USB , UART , PWM , ADC , GPIO , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand LOLIN Wemos
Manufacturer model/SKU
Model revision
Features Microcontroller (MCU)
General physical appearance
Main color Purple
Weight [g] 7
Dimension X [mm] 66
Dimension Y [mm] 26
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 8
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Native USB
Number of IO-pins 31
Maximum available hardware PWM channels 8
Maximum available analog input pins (ADC) 18
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter CH340E
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Connectors
Power supply connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
JST-SH (compatible) male
Through hole solder pin(s) (2.54mm)
Pin distance [mm] 2.54
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents
