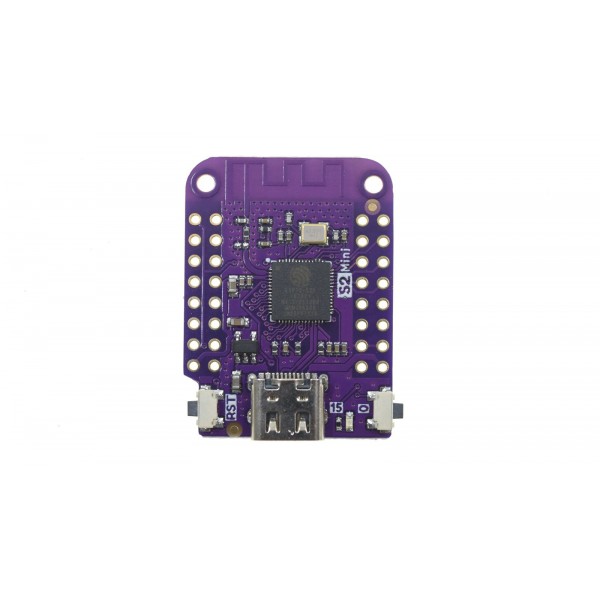

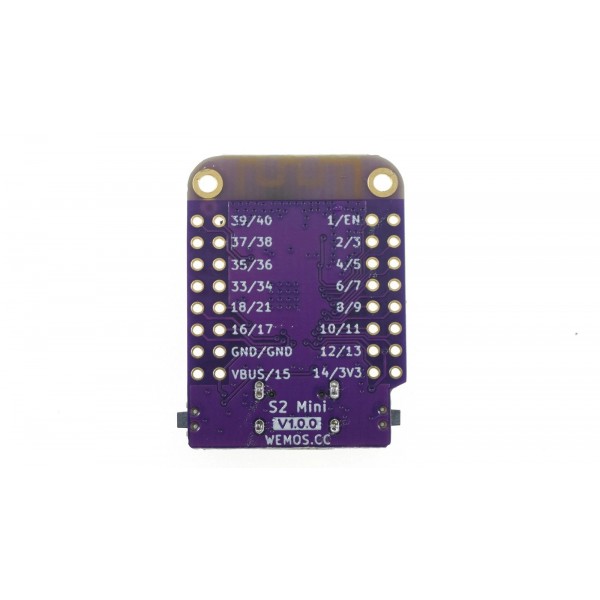

Wemos S2 Mini - ESP32-S2

This Wemos S2 Mini is a new version of the well-known Wemos D1 Mini. The S2 Mini is based on an ESP32-S2 chip, and has about 2x as many GPIO pins as the D1 Mini. The compact design of this module makes it an ideal development board to keep your project small. Because this module has the same form factor as the D1 Mini, most shields can also be used with this module. The Wemos S2 Mini is easy to program in Arduino, MicroPython or ESP-IDF.

Specifications:

• Supply voltage: 3.3V DC (via 3V3 pin) or 5V DC (via USB-C of VBUS pin)
• GPIO voltage: 3.3V
• Micro controller:
  • Chip: ESP32-S2FN4R2
  • Clock Frequency: 240MHz
  • Processor cores: 1
  • ROM: 128kB
  • SRAM: 320kB
  • PSRAM: 2MB
  • Flash memory: 4MB
  • Built-in Wi-Fi
  • Number of GPIO pins: 27
  • Number of PWM pins: 27 (max 8 simultaneously)
  • Number of analog input pins (ADC): 18
  • Number of analog output pins (DAC): 2
• USB to serial converter: Internal in ESP32-S2
• Pin distance: 2.54mm
• Mounting hole diameter: 2mm
• Dimensions PCB: 34.3 x 25.4mm

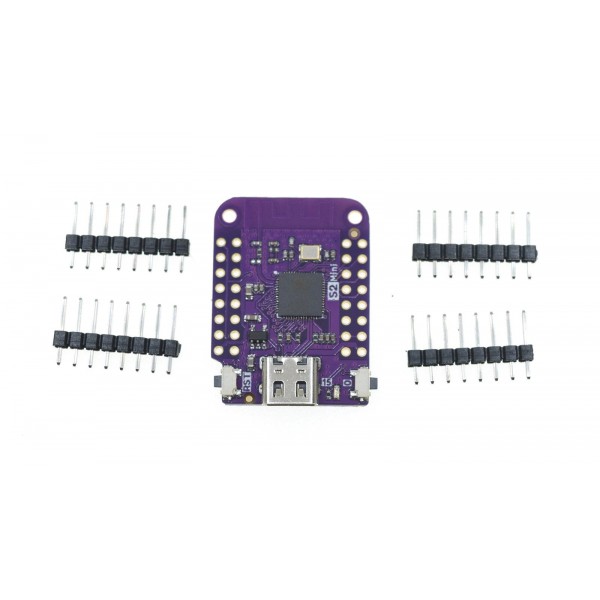

Package contents:

• 1x Wemos S2 Mini
• 1x Male header set

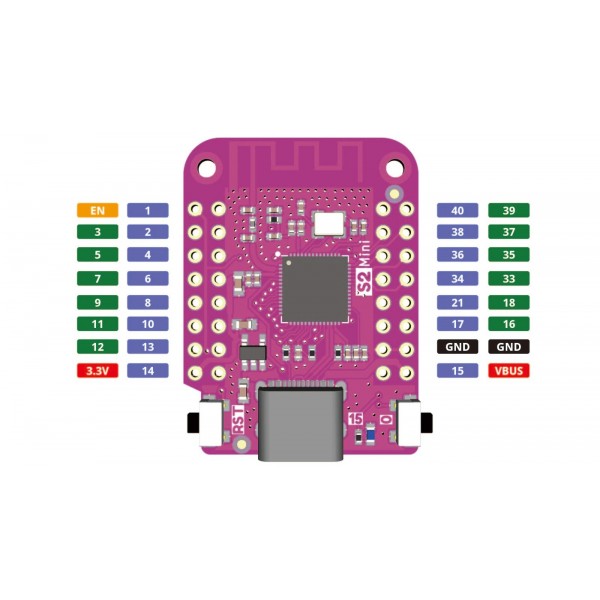

• 1x Pinout sticker

See the following page for more information and tutorials: Wemos S2 Mini.
