Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU

Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
Waveshare ESP32-S3 with 1.28 inch Round IPS Display with Touchscreen and IMU
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005983
€21.00
Ex Tax: €17.36

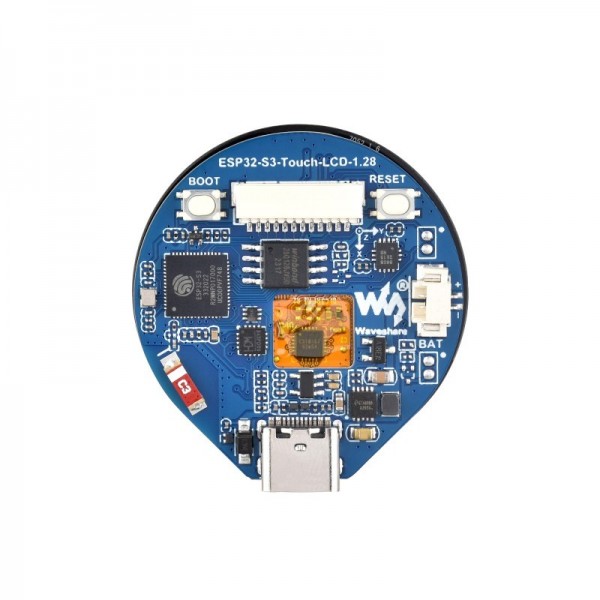

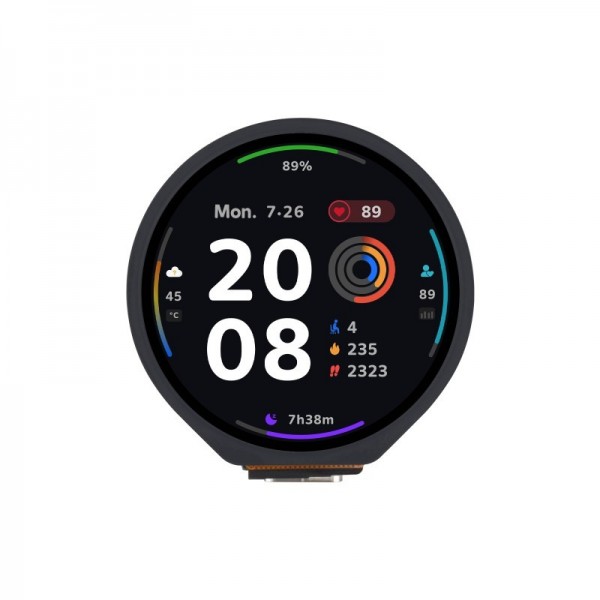

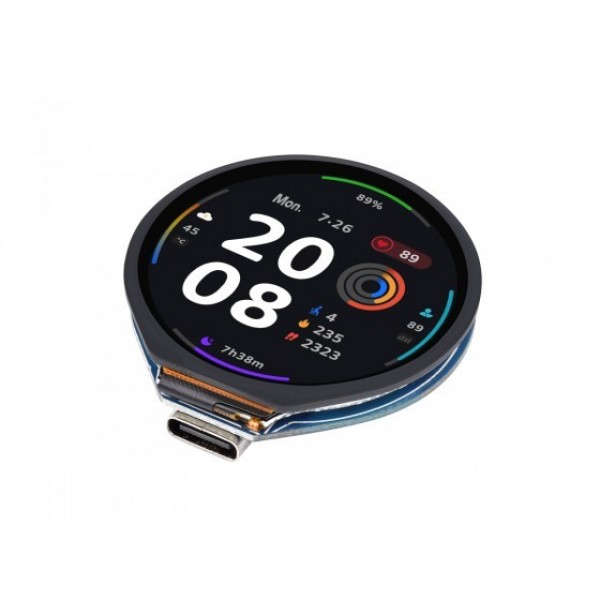

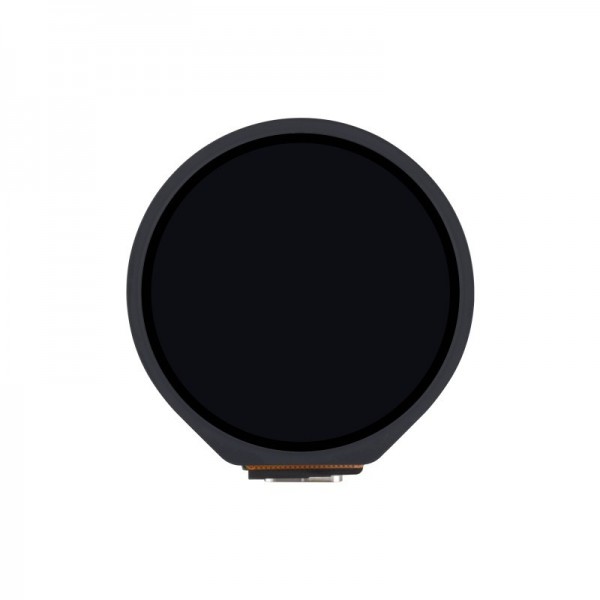

A development board from Waveshare based on the ESP32-S3 chip with a round display and touchscreen. In addition, this module also has a built-in Li-ion/Li-Po charging circuit and an IMU (acceleration sensor and gyroscope).

See the following page for more information: Wiki

Please login or register to review

Specifications

General
Brand Waveshare
Manufacturer model/SKU 25098
Features Display
Gyroscope
Touchscreen
Battery charger
Acceleration sensor
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Blue
Weight [g] 13
Dimension X [mm] 40
Dimension Y [mm] 39
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 2
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Number of IO-pins 7
Maximum available hardware PWM channels 7
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 1
USB to serial converter CH343P
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Display
Type IPS
Driver GC9A01
Screen diagonal [inch] 1.28
Number of pixels long side 240
Number of pixels short side 240
Display shape Round
Pixel colors RGB
Touchscreen
Touchscreen controller CST816S
Touch type Capacitive
Acceleration sensor
Sensor chip/SoC QMI8658A
Degrees of freedom (DOF) 3
Maximum measuring range [±g] 16
Maximum resolution [bit] 16
Gyroscope
Sensor chip/SoC QMI8658A
Degrees of freedom (DOF) 3
Maximum measuring range [±°/s] 2048
Maximum resolution [bit] 16
Battery circuit
Battery charger chip/SoC ETA6096
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 1000
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
JST-SH (compatible) male
IO-connector(s) USB-C female
JST-SH (compatible) male
Battery connector(s) Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x Development board
1x JST-SH female to DuPont female compatible cable 12p
