Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth

Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006728
Based on 0 review(s) - Write a review
€17.00
Ex Tax: €14.05
10 or more €16.75
20 or more €16.50
50 or more €16.25
100 or more €16.00
Add to Cart
Add to wishlist

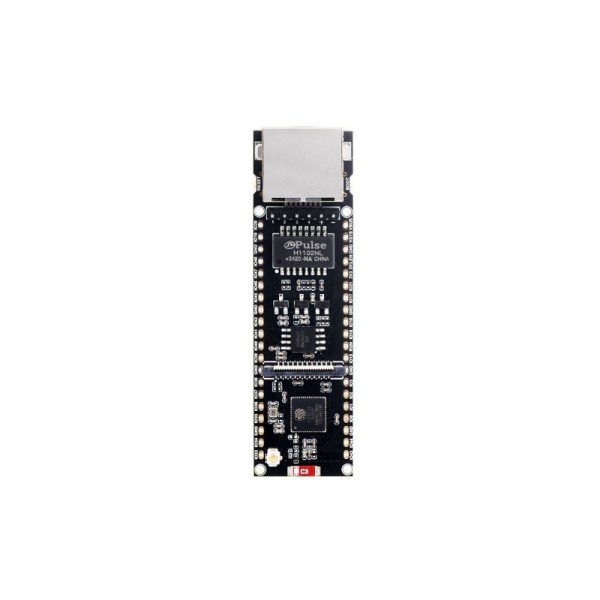

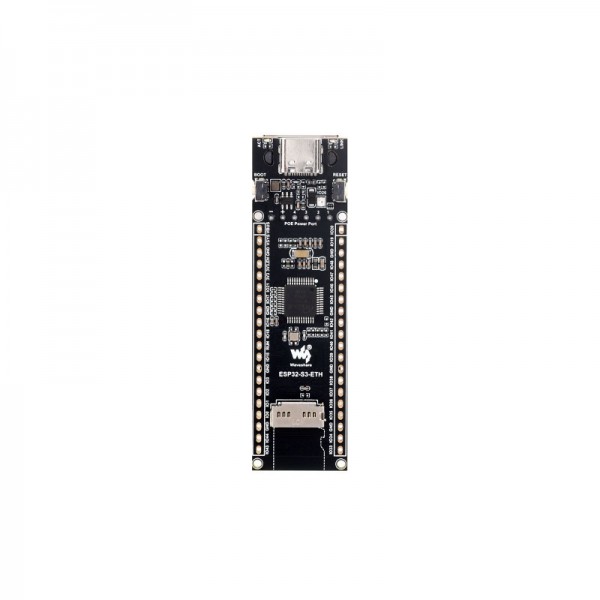

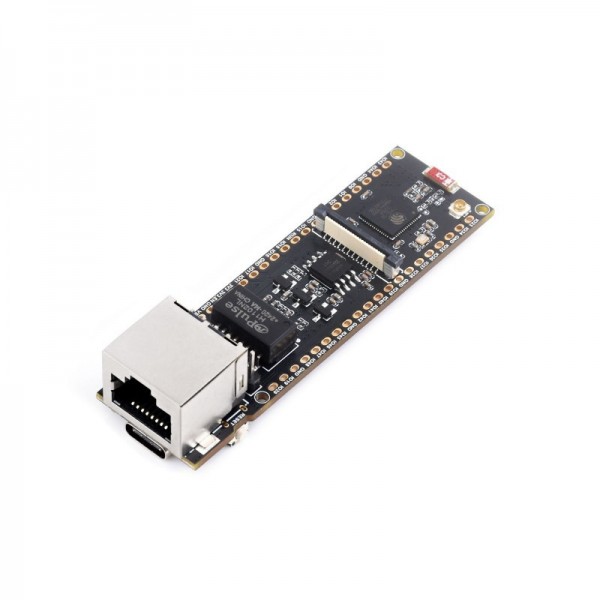

This Ethernet development board from Waveshare is based on the ESP32-S3 chip and supports Wi-Fi, Bluetooth and Ethernet (with optional PoE). Furthermore, this development board also has a camera interface (camera not included) and features Raspberry Pico compatible pin layout.

See the following page for more information: Wiki

Please login or register to review
Tags: Microcontroller Boards , With Bluetooth , Waveshare ESP32-S3-ETH Ethernet Development Board - with Wi-Fi and Bluetooth , 006728 , Waveshare , 28972 , Microcontroller (MCU) , SD-card adapter , I2C , I2S , SPI , Native USB , UART , PWM , ADC , GPIO , Ethernet , USB CDC , USB , Wi-Fi , Bluetooth

Specifications

General
Brand Waveshare
Manufacturer model/SKU 28972
Features SD-card adapter
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 13
Dimension X [mm] 73
Dimension Y [mm] 21
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.6
Form factor Module (general)

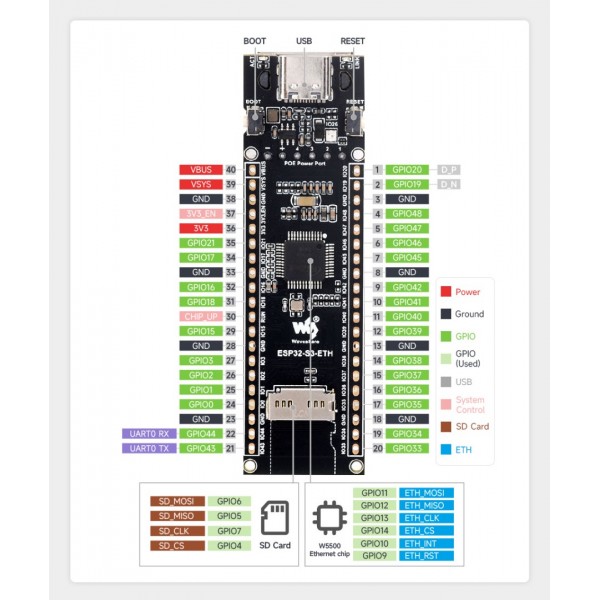

Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 8
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
USB
GPIO
UART
USB CDC
Ethernet
Native USB
Number of IO-pins 27
Maximum available hardware PWM channels 8
Maximum available analog input pins (ADC) 9
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Ethernet chip/SoC W5500
Supported SD card size Micro SD
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Connectors
Power supply connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
IPEX MHF 1/uFL male (requires modification)
Package contents
Package contents 1x ESP32-S3 ETH Ethernet Development Board
2x Male pin header 20p
