Waveshare ESP32-S3 4.3 inch Capacitive Touchscreen LCD-TFT Display Development Board
- Availability: 2-4 Weeks
- SKU: 005959
€36.50
Ex Tax: €30.17

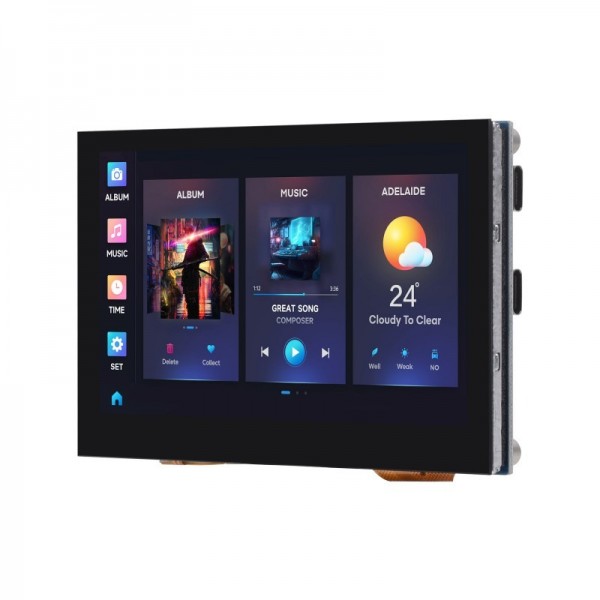

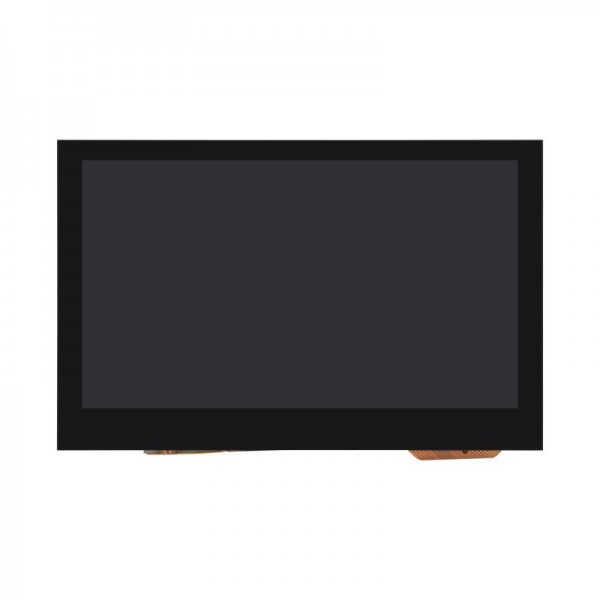

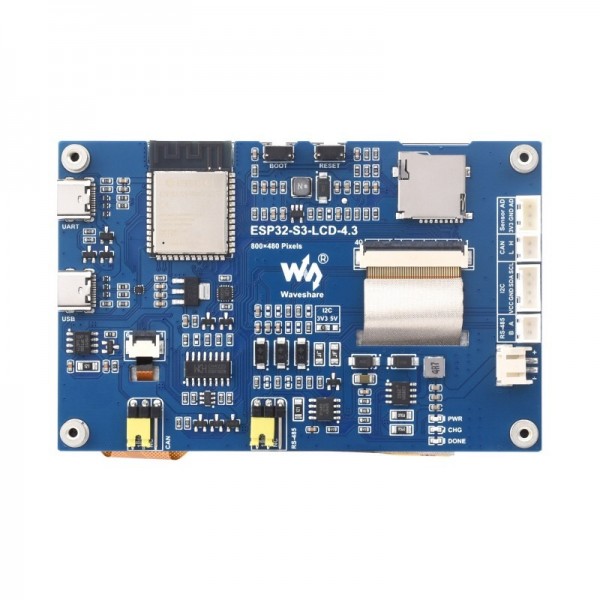

A 4.3 inch TFT display with touchscreen based on an ESP32-S3 microcontroller. It is easy to program via the USB-C connector, including via the Arduino IDE.
See the following page for more information: Wiki
Reviews Over Waveshare ESP32-S3 4.3 inch Capacitive Touchscreen LCD-TFT Display Development Board
This product has 1 review(s) in total.
Report this review.
Tags:
Microcontroller Boards
, With Bluetooth
, Waveshare ESP32-S3 4.3 inch Capacitive Touchscreen LCD-TFT Display Development Board
, 005959
, Waveshare
, 25948
, Battery charger
, Display
, Microcontroller (MCU)
, Touchscreen
, SD-card adapter
, Programmable button(s)
, I2C
, I2S
, Native USB
, UART
, PWM
, ADC
, GPIO
, RS485
, USB CDC
, CAN
, Wi-Fi
, Bluetooth
Specifications
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 25948 |
| Features | Display Touchscreen Battery charger SD-card adapter Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 105 |
| Dimension X [mm] | 106 |
| Dimension Y [mm] | 68 |
| Mounting options | Screw thread |
| Thread size | M2.5 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC CAN I2C I2S PWM GPIO UART RS485 USB CDC Native USB |
| Number of IO-pins | 3 |
| Maximum available hardware PWM channels | 3 |
| Maximum available analog input pins (ADC) | 3 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 1 |
| Maximum available hardware I2C interfaces | 1 |
| Maximum available hardware SPI interfaces | 0 |
| USB to serial converter | CH343P |
| RS485 chip | SP3485 |
| Number of RS485 channels | 1 |
| CAN bus controller | ESP32-S3 |
| CAN bus tranceiver | TJA1051T |
| Number of CAN bus channels | 1 |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Display | |
| Type | TFT |
| Driver | ST7262 |
| Screen diagonal [inch] | 4.3 |
| Number of pixels long side | 800 |
| Number of pixels short side | 480 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | GT911 |
| Touch type | Capacitive |
| Multi-touch support | Yes |
| Battery circuit | |
| Battery charger chip/SoC | CS8501 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 580 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female |
| IO-connector(s) | USB-C female HY2.0 (Grove) male |
| Battery connector(s) | JST-PH (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
| Package contents | 1x 4.3 inch LCD Display 800*480 pixels with Touchscreen - ESP32-S3 4x Spacer M2.5 2x HY2.0 to DuPont male 2p cable 1x HY2.0 to DuPont male 3p cable 1x HY2.0 to DuPont male 4p cable |
