Waveshare ESP32-S2 Pico Development Board - Soldered Headers

Waveshare ESP32-S2 Pico Development Board - Soldered Headers
Waveshare ESP32-S2 Pico Development Board - Soldered Headers
Waveshare ESP32-S2 Pico Development Board - Soldered Headers
Waveshare ESP32-S2 Pico Development Board - Soldered Headers
Waveshare ESP32-S2 Pico Development Board - Soldered Headers
Waveshare ESP32-S2 Pico Development Board - Soldered Headers
Waveshare ESP32-S2 Pico Development Board - Soldered Headers
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004904
Based on 0 review(s) - Write a review
€10.50
Ex Tax: €8.68
Add to Cart
Add to wishlist

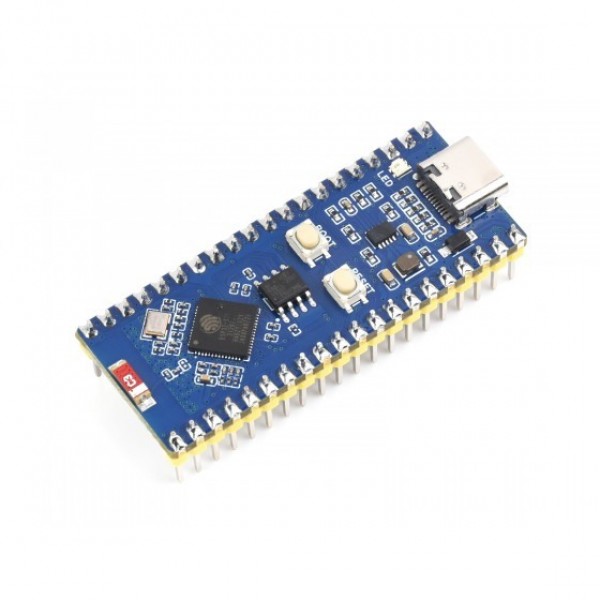

This microcontroller from Waveshare, based on the ESP32-S2 chip, has the same form factor as the Raspberry Pi Pico. This makes it possible to use this module with most accessories made for the original Pico.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare ESP32-S2 Pico Development Board - Soldered Headers

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Wi-Fi , Waveshare ESP32-S2 Pico Development Board - Soldered Headers , 004904 , Waveshare , 21178 , Microcontroller (MCU) , I2C , I2S , SPI , Native USB , UART , PWM , ADC , DAC , GPIO , USB CDC , Wi-Fi

Specifications

General
Brand Waveshare
Manufacturer model/SKU
Features Microcontroller (MCU)
General physical appearance
Main color Blue
Weight [g] 8
Dimension X [mm] 51
Dimension Y [mm] 21
Mounting options Pin headers
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S2
Maximum clock frequency [MHz] 240
Number of cores 1
Internal memory
SRAM [KB] 320
PSRAM [MB] 8
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Native USB
Number of IO-pins 26
Maximum available hardware PWM channels 8
Maximum available analog input pins (ADC) 15
Maximum available analog output pins (DAC) 1
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Wi-Fi chip/SoC ESP32-S2
Wi-Fi frequency [GHz] 2.4
Connectors
Power supply connector(s) USB-C female
Pin header male (2.54mm)
IO-connector(s) USB-C female
Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents
