Waveshare ESP32 One - Mini Development Board - with Camera

Availability: Directly available from warehouse in Eindhoven
SKU: 004779

Based on 0 review(s) - Write a review

€19.50

Ex Tax: €16.12

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

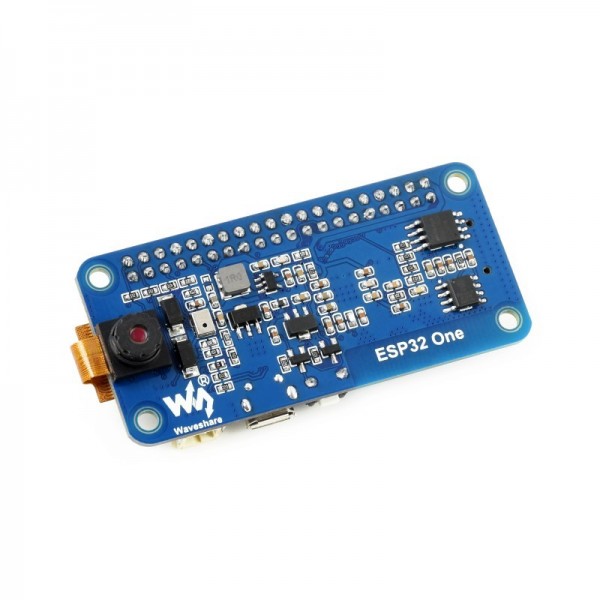

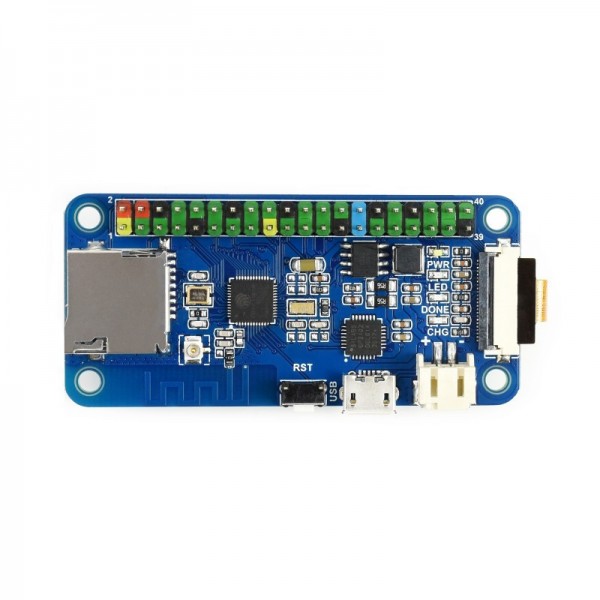

A development board based on an ESP32 microcontroller from Waveshare with the form factor of a Raspberry Pi SBC. Due to this form factor, the module can be placed and used directly on many Raspberry Pi HATs. The module itself has a camera, microphone, battery circuit and SD card adapter built in.

Note: There is no BOOT button on the module, so GPIO 0 may need to be wired to GND to program the module.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare ESP32 One - Mini Development Board - with Camera

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare ESP32 One - Mini Development Board - with Camera , WS-19186 , With Bluetooth

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	19186
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Camera Microphone Battery charger SD-card adapter Microcontroller (MCU)
General physical appearance
Main color	Blue
Weight [g]	14

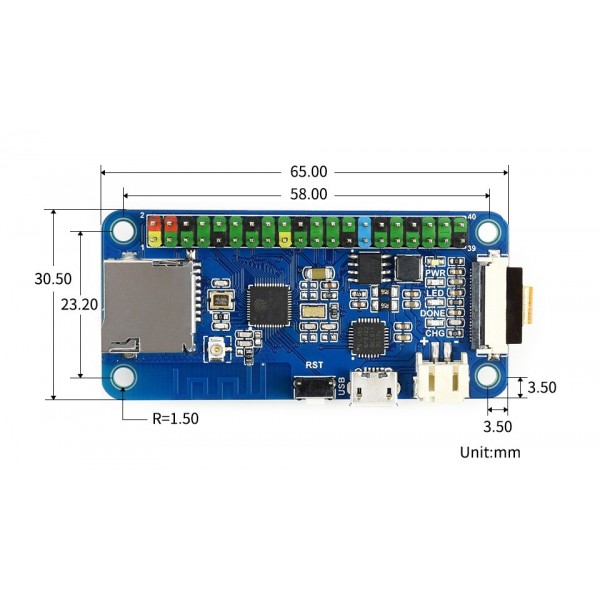

Dimension X [mm]	65
Dimension Y [mm]	31
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	8
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC DAC I2C I2S PWM SPI GPIO UART USB CDC
Number of IO-pins	26
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	18
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CP2102
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Scanner/camera
Type	Camera
Sensor(chip)	OV2640
Lense type	Normal
Number of pixels long side	1600
Number of pixels short side	1220
Maximum frame rate [Hz]	15
Sound sensor
Sensor (chip(s))	MSM261S4030H0R
Type	Microphone
Battery circuit
Battery charger chip/SoC	TP5410 (compatible)
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	1000
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Micro USB female Pin header male (2.54mm)
IO-connector(s)	Micro USB female Pin header male (2.54mm)
Battery connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)
Package contents

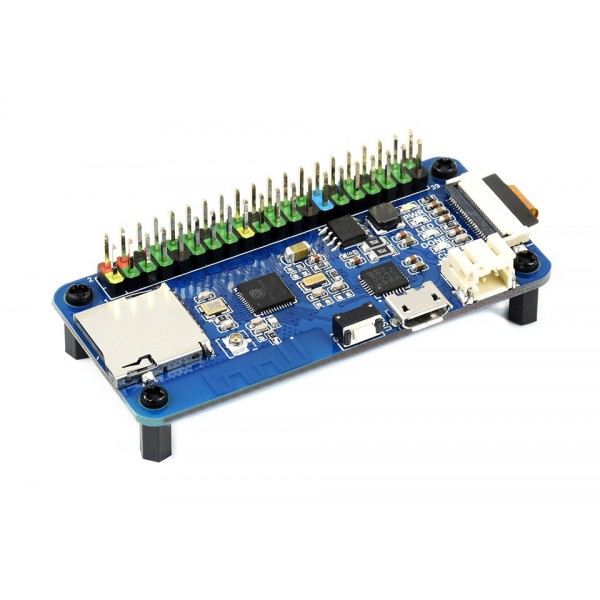

Package contents	1x Waveshare ESP32 One 1x Camera 1x USB-A to micro USB cable 4x Spacer 2x Spacer with outer thread 4x Bolt
