Unexpected Maker TinyPICO V3 - ESP32 Development Board - USB-C - uFL Antenna Connector

Availability: Directly available from warehouse in Eindhoven
SKU: 005773

Based on 0 review(s) - Write a review

€19.50

Ex Tax: €16.12

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

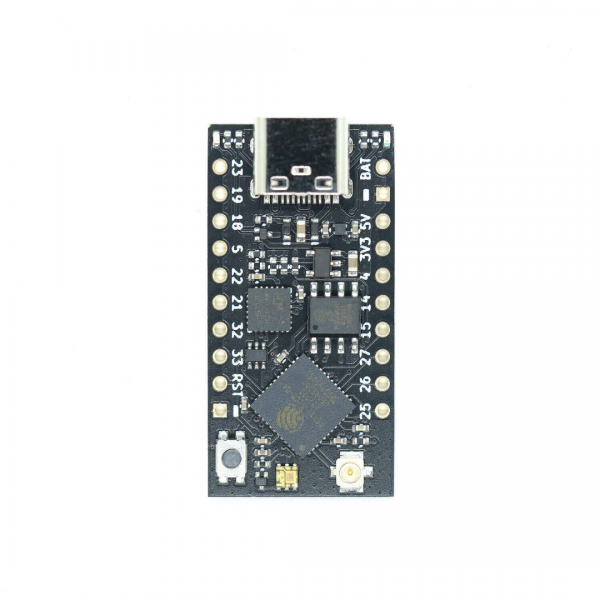

This development board is an ESP32 PICO-D4 based board with Wi-Fi and Bluetooth. The USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connector with which it can be programmed and/or powered (USB cable not included). The board can be programmed with Arduino, MicroPython and Espressif IDF. This version of the board has a u.FL connector for an external Wi-Fi/Bluetooth antenna.

Note: No Wi-Fi/Bluetooth antenna is included, this can be ordered separately: 2.4GHz Antenna with uFL

See the following page for more information: Wiki

Please login or register to review

Reviews Over Unexpected Maker TinyPICO V3 - ESP32 Development Board - USB-C - uFL Antenna Connector

Average Rating:

This product has 0 review(s) in total.

Tags: Unexpected Maker TinyPICO V3 - ESP32 Development Board - USB-C - uFL Antenna Connector , TP-U-01 , With Bluetooth

Specifications

General
Brand	Unexpected Maker
Manufacturer model/SKU	TP-U-01
Model revision	V3
Features	Battery charger Microcontroller Digital LED(s)
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	35
Dimension Y [mm]	18
Form factor	Module (general) TinyPICO layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Indication (deep-)sleep current [μA]	20
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-PICO
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	4
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC
Number of IO-pins	14
Maximum available hardware PWM channels	14
Maximum available analog input pins (ADC)	8
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH9102F
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-PICO
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-PICO
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
LED
LED (driver) chip	APA102
LED color	RGB
Battery circuit
Battery charger chip/SoC	TP4065
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	300
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
Battery connector(s)	Solder pad(s) Through hole solder pin(s) (2.54mm) (separate JST-PH connector for solder pads included)
Wi-Fi/Bluetooth antenna connector	IPEX MHF 1/uFL male
Package contents
Package contents	1x TinyPICO V3 2x Male pinheader 10p 1x JST-PH SMD battery connector 1x Pinout card
