Unexpected Maker TinyC6 - ESP32-C6 Development Board - USB-C

Availability: Directly available from warehouse in Eindhoven
SKU: 005825

Based on 0 review(s) - Write a review

€16.25

Ex Tax: €13.43

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

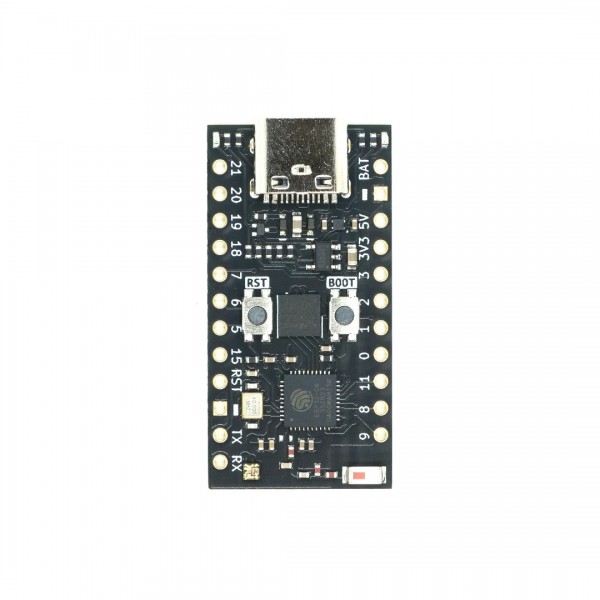

This development board is an ESP32-C6 based board with Wi-Fi, Bluetooth, Zigbee and Thread support. The board has a USB-C connector with which it can be programmed and/or powered (USB cable not included). The board can be programmed with Arduino, MicroPython and Espressif IDF.

See the following page for more information: GitHub

Please login or register to review

Reviews Over Unexpected Maker TinyC6 - ESP32-C6 Development Board - USB-C

Average Rating:

This product has 0 review(s) in total.

Tags: Unexpected Maker TinyC6 - ESP32-C6 Development Board - USB-C , TC6-01 , With Bluetooth

Specifications

General
Brand	Unexpected Maker
Manufacturer model/SKU	TC6-01
Features	Digital LED(s) Battery charger Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	35
Dimension Y [mm]	18
Form factor	Module (general) TinyPICO layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-C6
Maximum clock frequency [MHz]	160
Number of cores	1
Internal memory
SRAM [KB]	512
PSRAM [MB]	0
Flash memory [MB]	8
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC
Number of IO-pins	17
Maximum available hardware PWM channels	7
Maximum available analog input pins (ADC)	6
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Thread Zigbee Bluetooth
Wi-Fi chip/SoC	ESP32-C6
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C6
Bluetooth version	5.3
Supported Bluetooth standard(s)	LE
Zigbee chip/SoC	ESP32-C6
Zigbee frequency [GHz]	2.4
Thread chip/SoC	ESP32-C6
LED
LED (driver) chip	WS2812B
LED color	RGB
Battery circuit
Battery charger chip/SoC	TP4065
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	300
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female Through hole solder pin(s) (2.54mm)
IO-connector(s)	USB-C female Through hole solder pin(s) (2.54mm)
Battery connector(s)	Solder pad(s) Through hole solder pin(s) (2.54mm) (separate JST-PH connector for solder pads included)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Zigbee/Thread antenna connector	Built-in antenna
Package contents
Package contents	1x TinyC6 1x Male pinheader 11p 1x Male pinheader 12p 1x JST-PH SMD battery connector 1x Pinout card
