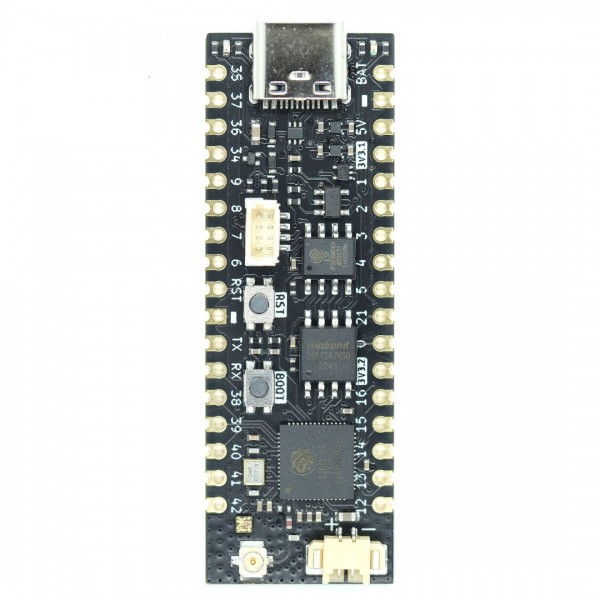

Unexpected Maker ProS3 - ESP32-S3 Development Board - USB-C - uFL Antenna Connector
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005824
€23.00
Ex Tax: €19.01
This development board is an ESP32-S3 based board with Wi-Fi and Bluetooth. The board has a USB-C connector with which it can be programmed and/or powered (USB cable not included). The board can be programmed with Arduino, MicroPython and Espressif IDF. This version of the board has a u.FL connector for an external Wi-Fi/Bluetooth antenna.
Note: No Wi-Fi/Bluetooth antenna is included, this can be ordered separately: 2.4GHz Antenna with uFL
Note: A battery adapter cable is included, however, the colors and pin orientation are not universal. So always check whether the pinout of the battery matches that of the module.
See the following page for more information: Wiki
Reviews Over Unexpected Maker ProS3 - ESP32-S3 Development Board - USB-C - uFL Antenna Connector
This product has 0 review(s) in total.
Report this review.
Tags:
Microcontroller Boards
, With Bluetooth
, Unexpected Maker ProS3 - ESP32-S3 Development Board - USB-C - uFL Antenna Connector
, 005824
, Unexpected Maker
, PS3-U-01
, Battery charger
, Microcontroller (MCU)
, Programmable button(s)
, Digital LED(s)
, I2C
, I2S
, SPI
, Native USB
, UART
, PWM
, ADC
, GPIO
, USB CDC
, Wi-Fi
, Bluetooth
Specifications
| General | |
| Brand | Unexpected Maker |
| Manufacturer model/SKU | PS3-U-01 |
| Features | Digital LED(s) Battery charger Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 4 |
| Dimension X [mm] | 52 |
| Dimension Y [mm] | 18 |
| Mounting options | SMT |
| Form factor | Module (general) TinyPICO layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 27 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 14 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Light source | |
| Type | LED |
| LED (driver) chip | WS2812B |
| Light color | RGB |
| Battery circuit | |
| Battery charger chip/SoC | TP4065 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 300 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | USB-C female Solder pin(s) (SMT) JST-SH (compatible) male Through hole solder pin(s) (2.54mm) |
| Battery connector(s) | Solder pin(s) (SMT) Molex Picoblade (compatible) male Through hole solder pin(s) (2.54mm) |
| Wi-Fi/Bluetooth antenna connector | IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x ProS3 2x Male pin header 17p 1x JST-PH to Picoblade adapter cable 1x Pinout card |
