Unexpected Maker FeatherS3 - ESP32-S3 Development Board - USB-C

On request

Unexpected Maker FeatherS3 - ESP32-S3 Development Board - USB-C

Availability: On request
SKU: 006132

Based on 0 review(s) - Write a review

€21.00

Ex Tax: €17.36

Qty

Add to Cart

Add to wishlist

Not in stock

Alternative in stock: Unexpected Maker FeatherS3[D] - ESP32-S3 Development Board

Description
Reviews

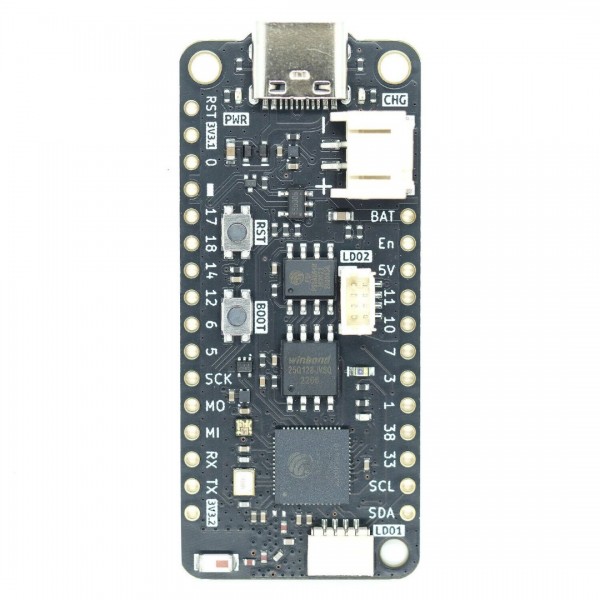

This development board is an ESP32-S3 based board with Wi-Fi and Bluetooth. The board has a USB-C connector with which it can be programmed and/or powered (USB cable not included). The board can be programmed with Arduino, MicroPython and Espressif IDF.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Unexpected Maker FeatherS3 - ESP32-S3 Development Board - USB-C

Average Rating:

This product has 0 review(s) in total.

Tags: Unexpected Maker FeatherS3 - ESP32-S3 Development Board - USB-C , FS3-01 , With Bluetooth

Specifications

General
Brand	Unexpected Maker
Manufacturer model/SKU	FS3-01
Features	Light sensor Digital LED(s) Battery charger Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	4
Dimension X [mm]	52
Dimension Y [mm]	23
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.5
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	23
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	15
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
LED
LED (driver) chip	WS2812B
LED color	RGB
Light sensor
Sensor (chip)	ALS-PT19
Measurable light	Visible
Light sensor type	Light intensity
Battery circuit
Battery charger chip/SoC	TP4065
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	350
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female Through hole solder pin(s) (2.54mm)
IO-connector(s)	USB-C female JST-SH (compatible) male Through hole solder pin(s) (2.54mm)
Battery connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x FeatherS3 1x Male pin header 12p 1x Male pin header 16p
