Name: Smart Panlee Rotary Switch Screen - 2.1 inch IPS-TFT Display - Rotary Encoder - ESP32-S3 - ZX2D10GE01R-V4848
SKU: 005387
Price: 43.75 EUR
Availability: InStock

Smart Panlee Rotary Switch Screen - 2.1 inch IPS-TFT Display - Rotary Encoder - ESP32-S3

Availability: Directly available from warehouse in Eindhoven
SKU: 005387

Based on 0 review(s) - Write a review

€43.75

Ex Tax: €36.16

10 or more €43.25

20 or more €42.75

50 or more €42.25

100 or more €41.75

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

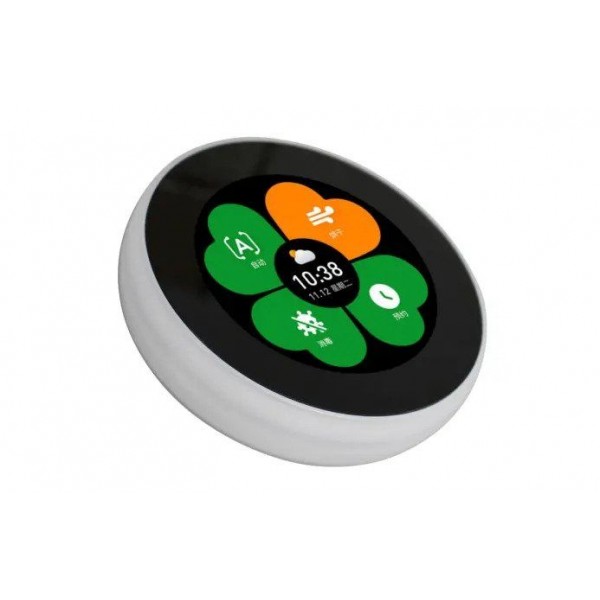

The Panlee Smart Panel is a programmable smart panel powered by the ESP32-S3. This compact panel has a 2.1 inch display, a rotary encoder and a push button.

The module can be programmed via the Arduino IDE and micropython (amongst others). In addition, you can easily design interfaces via this tool: 8ms (at the top right you can switch to English, creating an account is required).
The tool generates C code based on the LVGL library with a graphical interface, which can be used in, for example, Arduino IDE projects.

Note: The USB data lines are not connected to the ESP32-S3. Therefore, the module requires an external USB to serial converter for programming: Smart Panlee ZXACC-ESPDB

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Smart Panlee Rotary Switch Screen - 2.1 inch IPS-TFT Display - Rotary Encoder - ESP32-S3

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005387_ZX2D10GE01R-V4848Datasheet.pdf

Tags: Smart Panlee Rotary Switch Screen - 2.1 inch IPS-TFT Display - Rotary Encoder - ESP32-S3 , ZX2D10GE01R-V4848 , With Wi-Fi

Specifications

General
Brand	Smart Panlee
Manufacturer model/SKU	ZX2D10GE01R-V4848
Features	Display Microcontroller Touchscreen Enclosure Vibration motor Programmable button(s) Rotary encoder Digital LED(s)
General physical appearance
Main color	White
Weight [g]	76
Dimension X [mm]	80
Dimension Y [mm]	80
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.5
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	4
Maximum available hardware PWM channels	4
Maximum available analog input pins (ADC)	4
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	None (use ZXACC-ESPDB)
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Display
Type	IPS
Driver	ST7701S
Screen diagonal [inch]	2.1
Number of pixels long side	480
Number of pixels short side	480
Display shape	Round
Pixel colors	RGB
LED
LED (driver) chip	XT1603 (WS2812 compatible)
LED color	RGB
Number of LEDs	13
Rotary encoder
Encoder type	Incremental
Encoder technology	Hall effect
Number of detent positions	0
Connectors
Power supply connector(s)	Molex Picoblade (compatible) male USB-C female
IO-connector(s)	Molex Picoblade (compatible) male Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna

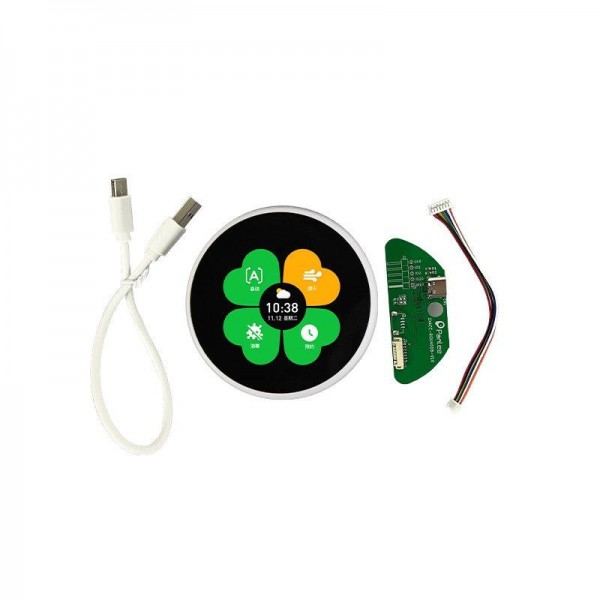

Package contents
Package contents	1x Rotary Switch Screen 1x USB adapter PCB (ZXACC-ROUNDDB) 1x USB-A to USB-C cable 1x Molex Picoblade cable 7p
