Seeed Studio XIAO ESP32-S3 Sense

Availability: Directly available from warehouse in Eindhoven
SKU: 004999

Based on 1 review(s) - Write a review

€17.75

Ex Tax: €14.67

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

A small microcontroller board based on an ESP32-S3. This Sense version of the board includes a camera, digital microphone and micro SD card adapter.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Seeed Studio XIAO ESP32-S3 Sense

Average Rating:

This product has 1 review(s) in total.

Tags: Seeed Studio XIAO ESP32-S3 Sense , SEEED-113991115 , With Bluetooth

Specifications

General
Brand	Seeed Studio
Manufacturer model/SKU	113991115
Features	Camera Microphone Battery charger SD-card adapter Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	6
Dimension X [mm]	21
Dimension Y [mm]	18
Mounting options	SMT
Form factor	Module (general) XIAO/QT layout/shield
General electrical properties
Minimum supply voltage [V DC]	5 (lower possible via battery)
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	8
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	11 (excluding solder pads)
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	9
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Scanner/camera
Type	Camera
Sensor(chip)	OV2640
Lense type	Normal
Number of pixels long side	1600
Number of pixels short side	1220
Maximum frame rate [Hz]	60
Sound sensor
Sensor (chip(s))	MSM261D3526H1CPM
Type	Microphone
Battery circuit
Supported battery chemistry	Li-Po Li-ion
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	110
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	USB-C female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm)
IO-connector(s)	USB-C female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm)
Battery connector(s)	Wire solder pin(s)/pad(s)
Wi-Fi/Bluetooth antenna connector	IPEX MHF 1/uFL male
Package contents

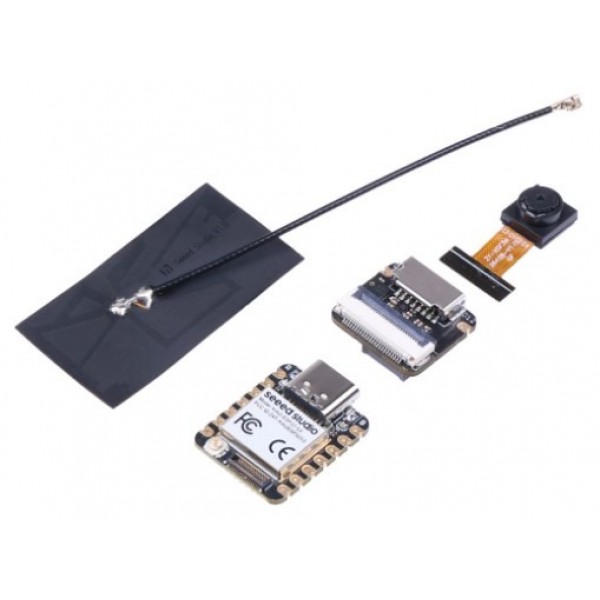

Package contents	1x XIAO ESP32S3 1x Camera sensor board 1x Antenna
