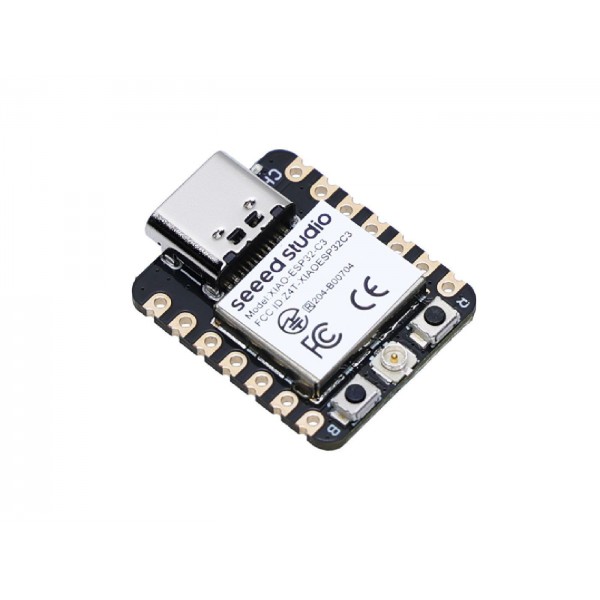

Seeed Studio XIAO - ESP32-C3

Seeed Studio XIAO - ESP32-C3
Seeed Studio XIAO - ESP32-C3
Seeed Studio XIAO - ESP32-C3
Seeed Studio XIAO - ESP32-C3
2-4 Weeks
Seeed Studio XIAO - ESP32-C3
Seeed Studio XIAO - ESP32-C3
Seeed Studio XIAO - ESP32-C3
Seeed Studio XIAO - ESP32-C3
Seeed Studio XIAO - ESP32-C3
  • Availability: 2-4 Weeks
  • SKU: 004627
Based on 1 review(s) - Write a review
€6.30
Ex Tax: €5.21
10 or more €6.20
20 or more €6.10
50 or more €6.00
100 or more €5.90
200 or more €5.80
Add to Cart
Add to wishlist

A small microcontroller based on an ESP32-C3.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Seeed Studio XIAO - ESP32-C3

This product has 1 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , Seeed Studio XIAO - ESP32-C3 , 004627 , Seeed Studio , 113991054 , Programmable button(s) , Microcontroller (MCU) , Battery charger , USB CDC , UART , GPIO , SPI , PWM , I2S , I2C , ADC , Bluetooth , Wi-Fi

Specifications

General
Brand Seeed Studio
Manufacturer model/SKU 113991054
Features Battery charger
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Black
Weight [g] 3

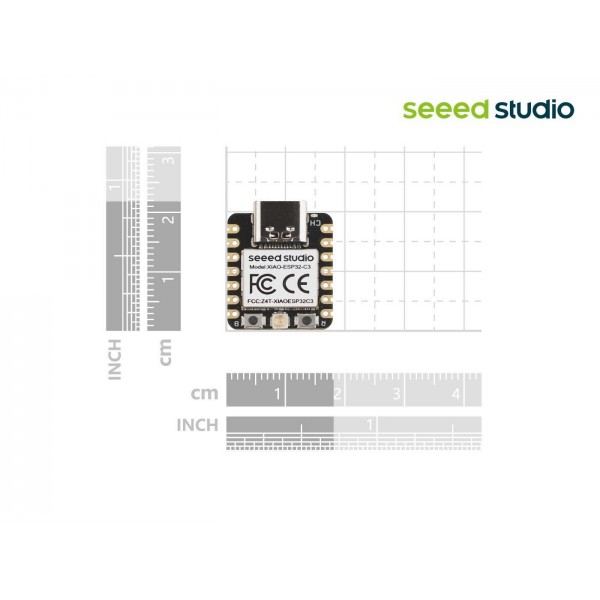

Dimension X [mm] 21
Dimension Y [mm] 18
Mounting options SMT
Form factor Module (general)
XIAO/QT layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-C3
Maximum clock frequency [MHz] 160
Number of cores 1
Internal memory
SRAM [KB] 400
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Number of IO-pins 11
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-C3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Battery circuit
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 350
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Battery connector(s) Wire solder pin(s)/pad(s)
Pin distance [mm] 2.54
Wi-Fi/Bluetooth antenna connector IPEX MHF 1/uFL male
Package contents

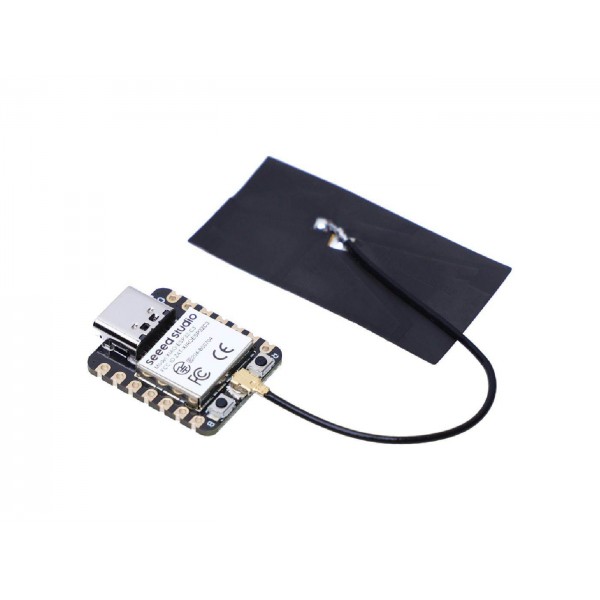

Package contents 1x XIAO ESP32-C3
1x Antenna
