Seeed Studio SenseCAP Indicator D1

Seeed Studio SenseCAP Indicator D1
Seeed Studio SenseCAP Indicator D1
Seeed Studio SenseCAP Indicator D1
2-4 Weeks
Seeed Studio SenseCAP Indicator D1
Seeed Studio SenseCAP Indicator D1
Seeed Studio SenseCAP Indicator D1
Seeed Studio SenseCAP Indicator D1
  • Availability: 2-4 Weeks
  • SKU: 005074
Based on 0 review(s) - Write a review
€62.00
Ex Tax: €51.24
Add to Cart
Add to wishlist

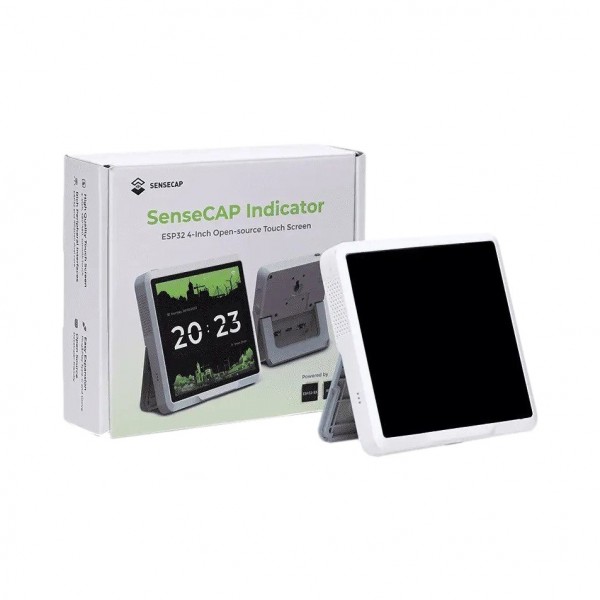

The SenseCAP Indicator is a development board based on an ESP32-S3 and an RP2040 microcontroller. The module has, among other things, a built-in display with touchscreen and Grove ports for connecting sensors. The software is open source (see link below) and both microcontrollers can be reprogrammed.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Seeed Studio SenseCAP Indicator D1

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , Seeed Studio SenseCAP Indicator D1 , 005074 , Seeed Studio , 114993068 , Touchscreen , Enclosure , Display , Microcontroller (MCU) , Speaker/buzzer , ADC , GPIO , I2C , Native USB , PWM , UART , USB CDC , Bluetooth , Wi-Fi

Specifications

General
Brand Seeed Studio
Manufacturer model/SKU 114993068
Norm conformity CE
FCC
RoHS
Minimum operating humidity [%R.H.] 0
Maximum operating humidity [%R.H.] 90
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 50
Features Display
Enclosure
Touchscreen
Speaker/buzzer
Microcontroller (MCU)
General physical appearance
Main color White
Weight [g] 118
Dimension X [mm] 96
Dimension Y [mm] 92
Dimension Z [mm] 19
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 12
Maximum IO-pin sink current [mA] 12
MCU
Manufacturer Raspberry Pi
Espressif
Chip series RP2040
ESP32-S3
Communication
Hardware interface(s) ADC
I2C
PWM
GPIO
UART
USB CDC
Native USB
Number of IO-pins 4
(RP2040)
Maximum available hardware PWM channels 4
Maximum available analog input pins (ADC) 2
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 0
USB to serial converter Integrated into microcontroller
(RP2040)
CH340
(ESP32-S3)
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Display
Type TFT
Screen diagonal [inch] 3.95
Number of pixels long side 480
Number of pixels short side 480
Display shape Square
Pixel colors RGB
Touchscreen
Touch type Capacitive

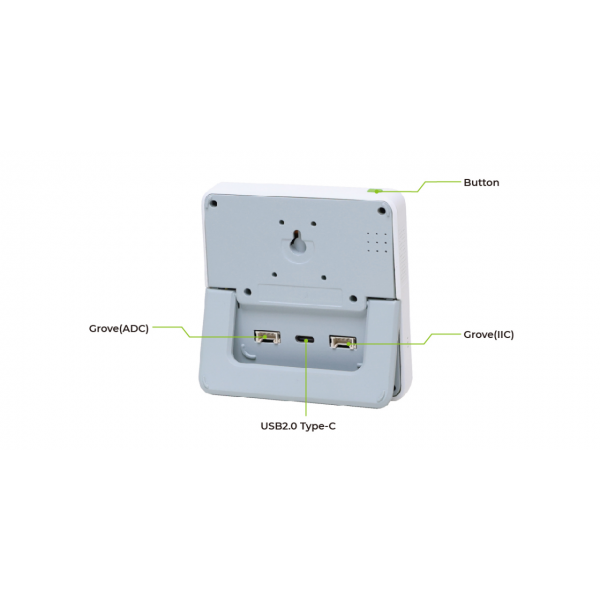

Connectors
Power supply connector(s) USB-C female
IO-connector(s) USB-C female
HY2.0 (Grove) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x SenseCAP D1
1x USB-A to USB-C cable
