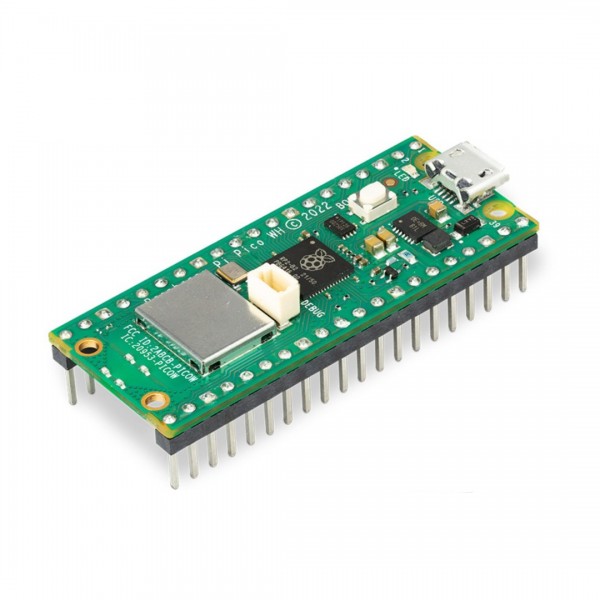

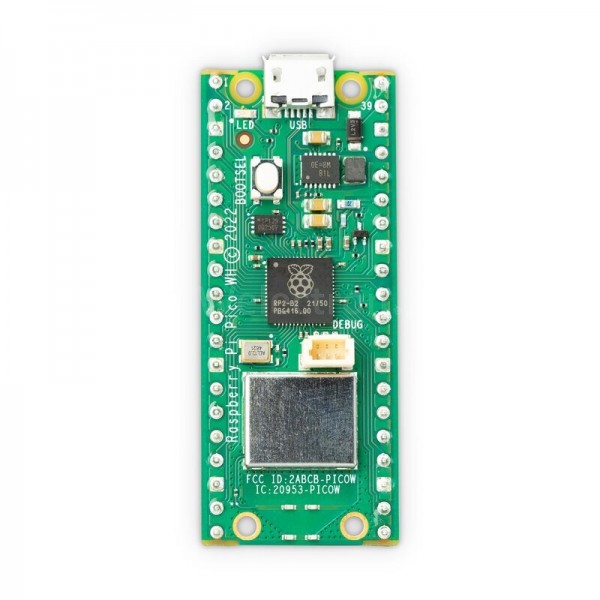

Raspberry Pi Pico WH with Soldered Headers - RP2040

Raspberry Pi Pico WH with Soldered Headers - RP2040
Raspberry Pi Pico WH with Soldered Headers - RP2040
Raspberry Pi Pico WH with Soldered Headers - RP2040
Raspberry Pi Pico WH with Soldered Headers - RP2040
Raspberry Pi Pico WH with Soldered Headers - RP2040
Raspberry Pi Pico WH with Soldered Headers - RP2040
Raspberry Pi Pico WH with Soldered Headers - RP2040
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006268
Based on 0 review(s) - Write a review
€9.25
Ex Tax: €7.64
10 or more €9.00
20 or more €8.75
50 or more €8.50
100 or more €8.25
Add to Cart
Add to wishlist

This is the original Raspberry Pi Pico WH. This module can be programmed in MicroPython, Arduino and other C/C++ languages. Compared to the normal Raspberry Pi Pico, this Pico W(ireless) also has built-in Wi-Fi and Bluetooth, making it ideal for IoT applications. Furthermore, this version has soldered headers and a 3-pin connector for debugging.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Raspberry Pi Pico WH with Soldered Headers - RP2040

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , Raspberry Pi Pico WH with Soldered Headers - RP2040 , 006268 , Raspberry Pi , Microcontroller (MCU) , I2C , SPI , Native USB , UART , PWM , ADC , GPIO , PIO , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand Raspberry Pi
Features Microcontroller (MCU)
General physical appearance
Main color Green
Weight [g] 7
Dimension X [mm] 51
Dimension Y [mm] 21
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.1
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 1.8
(see the datasheet in the link above for more information)
Maximum supply voltage [V DC] 5.5
(see the datasheet in the link above for more information)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 12
Maximum IO-pin sink current [mA] 12
MCU
Manufacturer Raspberry Pi
Chip series RP2040
Maximum clock frequency [MHz] 133
Number of cores 2
Internal memory
SRAM [KB] 258
PSRAM [MB] 0
Flash memory [MB] 2
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
PIO
PWM
SPI
GPIO
UART
USB CDC
Native USB
Number of IO-pins 26
Maximum available hardware PWM channels 16
Maximum available analog input pins (ADC) 3
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC CYW43439
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC CYW43439
Bluetooth version 5.2
Supported Bluetooth standard(s) LE
Classic
Connectors
Power supply connector(s) Micro USB female
Pin header male (2.54mm)
IO-connector(s) Micro USB female
JST-SH (compatible) male
Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x Raspberry Pi Pico WH
