Raspberry Pi Pico 2W - RP2350

Availability: Directly available from warehouse in Eindhoven
SKU: 006795

Based on 0 review(s) - Write a review

€9.25

Ex Tax: €7.64

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

Description
Reviews

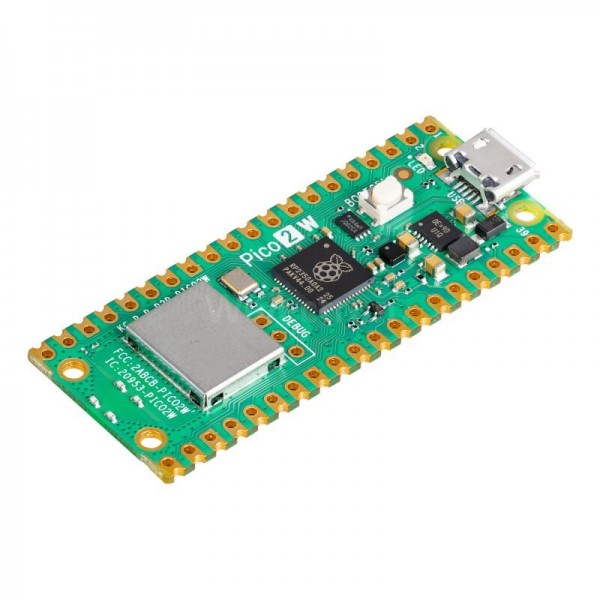

This is the original Raspberry Pi Pico 2. This development board is based on the RP2350 microcontroller which is the successor of the RP2040 from the first Raspberry Pi pico. That makes this board faster and more efficient. This W variant also has Wi-Fi and Bluetooth.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Raspberry Pi Pico 2W - RP2350

Average Rating:

This product has 0 review(s) in total.

Tags: Raspberry Pi Pico 2W - RP2350 , RPIPICO2W , With Bluetooth

Specifications

General
Brand	Raspberry Pi
Manufacturer model/SKU	Pico 2W
Norm conformity	CE RoHS
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	85
Features	Microcontroller (MCU)
General physical appearance
Main color	Green
Weight [g]	4
Dimension X [mm]	51
Dimension Y [mm]	21
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.1
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	1.8 (see the link above for more information)
Maximum supply voltage [V DC]	5.5 (see the link above for more information)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU
Manufacturer	Raspberry Pi
Chip series	RP2350
Maximum clock frequency [MHz]	150
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C PIO PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	26
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	CYW43439
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	CYW43439
Bluetooth version	5.2
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	Micro USB female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm)
IO-connector(s)	Micro USB female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x Pico 2W
