Olimex ESP32-S3-DevKit-Lipo-EA

Availability: Directly available from warehouse in Eindhoven
SKU: 006135

Based on 0 review(s) - Write a review

€18.00

Ex Tax: €14.88

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

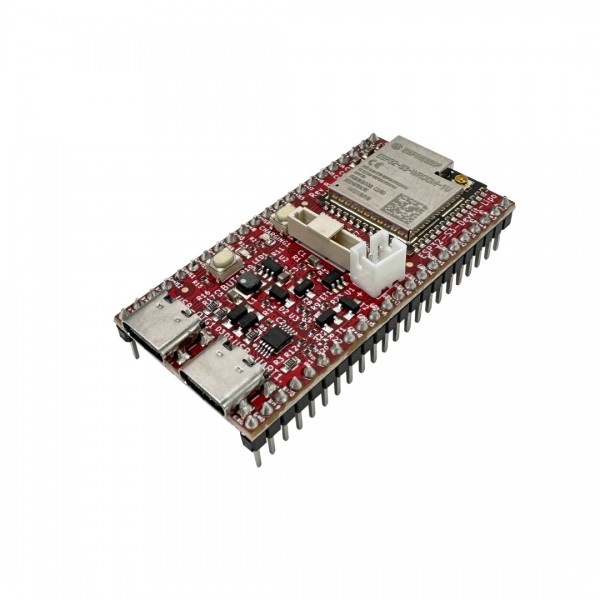

A development board from Olimex based on ESP32-S3. With built-in Wi-Fi and Bluetooth, this board is ideal for IoT applications. The board has two USB-C connections that allow it to be programmed and/or powered (USB cable not included). Also, this board supports Li-ion/Li-Po powering and charging.

This EA version of the board comes with an external antenna.

See the following page for more information: GitHub

Please login or register to review

Reviews Over Olimex ESP32-S3-DevKit-Lipo-EA

Average Rating:

This product has 0 review(s) in total.

Tags: Olimex ESP32-S3-DevKit-Lipo-EA , OL-ESP32-S3-DEVKIT-LIPO-EA , With Bluetooth

Specifications

General
Brand	Olimex
Manufacturer model/SKU	ESP32-S3-DevKit-Lipo-EA
Model revision	B
Norm conformity	RoHS
Features	Battery charger Microcontroller Programmable button(s)
General physical appearance
Main color	Red
Weight [g]	15
Dimension X [mm]	56
Dimension Y [mm]	28
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	8
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	36
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	20
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH340X
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Battery circuit
Battery charger chip/SoC	BL4054B
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	100
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Pin header male (2.54mm) USB-C female
IO-connector(s)	JST-SH (compatible) male Pin header male (2.54mm) USB-C female
Battery connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	IPEX MHF 1/uFL male
Package contents

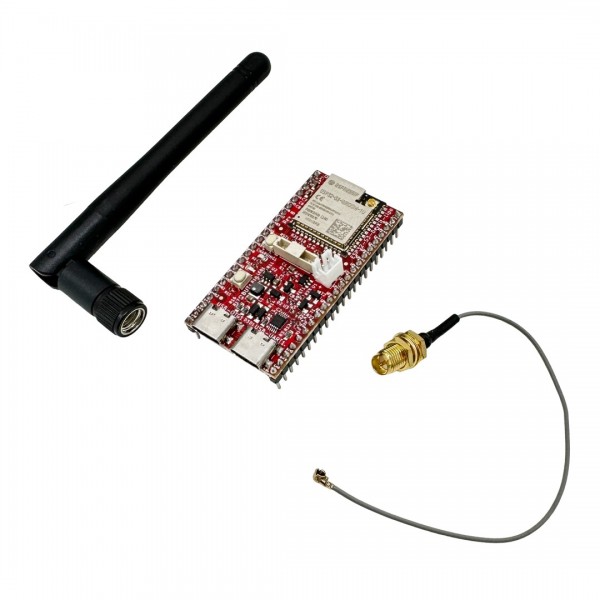

Package contents	1x ESP32-S3-DevKit-Lipo-EA 1x uFL to RP-SMA adapter 1x RP-SMA antenna
