Olimex ESP32-S2-WROVER-DevKit-Lipo-EA
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005383
€12.05
Ex Tax: €9.96
This development board is based on the ESP32-S2-WROVER and is easy to program. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included). This variant has an external antenna.
See the following page for more information: GitHub
Report this review.
Tags:
Microcontroller Boards
, With Wi-Fi
, Olimex ESP32-S2-WROVER-DevKit-Lipo-EA
, 005383
, Olimex
, ESP32-S2-WROVER-DevKit-Lipo-EA
, Battery charger
, Microcontroller (MCU)
, Programmable button(s)
, Digital LED(s)
, I2C
, I2S
, SPI
, Native USB
, UART
, PWM
, ADC
, DAC
, GPIO
, USB CDC
, Wi-Fi
Specifications
| General | |
| Brand | Olimex |
| Manufacturer model/SKU | ESP32-S2-WROVER-DevKit-Lipo-EA |
| Model revision | B1 |
| Norm conformity | RoHS |
| Features | Digital LED(s) Battery charger Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Red |
| Weight [g] | 11 (excl. antenna) |
| Dimension X [mm] | 60 |
| Dimension Y [mm] | 28 |
| Mounting options | Pin headers |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S2 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 1 |
| Internal memory | |
| SRAM [KB] | 320 |
| PSRAM [MB] | 2 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC DAC I2C I2S PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 37 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 20 |
| Maximum available analog output pins (DAC) | 2 |
| Maximum available hardware UART interfaces | 2 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | CH340T |
| Wireless communication | |
| Interface(s) | Wi-Fi |
| Wi-Fi chip/SoC | ESP32-S2 |
| Wi-Fi frequency [GHz] | 2.4 |
| Light source | |
| Type | LED |
| LED (driver) chip | WS2812S |
| Light color | RGB |
| Battery circuit | |
| Battery charger chip/SoC | BL4054B |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 455 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | Micro USB female Pin header male (2.54mm) |
| IO-connector(s) | Mini USB female Pin header male (2.54mm) |
| Battery connector(s) | JST-PH (compatible) male |
| Wi-Fi/Bluetooth antenna connector | IPEX MHF 1/uFL male Built-in antenna (requires modification) |
| Package contents | |

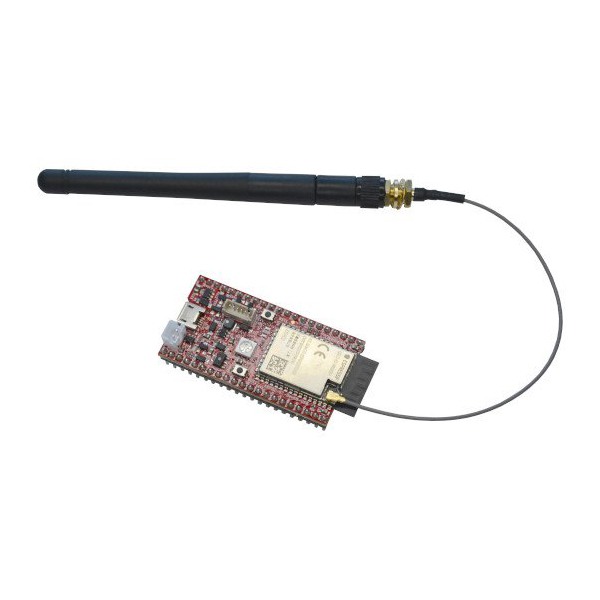

| Package contents | 1x ESP32-S2-DevKit-Lipo-EA 1x uFL to RP-SMA adapter 1x RP-SMA antenna |
