Olimex ESP32-S2-WROVER-DevKit-Lipo

Availability: Directly available from warehouse in Eindhoven
SKU: 005119

Based on 0 review(s) - Write a review

€9.75

Ex Tax: €8.06

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

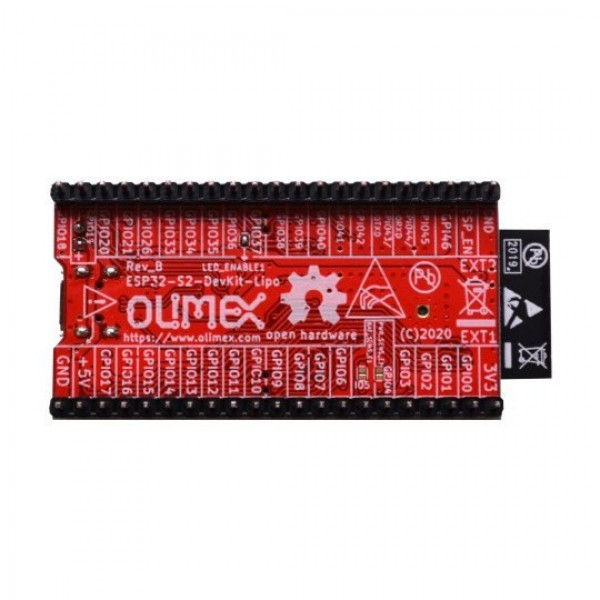

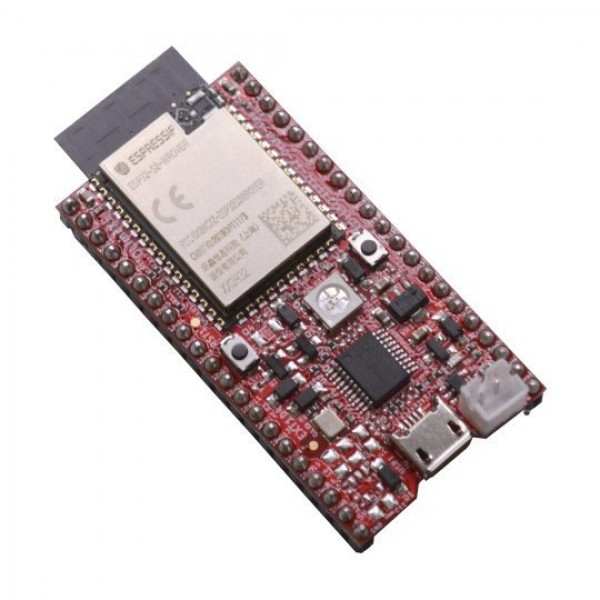

This development board is based on the ESP32-S2-WROVER and is easy to program. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

See the following page for more information: GitHub

Please login or register to review

Reviews Over Olimex ESP32-S2-WROVER-DevKit-Lipo

Average Rating:

This product has 0 review(s) in total.

Tags: Olimex ESP32-S2-WROVER-DevKit-Lipo , OL-ESP32-S2-WROVER-DEVKIT-LIPO , With Wi-Fi

Specifications

General
Brand	Olimex
Manufacturer model/SKU	ESP32-S2-WROVER-DevKit-Lipo
Model revision	B1
Norm conformity	RoHS
Features	Battery charger Microcontroller Programmable button(s) Digital LED(s)
General physical appearance
Main color	Red
Weight [g]	11
Dimension X [mm]	60
Dimension Y [mm]	28
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S2
Maximum clock frequency [MHz]	240
Number of cores	1
Internal memory
SRAM [KB]	320
PSRAM [MB]	2
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC DAC GPIO USB CDC
Number of IO-pins	37
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	20
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH340T
Wireless communication
Interface(s)	Wi-Fi
Wi-Fi chip/SoC	ESP32-S2
Wi-Fi frequency [GHz]	2.4
LED
LED (driver) chip	WS2812S
LED color	RGB
Battery circuit
Battery charger chip/SoC	BL4054B
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	455
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Pin header male (2.54mm) Micro USB female
IO-connector(s)	Pin header male (2.54mm) Micro USB female
Battery connector(s)	JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x ESP32-S2-WROVER-DevKit-Lipo
