Olimex ESP32-PoE-ISO

Availability: Directly available from warehouse in Eindhoven
SKU: 005265

Based on 0 review(s) - Write a review

€30.20

Ex Tax: €24.96

10 or more €29.75

20 or more €29.25

50 or more €28.75

100 or more €28.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

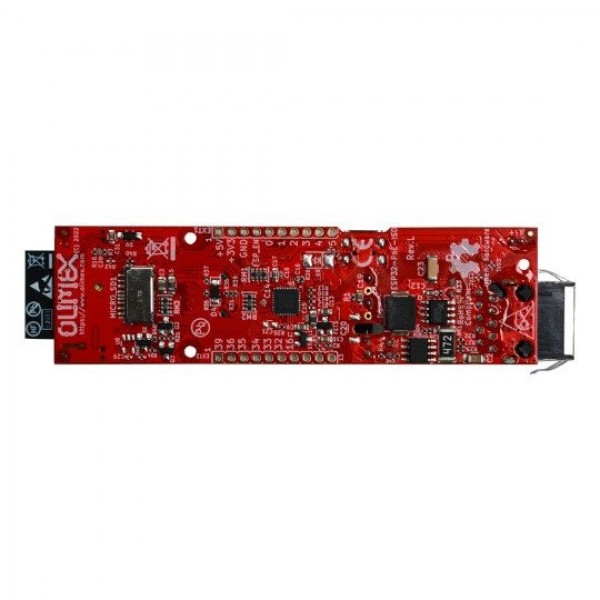

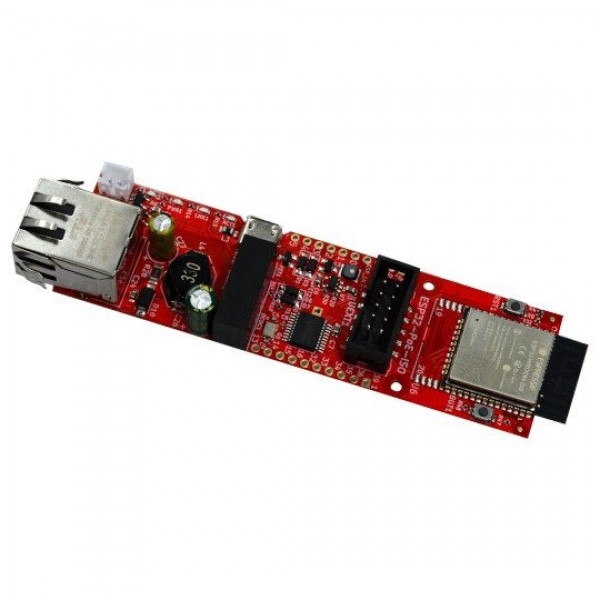

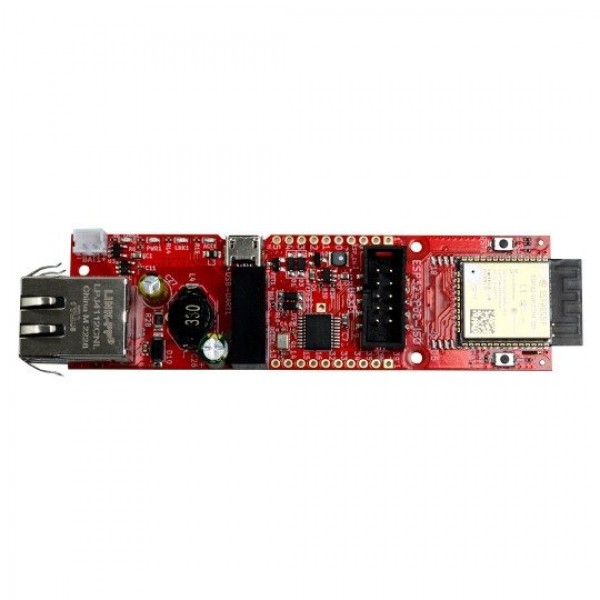

A development board from Olimex based on ESP32-WROOM. With the built-in Wi-Fi, Bluetooth and Ethernet PoE interface, this board is ideal for IoT applications. The USB to serial converter makes it easy to program, also like an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included). This board also supports Li-ion/Li-Po power supply and charging.

See the following page for more information: GitHub

Please login or register to review

Reviews Over Olimex ESP32-PoE-ISO

Average Rating:

This product has 0 review(s) in total.

Tags: Olimex ESP32-PoE-ISO , OL-ESP32-POE-ISO , With Bluetooth

Specifications

General
Brand	Olimex
Manufacturer model/SKU	ESP32-POE-ISO
Model revision	M
Norm conformity	RoHS
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	70
Features	Battery charger Microcontroller SD-card adapter PoE Programmable button(s)
General physical appearance
Main color	Red
Weight [g]	29
Dimension X [mm]	98
Dimension Y [mm]	28
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5 (via Micro USB/5V pin) 37 (via RJ45)
Maximum supply voltage [V DC]	57 (via RJ45) 5 (via Micro USB/5V pin)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO Ethernet USB CDC
Number of IO-pins	16
Maximum available hardware PWM channels	12
Maximum available analog input pins (ADC)	12
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH340X (Rev M and newer) CH340T (Rev L and older)
Ethernet chip/SoC	LAN8710A
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Voltage converter
Chip/SoC	TX4138 (in combination with TPS237X and F0505S-2WR2)
Voltage converter type	Buck (PoE)
Conversion	DC-DC
Isolated	Yes
Output voltage type	Fixed
Minimum input voltage [V DC]	37
Maximum input voltage [V DC]	57
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	0.2
Maximum output power [W]	1 (via 5V pin)
Safety features	Short circuit Under voltage (input) Overcurrent (output) Temperature
Battery circuit
Battery charger chip/SoC	TP4054 (Rev M and newer) BL4054B (Rev L and older)
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	100
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Micro USB female RJ45 female
IO-connector(s)	Pin header male (2.54mm) Through hole solder pin(s) (2.54mm) Micro USB female RJ45 female
Battery connector(s)	JST-PH (compatible) male
Input voltage connector(s)	RJ45 female
Output voltage connector(s)	Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x ESP32-POE-ISO 1x Pinheaders male
