Olimex ESP32-C3-DevKit-Lipo

Olimex ESP32-C3-DevKit-Lipo
Olimex ESP32-C3-DevKit-Lipo
Olimex ESP32-C3-DevKit-Lipo
New
Olimex ESP32-C3-DevKit-Lipo
Olimex ESP32-C3-DevKit-Lipo
Olimex ESP32-C3-DevKit-Lipo
Olimex ESP32-C3-DevKit-Lipo
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007945
Based on 0 review(s) - Write a review
€7.75
Ex Tax: €6.41
Add to Cart
Add to wishlist

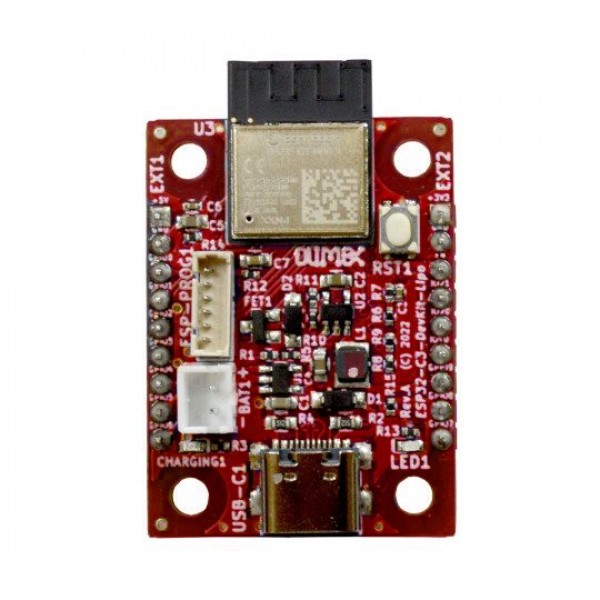

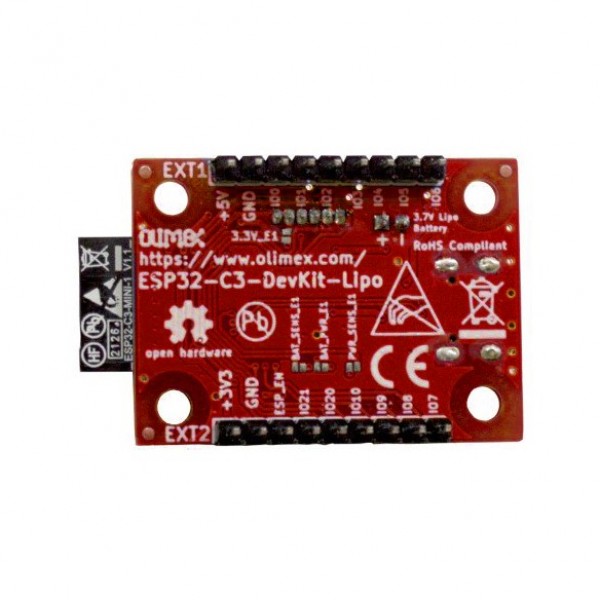

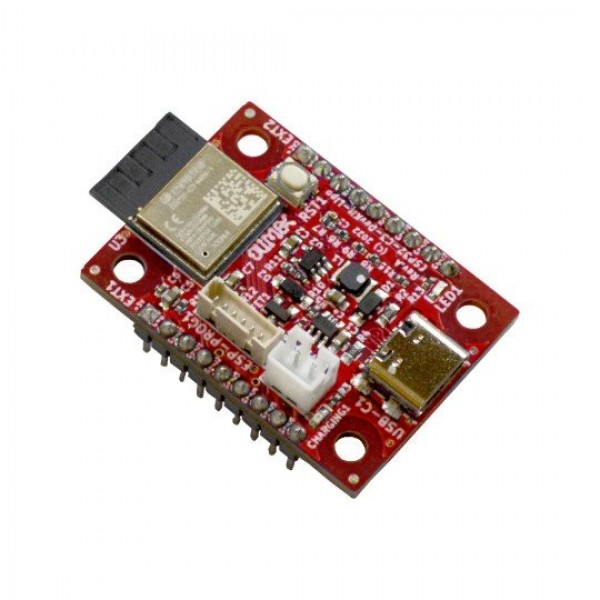

A development board from Olimex based on a ESP32-C3 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a battery connector where a Li-Po/Li-ion battery (not included) can be connected, which can also be charged via the board.

See the following page for more information: GitHub

Please login or register to review

Reviews Over Olimex ESP32-C3-DevKit-Lipo

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , Olimex ESP32-C3-DevKit-Lipo , 007945 , Olimex , ESP32-C3-DevKit-Lipo , Battery charger , Microcontroller (MCU) , I2C , I2S , SPI , UART , PWM , ADC , GPIO , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand Olimex
Manufacturer model/SKU ESP32-C3-DevKit-Lipo
Model revision C
Norm conformity RoHS
Features Battery charger
Microcontroller (MCU)
General physical appearance
Main color Red
Weight [g] 8
Dimension X [mm] 38
Dimension Y [mm] 28
Mounting options Pin headers
Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-C3
Maximum clock frequency [MHz] 160
Number of cores 1
Internal memory
SRAM [KB] 400
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 0, 1, 2, 3, 4, 6, 7, 8, 9, 10, 20, 21
Number of IO-pins 12
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 5
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-C3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Battery circuit
Battery charger chip/SoC TP4054
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 100
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Pin header male (2.54mm)
IO-connector(s) USB-C female
Pin header male (2.54mm)
Battery connector(s) JST-PH (compatible) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x ESP32-C3-DevKit-Lipo
